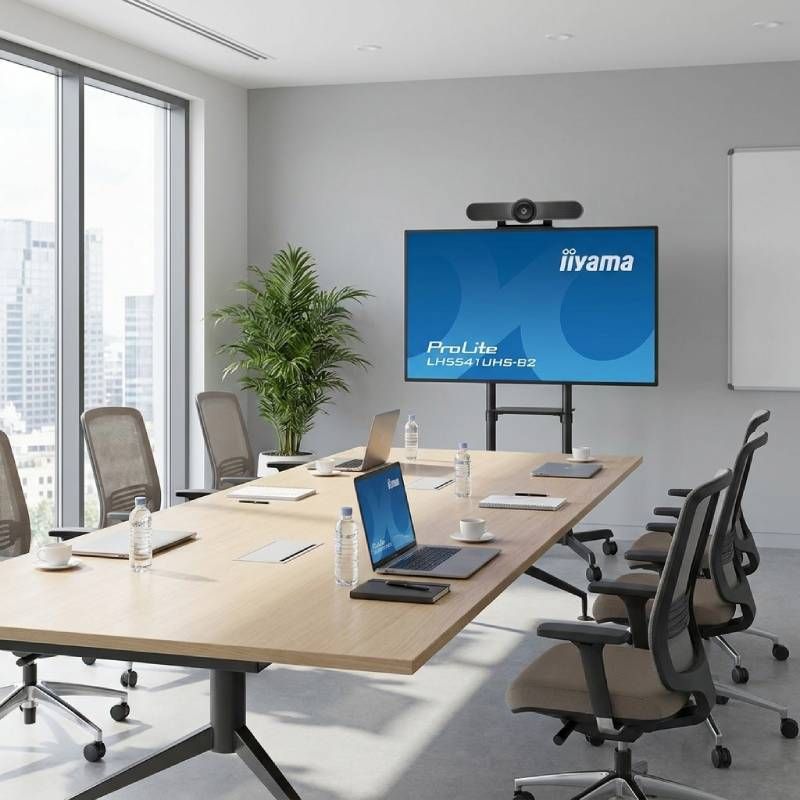

Logitech Iiyama Mobile Meeting Room Bundle
Internal ref: LOMEETUP55SP
Complete mobile video conferencing bundle with 55-inch 4K display, Logitech MeetUp, TV trolley and dedicated camera mount.
Key features
Logitech MeetUp
- Super-wide 120° field of view
- Ultra HD 4K image sensor
Logitech TV Mount
- TV mounting part for Logitech MeetUp Webcam
- Secure fastening
Neomounts NS-M1250BLACK TV Trolley 37-70''
- Maximum weight capacity: Supports up to 70 kg for stability.
- Size compatibility: Fits screens from 37'' to 70'' for versatile use.
iiyama ProLite LH5541UHS-B2
In the box
- 1 x Logitech MeetUp Camera
- 1 x Remote control
- 1 x 5m USB 2.0 cable
- 1 x Power adapter
- 1 x Wall mounting kit
- 1 x TV mount
- 1 x Mounting accessories
1 x Neomounts NS-M1250BLACK TV Trolley 37-70''
- 1 x iiyama ProLite 55'' screen
- 1 x Power cable
- 1 x HDMI cable
- 1 x RS-232C cable
- 1 x Remote control (with batteries)
- User Documentation
Product description
- Logitech MeetUp
- Logitech TV Mount
- Neomounts NS-M1250BLACK TV Trolley 37-70''
- iiyama ProLite LH5541UHS-B2
Suitable for Huddle spaces and small conference rooms
Extraordinary visual capabilities
The Logitech MeetUp 4K is designed for small conference and huddle rooms, with an ultra-wide 120° field of view you can be sure everyone will be seen.
Also using RightSight™ computer vision, the Logitech MeetUp conference automatically adjusts camera position and zoom to find and frame people in the room. Unlike voice tracking systems that jump from person to person, RightSight frames everyone in the conversation for a more comfortable and collaborative conferencing experience, even at wide angles.
The Logitech Meetup conference camera also features a x5 Zoom. This frames presenters perfectly, minimizing background distractions and ensuring the delivery of great image quality. You can zoom in on whiteboards and objects so remote participants can see what you see. Thanks to the Logitech Meetup camera's advanced 4K image sensor, video remains sharp and clear, even when you zoom in on the details.
Premium camera technology
The MeetUp Logitech features exquisitely engineered, premium camera optics that capture a wide field of view without distorting faces and furniture with a “fisheye” effect. Faces look natural, whiteboard writing remains legible, and straight lines stay straight.
Outstanding audio quality
With Full-Duplex & Advanced Beamforming Front-of-room alignment of voice and video is just the first step to natural conversations. RightSound™ technologies include a beamforming mic array that captures speech, while auto-leveling louder and software voices and suppressing noise.
Extend your audio range
The Logitech Expansion Mic for the Logitech MeetUp video conferencing system provides greater flexibility in huddle rooms. The camera angles and view have been thought for meeting spaces. To extend the already impressive 4m range you can add an expansion that allows you to increase that range up to 5 meters. So, whether people are seated at a table, against the wall, or walking around the room, the Expansion Mic for Logitech MeetUp means everyone will be heard.
Bluetooth speakerphone
If you have already dialed into a meeting on your smartphone, pair the Logitech MeetUp bar with your Bluetooth device to enjoy outstanding audio clarity, and volume. A range that handheld devices can’t match.
Helping you save space
Mounted under your display like a soundbar, the Logitech MeetUp software takes the conference cam off the table reducing messy cabling. The Logitech Meetup 4K conference cam maximizes your usable space in your Huddle or small meeting room space.
With the optional Table Stand, Wall Mount, or TV Mount you can place the unit wherever you require. By attaching the optional VESA mounting points behind the display, the TV Mount for Logitech MeetUp lets you position it above or below the display without drilling new holes.
Take control
When you need to adjust the volume, mute the microphone, or take control of the camera position. The Logitech MeetUp’s remote control allows for reliable and discreet adjustments from anywhere in the room. You can even download the free Logi Remote app (available on iTunes) to control your Logitech MeetUp with an iPhone or iPad.
With Logitech Sync Device Management software you can also support the Logitech MeetUp in all of your rooms while minimizing site visits and trouble tickets—all from a simple browser-based interface.
Learn more about Logitech Sync
Dimensions
Main unit
- Height x Width x Depth: 4.1 in (104 mm) x 15.75 in (400 mm) x 3.35 in (85 mm)
- Weight: 2.3 lbs (1.04 kg)
Remote Control
- Height x Width x Depth:
- 3.25 in (83 mm) x 3.25 in (83 mm) x 0.375 in (10 mm)
Rightsense Technologies
RightLight:
- Low-light compensation
- Video noise reduction
- Low-light saturation optimization
RightSight:
- Human figure detection
- Auto-frame participants at the meeting start
- Auto-frame participants on-demand
- Auto-reframe when participants enter, leave, or change positions
RightSound:
- Machine learning AI trained to distinguish human speech from other sounds
- AEC (Acoustic Echo Cancellation)
- VAD (Voice Activity Detector)
- Background noise suppression
- Auto-level loud and soft voices
- Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion
- Anti-vibration enclosure
Compatibility:
- Windows® 7, Windows 8.1, or Windows 10
- macOS® 10.10 or higher
- USB 2.0 port (USB 3.0 port and cable required for 4K video)
- Plug-and-play USB connectivity
- Certified for Skype™ for Business and ready for Microsoft Teams
- Zoom™ Certified
- Fuze™ Certified
- Certified for Google Hangouts Meet Hardware
- Microsoft Cortana®
- Cisco Jabber®
- Compatible with BlueJeans, BroadSoft™, GoToMeeting™, Vidyo™, and other video conferencing, recording, and broadcasting applications that support USB cameras
Technical Specifications:
Camera:
- Custom Logitech lens with 5x HD zoom and motorized pan (+/- 25°) and tilt (+/- 15°)
- Field of view: Diagonal: 120°, Horizontal: 113°, Vertical: 80.7°
- Total Room Coverage (field of view + pan and tilt): 163° wide x 110° tall
- 3 camera position presets
- RightSight auto-framing (requires Windows 10 64-bit; macOS coming soon)
- Video performance:
- 4K Ultra HD video calling (up to 3840 x 2160 pixels @ 30 fps with customer-supplied USB 3.0 cable)
- 1080p Full HD video calling (up to 1920 x 1080 pixels @ 30 fps)
- 720p HD video calling (up to 1280 x 720 pixels @ 30 fps)
Microphone:
- Pickup Range - MeetUp: 4 meters (13.1 feet)
- With optional Expansion: 5 meters (16.4 feet)
- Sensitivity: -27dB
- Microphone frequency response: 90Hz – 16kHz for full voice reproduction and high intelligibility without noise
- Beamforming performance: Factory-paired, very low distortion broadside beamforming algorithm steers the pickup range directly at the speaker for the best voice pickup and noise reduction
- AEC (Acoustic echo cancellation)
- VAD (Voice activity detector)
- Background noise suppression
- 32 kHz sampling rate
- Recommended # of participants: 6
- Recommended # of participants with expansion mic: 8
Speaker:
- Volume adjustable to 95 dB SPL at 1/2-meter peak
- Speaker sensitivity 86.5+/-3dB SPL at 1/2 meter
- Distortion: 200 Hz – 300Hz < 3%, 3000 Hz -10KHz < 1%
- Patent-pending anti-vibration enclosure improves voice clarity while limiting sound transmission to adjacent spaces
Additional Information:
- Main unit and accessory color - Black
- Bluetooth® wireless technology
- RF remote control
- Integrated table/wall mount; optional TV mount available
- Kensington security slot
Logitech TV Mount
With the Logitech Meetup LCD TV Mount you will get a secure hold of the Logitech MeetUp Webcam. You can place the camera on both the top and bottom of a flat monitor, and it can be attached to standard mounting points, available on most TVs and monitors.
In addition, the coupling above or below the monitor will allow a better videoconference experience. Discreet, stable and optimal design for small meeting rooms.
Key Features:
- TV mounting part for Logitech MeetUp Webcam
- Secure fastening
- Coupling above or below the monitor
- Dimensions: 400 mm x 83 mm x 16 mm
- Works with most flat screen TV
Neomounts NS-M1250BLACK TV Trolley 37-70''
The Neomounts NS-M1250BLACK is a mobile floor stand designed for flat screens up to 70 inches. This versatile trolley is perfect for when mounting options are limited, allowing for exceptional flexibility in display placement.
Experience the freedom of a mobile TV stand that allows you to share large screen content in multiple locations. The clever design means you can adjust the screen position for both standing and seated audiences easily. For events or presentations, this feature makes it adaptable to different environments.
Maximum weight capacity: The Neomounts stand can support up to 70 kg, providing a reliable base for your TV or display. Size compatibility: It caters to screens between 37'' and 70", making it suitable for a wide range of displays.
Effortless mobility: It is equipped with four durable wheels, making it easy to roll through doorways or over thresholds, providing flexibility in your setup. Two of these wheels feature a brake for added stability when needed.
Integrated cable management: The stand incorporates a smart cable management system that keeps wires hidden and organized, maintaining a clean and professional appearance.
Customisable positioning: The rotatable design allows for 90° rotation, helping you find the perfect viewing angle for your audience.
This trolley stand is particularly beneficial for educational settings, corporate environments, and event spaces. Imagine setting up your display in one room and quickly moving it to another without hassle. The Neomounts TV trolley is not only functional but also enhances the overall aesthetic of your space.
Key specifications:
| Screen Size Range | 37" to 70" (94 - 178 cm) |
| Max Weight Capacity | 70 kg |
| VESA Compatibility | 200 x 200 to 600 x 400 mm |
| Height | 1370 mm |
| Width | 920 mm |
| Depth | 700 mm |
| Material | Steel |
| Colour | Black |
iiyama ProLite LH5541UHS-B2
Slim design and 4K display – the monitor that fits any professional space!
The iiyama LH5541UHS-B2 is a 139 cm screen designed to deliver clear, detailed messages in professional settings. With its 4K-resolution IPS panel and brightness of 500 cd/m², it’s ideal for indoor use. And with two built-in 10W speakers, you can broadcast both video and audio content with ease!
Thanks to its extensive connectivity options (HDMI, USB, RS-232C, RJ45), it’s suitable for a wide range of uses – from displaying media content in retail spaces to sharing messages in schools or screen sharing in meeting rooms. The screen supports 24/7 continuous operation, ensuring maximum reliability.
Its built-in media player lets you play content directly from a USB stick or store it on the screen’s internal memory. Plus, with the included remote control, you can manage everything effortlessly from a distance.
Technical specifications:
- Screen size: 55''
- Panel type: IPS, 1% haze
- Native resolution: 4K UHD
- Brightness: 500 cd/m2
- Viewing angle: 178° horizontal / 178° vertical
- Response time (GTG): 8 ms
- 2 built-in 10W speakers
- Orientation: portrait and landscape
- Continuous use: 24/7
- Media player: plays photos, videos and audio content
- Content via USB stick or internal memory
- Internal power supply: AC 100–250V, 50/60Hz
- Power consumption: 139W (typical use); 0.5W (standby); 0.3W (off)
- Ports and interfaces: 1 x VGA input; 3 x HDMI inputs; 1 x mini-jack audio input; 1 x RS-232C control input; 1 x RJ45 (LAN) input; 1 x IR input; 1 x RCA audio output; 1 x RS-232C control output; 1 x IR output; 1 x USB port
- VESA mounting: 400 x 400 mm
- Dimensions and weight: 1237.5 x 710 x 55 mm / 14.3 kg
Files
Logitech MeetUp- Data Sheet (EN)
Logitech MeetUp - User Manual (EN)
iiyama ProLite LH5541UHS-B2 - Datasheet (EN)
Product Specs.
| Manufacturer part # | 960-001102 |
|---|---|
| EAN | 5099206072060 |
| Warranty | 2 years |
| By Sector | Manufacturing , Construction, Transportation & logistics, Hotels and restaurants, Public administrations, Education |
| Video Solution type | Videoconferencing Bar |
| Room Size | Small Meeting Room (4-6) |
| Connects to | With PC- Laptop |
| Compatible With | All Softphones / UC |
| Camera resolution | 4K |
| Camera field of view | 120° |
| Camera Features | Auto Framing and Tracking |
| AI-compatible | Yes |
| Other Features | Remote Control Included, Expansion Mics |
| Size | 400 x 104 x 85 mm |
| Manufacturer part # | 939-001498 |
|---|---|
| EAN | 0097855133250 |
| Warranty | 2 years |
| By Sector | Manufacturing , Hotels and restaurants |
| Accessory Type | Support |
| Is Accessory of | Conferencing |
| Lone worker protection | No |
| Manufacturer part # | NS-M1250BLACK |
|---|---|
| EAN | 8717371448066 |
| Warranty | 5 years |
| Accessory Type | Support |
| Is Accessory of | Screen |
| ATEX certified | Without ATEX certification |
| Lone worker protection | No |
| Manufacturer part # | LH5541UHS-B2 |
|---|---|
| EAN | 4948570123544 |
| Warranty | 3 years |
| By Sector | Retail, Corporate and Office |
| Use type | Meeting Room, Digital signage |
| Intended use | Indoor screen |
| Screen type | Flat Screen |
| Screen Technology | LED - LCD |
| Screen Orientation | Horizontal, Vertical |
| Screen Size | 55'' |
| Resolution | 4K |
| Operating hours | 24h per day |
| Brightness | 350 - 700 cd/m² |
| Other Features | Content Sharing, Remote Control Included, Embedded Content Manager |
| EPREL certification | 1868737 |
| Energy efficiency class | G |
