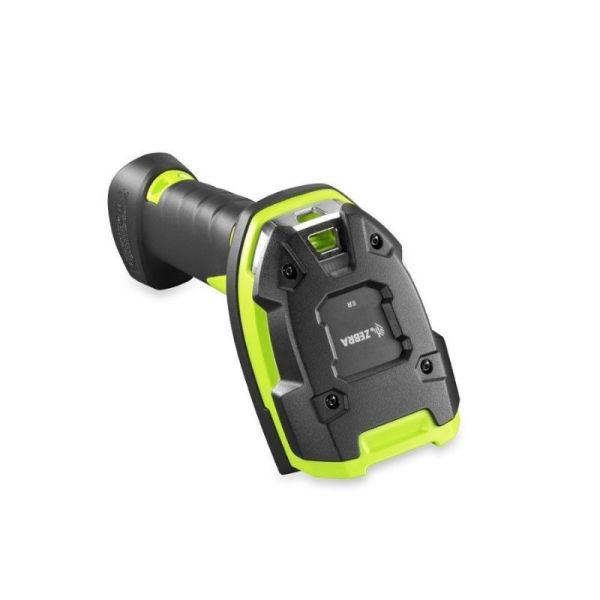

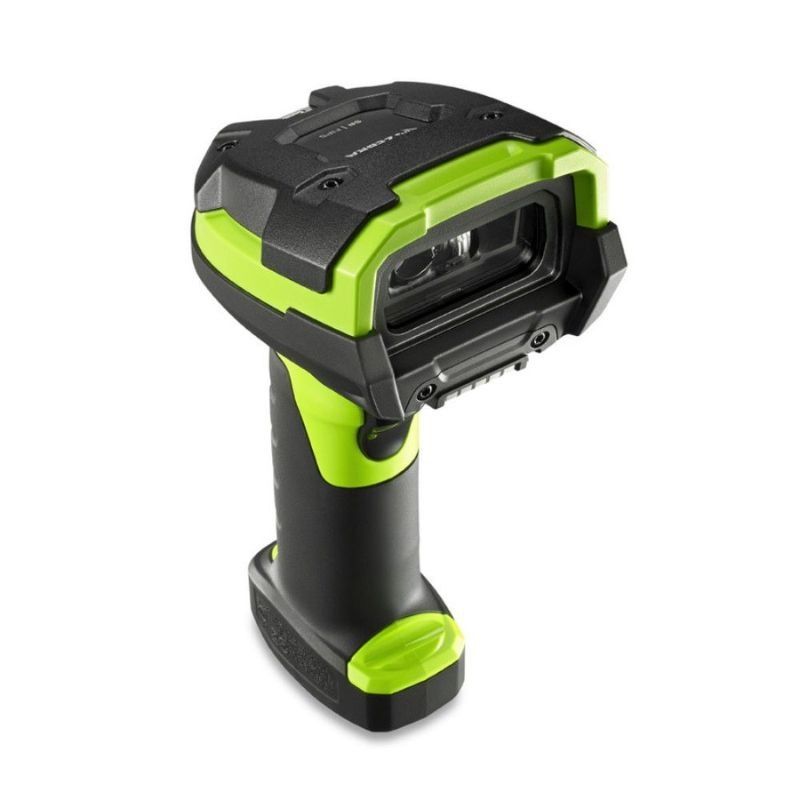

Zebra LI3608 ER 1D Industrial Scanner

Product description

Zebra LI3608 ER: Extremely robust 1D industrial scanner with a range of up to 17.1 m

The Zebra LI3608 ER is a corded industrial barcode scanner designed for the reliable capture of 1D barcodes over both short and long distances. With a maximum reading range of 17.1 metres, the device is particularly suitable for warehouses with high racking, logistics centres and industrial production environments.

The combination of an extended-range linear imager, IP65/IP68 protection and high drop resistance enables daily use in demanding conditions. The scanner reads printed and digital 1D barcodes and supports businesses with stock control, order picking and goods tracking.

Capture 1D barcodes from a distance of up to 17.1 metres

The Extended-Range scanning technology enables the capture of suitable 1D barcodes from a distance of just 5.1 cm up to 17.1 m. This enables staff to read both labels in close proximity and barcodes on high storage locations without having to switch between different scanners.

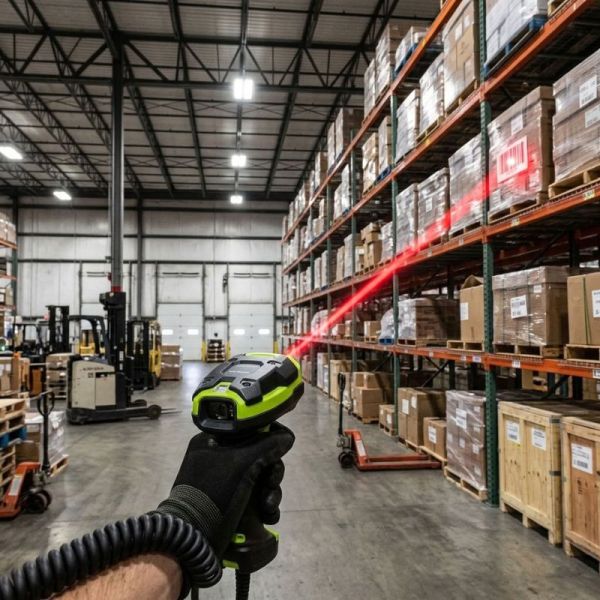

The long scanning range is particularly useful for order picking in high-bay warehouses. Staff can scan appropriately sized barcodes on distant shelves, pallets or storage containers without having to reach the goods directly.

The actual reading range depends on the barcode size, print quality, contrast and environmental conditions. The maximum range of 17.1 m does not apply to every barcode.

Reliable barcode capture even with damaged labels

The Zebra LI3608 ER uses a linear imager to scan 1D barcodes. It reads codes on paper labels and electronic displays and is also suitable for challenging barcode conditions.

Dirty, damaged, poorly printed or foil-covered barcodes can be reliably scanned. This reduces the need for repeated scanning attempts and supports the rapid processing of goods movements.

The scanner specialises in linear 1D barcodes. QR codes, Data Matrix and other 2D barcodes are not supported.

IP65/IP68 protection for demanding industrial conditions

The LI3608 ER has been developed for use in environments where conventional handheld scanners reach their limits. The IP65/IP68-rated housing offers comprehensive protection against dust and water.

The scanner withstands water jets and meets the relevant requirements for temporary immersion. This makes it suitable for workplaces with moisture, dust or changing environmental conditions.

The robust design supports use in production halls, storage areas, cold stores and outdoor areas. Even in challenging temperatures and high humidity, the device remains suitable for industrial workflows.

High resistance to drops and impacts

The Zebra LI3608 ER is designed to withstand intense mechanical stress. According to the manufacturer, the device can survive drops from up to 3 metres onto concrete and has been tested for 7,500 rollovers.

This durability is particularly important in warehouse and production environments, where scanners are frequently used, transported or accidentally dropped.

The robust construction helps to reduce damage and associated operational downtime. This supports long-term use in professional industrial applications.

Wired connection for continuous operation

The LI3608 ER operates via a cable connection and is therefore suitable for fixed scanning workstations where a continuous connection to the host system is required. Unlike the wireless LI3678 ER model, it requires neither a battery nor a charging station.

This eliminates the need for charging times and battery management. The device can be integrated into compatible computer and industrial systems using a suitable connection cable.

The wired version is particularly suitable for goods-in, packing stations, dispatch areas and production workstations, where large volumes of barcodes are regularly processed.

Ergonomic operation and clear scan confirmation

The scanner is designed for repeated scanning operations during long shifts. Its handy design and easily accessible trigger button facilitate intuitive operation.

The visual, audible and haptic feedback makes it easier to verify successful scans. Particularly in noisy industrial environments, the various confirmation signals help to clearly identify scanned barcodes.

Extended-range technology also enables barcodes at varying distances to be scanned with a single device, thereby reducing the need for unnecessary device changes.

Applications and compatibility

The Zebra LI3608 ER industrial barcode scanner is particularly suitable for warehousing, transport, logistics, manufacturing and industrial inventory management. Its long reading range is ideal for identifying pallets, order picking in high-bay warehouses and capturing storage location labels.

Other typical applications include goods receipt, dispatch checks, stock-taking and material tracking. Thanks to its robust construction, the scanner can also be used in cold stores and other demanding working environments.

The wired scanner can be connected to compatible host systems using suitable interface cables. The choice of cable depends on the specific computer, till system or industrial workstation.

Technical specifications:
