Hikvision DS-D5C86RB/B2L 86 Inch 4K Touchscreen

Product description

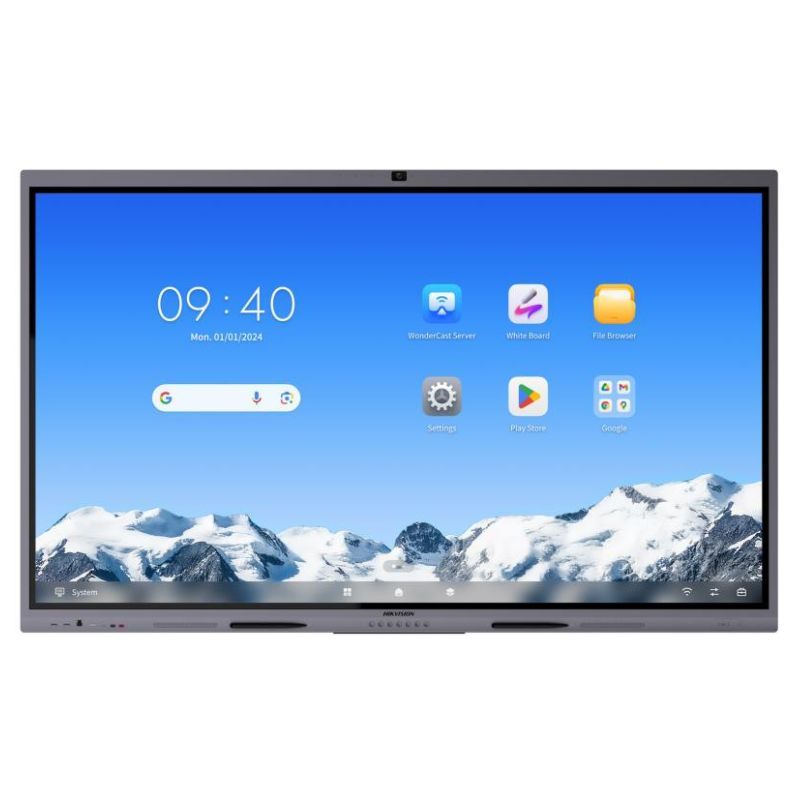

Hikvision DS-D5C86RB/B2L: 86-inch 4K interactive display for large-scale collaboration

The Hikvision DS-D5C86RB/B2L is an 86-inch 4K interactive flat panel display designed for collaborative meetings, training sessions and interactive teaching. Its large touchscreen brings presentations, digital whiteboarding and video communication together in one professional display.

Combining 50-point multi-touch, an integrated 4K camera, eight microphones and wireless screen sharing, it enables teams to interact with information directly on screen. The built-in Android system supports everyday collaboration, while optional Windows OPS expansion provides additional flexibility for organisations using Windows-based applications.

86-inch 4K UHD display for detailed visual communication

Present complex documents, diagrams and multimedia content on a large 86-inch 4K UHD screen with 3840 x 2160 resolution. Its generous viewing area makes it easier for participants to follow shared information in meeting rooms, training facilities and classrooms.

The VA LCD panel uses DLED backlighting and delivers 480 cd/m² typical brightness, a 5000:1 static contrast ratio and 178-degree viewing angles. A 60 Hz refresh rate and 5 ms display response time support smooth presentation of everyday business content.

The screen features anti-glare and anti-fingerprint tempered glass, helping reduce reflections and visible marks during frequent touchscreen interaction. Its 9H pencil hardness and zero-lamination construction provide additional durability for shared professional environments.

50-point multi-touch for collaborative writing and annotation

Enable multiple participants to work directly on screen with up to 50 simultaneous touch points. The infrared touchscreen supports group annotation, drawing and interaction with digital content during workshops, presentations and lessons.

With a touch response time of 2 ms or less and specified touch accuracy of ±0.5 mm across at least 90% of the active area, the display offers responsive interaction for writing and collaborative activities.

The integrated digital whiteboard supports handwriting recognition, shape recognition and document insertion. Users can develop ideas, highlight important information and organise content without needing a separate whiteboarding device.

Integrated 4K camera for professional video communication

Connect on-site and remote participants using the display's built-in camera supporting up to 4K video resolution. The camera provides 48 MP photo capture and an 8 MP video specification.

Its 93.4-degree diagonal field of view helps capture participants across the meeting space, while integrated image processing includes face detection, automatic white balance and digital noise reduction.

Intelligent camera switching supports operation between Android, an optional OPS computer and an external PC. Hikvision recommends running video conferencing software in a Windows environment, available through an optional OPS configuration.

Eight-microphone array and 65 W integrated audio

Support clear speech capture during meetings and training sessions with an eight-element omnidirectional microphone array. The manufacturer specifies a voice pickup distance of up to 12 metres, allowing participants to speak from different positions within the room.

Integrated audio processing includes intelligent noise cancellation, echo reduction, automatic gain control, sound source localisation and digital beamforming. These technologies help improve speech intelligibility during video meetings and group discussions.

The display incorporates two 20 W speakers and an additional 25 W speaker, providing 65 W of total rated speaker output for presentations, multimedia playback and meeting audio.

Wireless screen sharing from up to nine devices

Make meetings more collaborative with WonderCast wireless screen sharing. The integrated software supports simultaneous screen casting from up to nine devices, allowing several contributors to share content during the same session.

The display includes dual-band Wi-Fi 6 on 2.4 GHz and 5 GHz frequencies, together with Bluetooth 5.4 for compatible wireless connections.

Two Gigabit Ethernet ports and an integrated network switching chip offer additional wired networking options, supporting flexible installation in connected professional environments.

Android platform with integrated AI tools

The detailed manufacturer specifications list Android 16.0, 8 GB RAM and 128 GB internal storage. Optional configurations provide 16 GB RAM and 256 GB storage, with support for up to 16 GB virtual RAM.

The eight-core processor combines four Cortex-A76 cores running at 2.4 GHz with four Cortex-A55 cores running at 1.8 GHz. A 6 TOPS neural processing unit supports the display's integrated AI functions.

Available tools include AI Assistant, AI Identify and AI Notes. Hikvision specifies a one-year free validity period with 6,000 minutes for AI Notes. Continued access beyond this allowance should be confirmed separately.

For organisations requiring Windows-based software, an optional OPS computer can extend the integrated Android environment. The Windows OPS module is not supplied as standard.

USB-C, HDMI and professional AV connectivity

Connect laptops, presentation sources and external computers through a comprehensive selection of interfaces. The display includes three HDMI 2.1 TMDS inputs, one HDMI output, VGA input and multiple USB connections.

Two full-function USB-C ports, positioned at the front and rear, support DisplayPort 1.2 input and up to 100 W combined power delivery. Compatible devices can use these connections for supported video, data and charging functions.

Additional interfaces include USB touch ports, analogue audio, SPDIF, RS232 and two Gigabit Ethernet ports. This connectivity supports integration with external computers and professional AV equipment.

Durable construction for professional environments

The display is specified for 16 hours of daily operation, seven days per week, making it suitable for scheduled use in offices, meeting facilities and educational environments.

Its all-in-one design combines tempered glass with intelligent thermal management. Built-in ambient light, temperature and humidity sensors provide additional environmental monitoring capabilities.

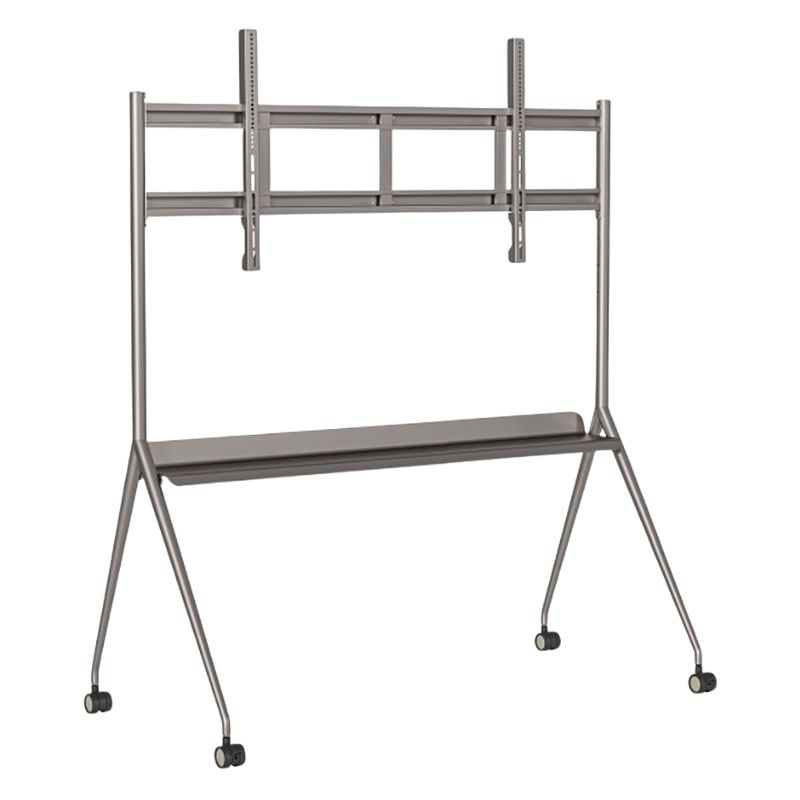

The display supports VESA 800 x 600 mm mounting and includes a wall mounting bracket. Front-facing controls and accessible connection ports help simplify everyday interaction in shared spaces.

Applications and compatibility for collaborative environments

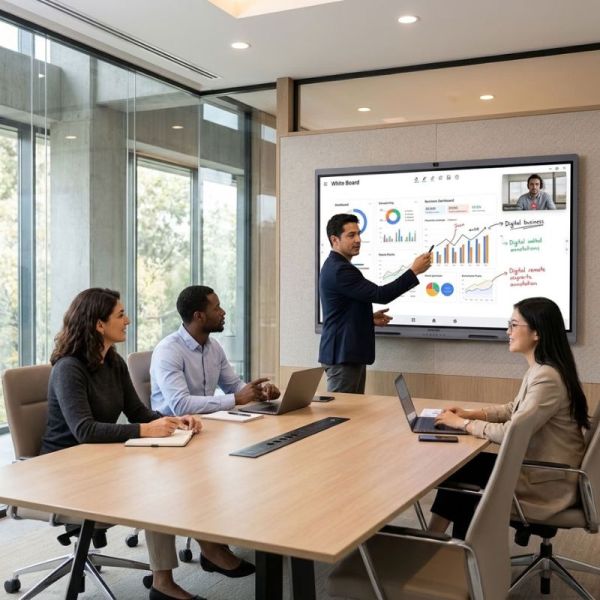

The Hikvision 86-inch interactive display is suitable for large meeting rooms, corporate training centres, classrooms and collaborative workspaces where multiple participants need to view and interact with shared content.

Its integrated camera, microphone array and speakers support video communication, while WonderCast enables wireless presentation from multiple devices. The digital whiteboard and 50-point touchscreen support interactive teaching, workshops and group planning.

The built-in Android system provides integrated collaboration tools, while optional Windows OPS expansion supports additional computing requirements. HDMI, USB-C, VGA and USB interfaces allow compatible external equipment to be connected. Compatibility with specific conferencing applications should be verified before deployment.

Technical specifications:
