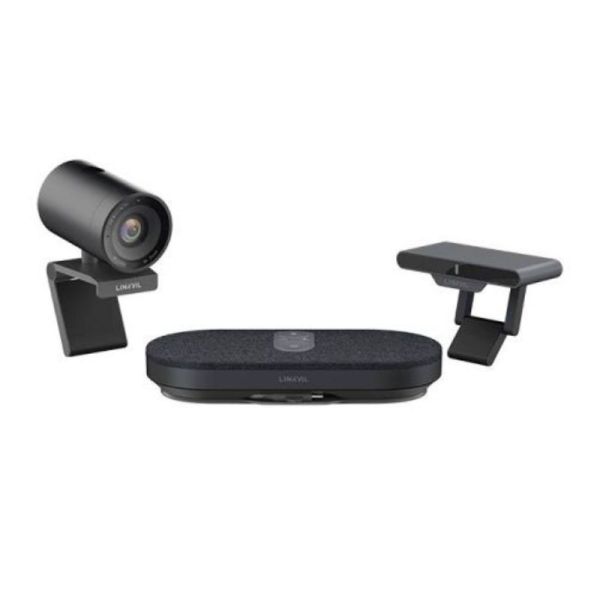

Fanvil A400 Room Cast CA400

Product description

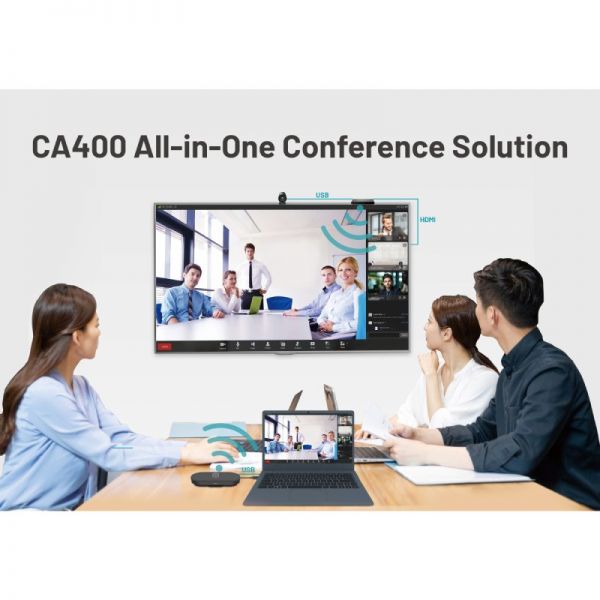

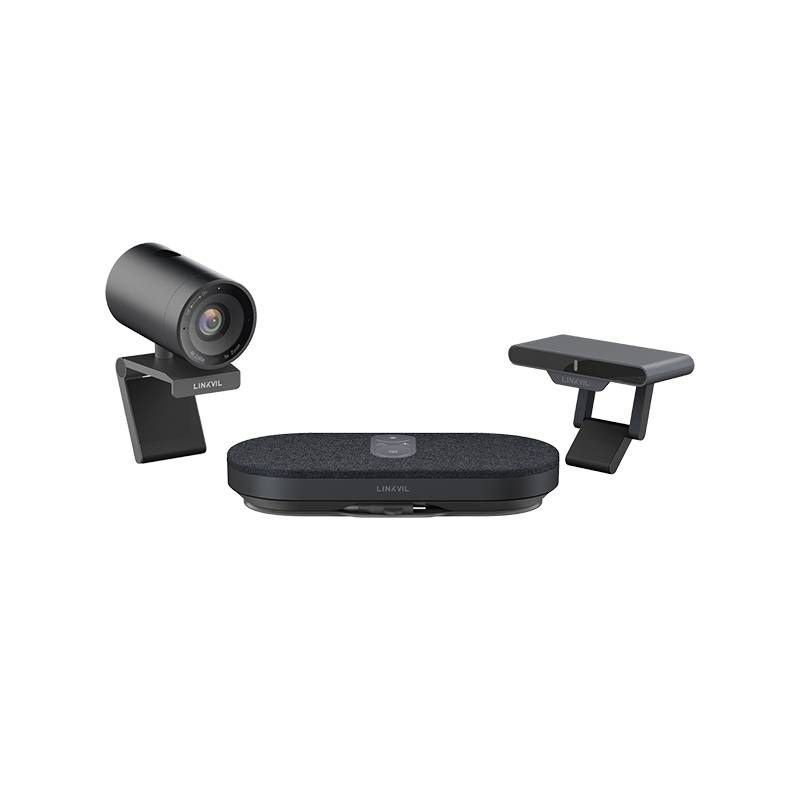

CA400 all-in-one conference solution

Designed for small and medium-sized conference rooms up to 32 square metres, the CA400 system consists of a unique MS10 speakerphone that supports wireless screen sharing, an RC10 receiver and a CM70 USB camera. The CA400 achieves far-field voice pick-up and delivers crystal clear HD sound. Participants can also broadcast wirelessly in 4K and access FHD video streaming.

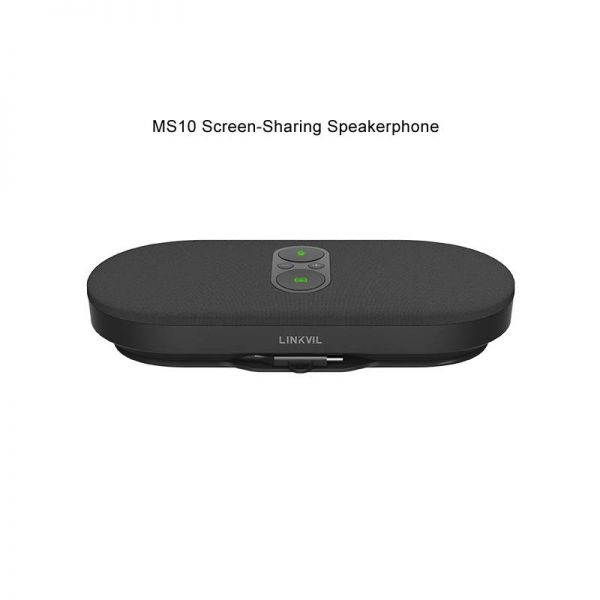

Speakerphone

The centrepiece of this solution is the MS10 speakerphone with 8 integrated MEMS microphones, which enables crystal-clear sound quality. Thanks to automatic noise and echo cancellation, background noise is effectively eliminated so that every participant can be heard clearly. The 360° recording ensures that all voices in the room are captured without anyone having to sit directly in front of the microphone.

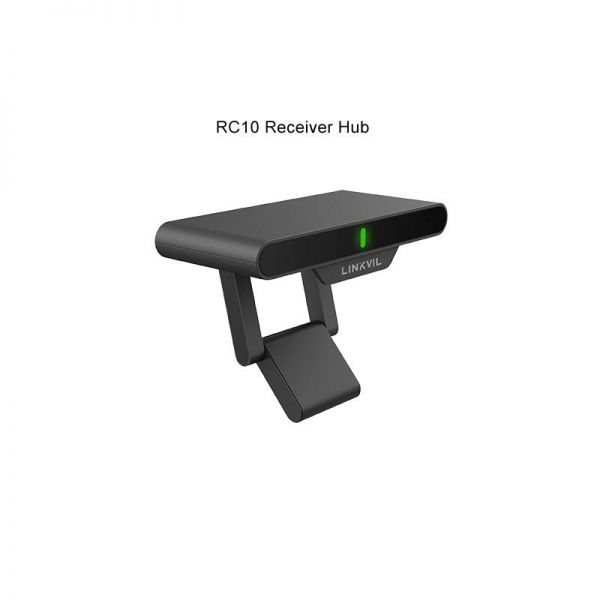

Receiver

The RC10 receiver with WI-FI offers a reliable wireless connection with a transmission distance of up to 10 metres. This allows participants to work flexibly in the room without being restricted by cables.

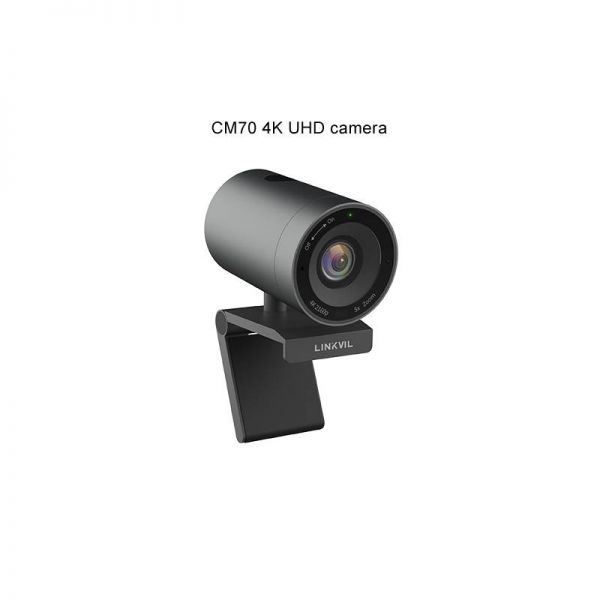

Camera

The CM70 USB camera with auto framing is another highlight of this conference solution. With a 5x digital zoom and a maximum resolution of 3840*2160p, it delivers razor-sharp images and enables dynamic adjustment of the image section to optimally showcase all participants. The integrated security cover for the camera lens also ensures data protection and privacy when the camera is not in use.

Key features:

Speakerphone:

• Built-in: 8 MEMS microphones for 360° recording
• Recording range: 4 metres
• Signal-to-noise ratio（SNR）: 64.5dB(A)
• Frequency: 20Hz-10KHz
• Automatic noise cancellation
• Acoustic echo cancellation
• Automatic gain control
• Speaker: 4Ω 3W
• Speaker size: 50mm

Receiver:

• Wireless transmission protocol: Fast UDP Internet connections
• Transmission distance: Up to 10M
• Frequency bands and maximum transmission power
• 5180-5320MHz (Wi-Fi 5GHz), Max 20dBm
• 5500-5700MHz (Wi-Fi 5GHz), Max. 20dBm
• Supported camera type: UVC camera
• Supported formats: H.264

USB camera:

• Resolution: 3840*2160 Px
• FOV: DFOV 118.5°/HFOV 109.9°/VFOV74.6
• Zoom：5x digital zoom
• Security protection: Manual camera lens cover
• Microphone type: 2 electret microphones
• Reception range: 4m
• Automatic noise cancellation
• Automatic gain control
