Hikvision DS-D5C75RB/B2L 75 Inch 4K Touchscreen

Product description

Hikvision DS-D5C75RB/B2L: 75-inch 4K interactive display for productive collaboration

The Hikvision DS-D5C75RB/B2L brings presentations, interactive teamwork and video communication together on a 75-inch 4K interactive touchscreen. Designed for professional meeting rooms, classrooms and training environments, it combines a large UHD display with integrated conferencing hardware and digital collaboration tools.

With 50-point multi-touch, an integrated 4K camera, eight microphones and wireless screen sharing, teams can present information, annotate documents and work together directly on screen. The built-in Android system supports everyday collaboration, while optional Windows OPS expansion offers additional computing flexibility.

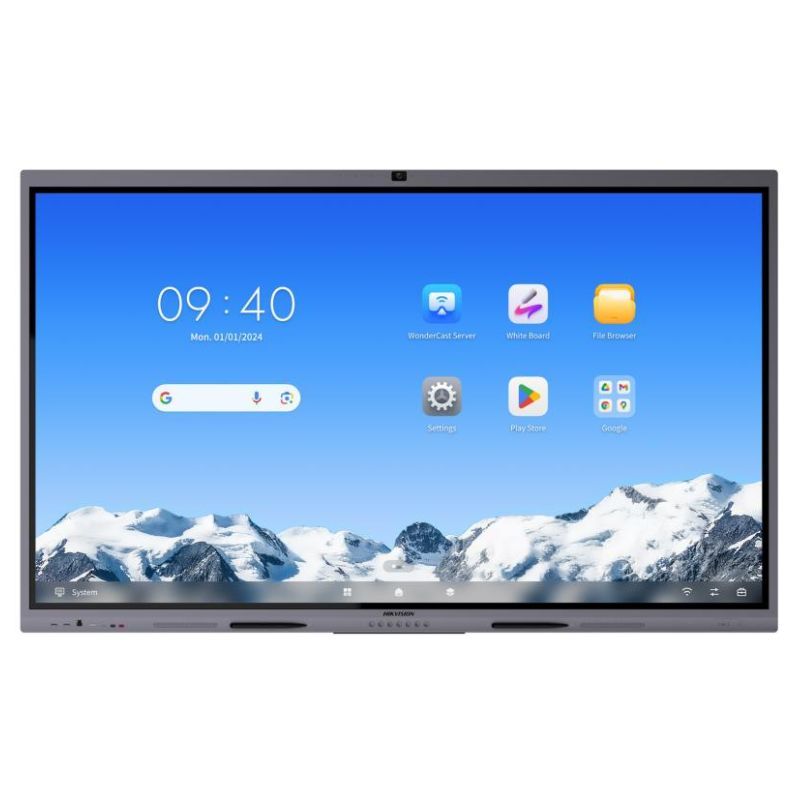

75-inch 4K UHD screen for clear presentations

Make documents, diagrams and multimedia content easier to follow with a 75-inch display offering 3840 x 2160 resolution. Its large viewing area provides space for detailed presentations, interactive lessons and shared business content.

The DLED-backlit VA panel delivers 540 cd/m² typical brightness, a 5000:1 static contrast ratio and 178-degree horizontal and vertical viewing angles. These specifications support consistent visibility across a meeting room or classroom.

The screen features anti-glare and anti-fingerprint glass to reduce distracting reflections and visible touch marks. Its tempered surface offers 9H pencil hardness, providing additional durability for frequent professional use.

50-point multi-touch for collaborative working

Allow several participants to interact with content simultaneously using up to 50 touch points. The infrared touchscreen supports writing, drawing and direct manipulation of on-screen information during meetings and lessons.

With a touch response time of 2 ms or less and touch accuracy of approximately ±0.5 mm across at least 90% of the active area, the panel is designed for responsive annotation and precise interaction.

The built-in digital whiteboard includes handwriting recognition, shape recognition and document insertion. Participants can develop ideas, highlight information and explain concepts without switching to a separate whiteboarding device.

Built-in 4K camera for video conferencing

Bring remote participants into discussions using the display's integrated camera with up to 4K video resolution. The camera offers 48 MP photo capture and an 8 MP video specification, together with a 93.4-degree diagonal field of view.

The camera supports intelligent switching between Android, an optional OPS computer and an external PC. This allows organisations to adapt the display to different conferencing and computing configurations.

For video conferencing applications, Hikvision recommends using the Windows environment through an optional OPS computer. The OPS module is not included as standard.

Eight microphones and powerful integrated audio

Capture speech during meetings and collaborative sessions with an eight-element omnidirectional microphone array. The specified voice pickup distance reaches up to 12 metres, helping participants communicate without relying on a separate tabletop microphone for basic meeting requirements.

Integrated audio processing includes intelligent noise reduction, echo cancellation, automatic gain control and digital beamforming. These technologies help improve speech capture and reduce unwanted background interference.

The built-in speaker system combines two 20 W speakers and one 25 W speaker, providing 65 W of total rated audio output for presentations, video communication and multimedia playback.

Wireless screen sharing for up to nine devices

Share presentations and documents without repeatedly changing cables. The integrated WonderCast software supports simultaneous wireless screen casting from up to nine devices, making it easier for multiple contributors to present information during a session.

The display includes dual-band Wi-Fi 6 operating on 2.4 GHz and 5 GHz frequencies, together with Bluetooth 5.4 for supported wireless connectivity.

Two Gigabit Ethernet ports and an integrated network switching chip provide additional wired networking flexibility, helping reduce the need for separate network equipment in compatible installations.

Android system and integrated AI collaboration tools

The detailed manufacturer specifications list Android 16.0 with 8 GB RAM and 128 GB internal storage. Optional configurations offer 16 GB RAM and 256 GB storage, while virtual RAM expansion supports up to 16 GB.

An eight-core processor combines four Cortex-A76 cores running at 2.4 GHz with four Cortex-A55 cores at 1.8 GHz. The system also includes a 6 TOPS neural processing unit for supported AI functions.

Integrated tools include AI Assistant, AI Identify and AI Notes. Hikvision specifies a one-year free validity period with 6,000 minutes for AI Notes. Availability beyond this allowance should be checked before deployment.

The integrated whiteboard supports handwriting recognition, shape recognition and document insertion, helping users organise information and collaborate directly on the display.

Professional connectivity with USB-C and HDMI

Connect laptops, external computers and presentation sources through a wide range of interfaces. The display includes three HDMI 2.1 TMDS inputs, one HDMI output, VGA input and multiple USB connections.

Two full-function USB-C ports, located at the front and rear, support DisplayPort 1.2 input and up to 100 W total power delivery. Compatible devices can therefore use USB-C for supported video, data and charging functions.

Additional interfaces include USB touch connections, Gigabit Ethernet, analogue audio, SPDIF and RS232. These connections provide flexibility for professional AV installations and external computing equipment.

Designed for regular use in professional environments

The display is specified for 16 hours of daily operation, seven days per week, making it suitable for scheduled use in workplaces and educational environments.

Its durable all-in-one construction combines tempered safety glass with intelligent thermal management. Built-in ambient light, temperature and humidity sensors provide additional environmental monitoring capabilities.

The panel supports VESA 800 x 400 mm mounting and includes a wall mounting bracket. Front-facing controls and connections provide convenient access for everyday users.

Applications and compatibility for meeting rooms and classrooms

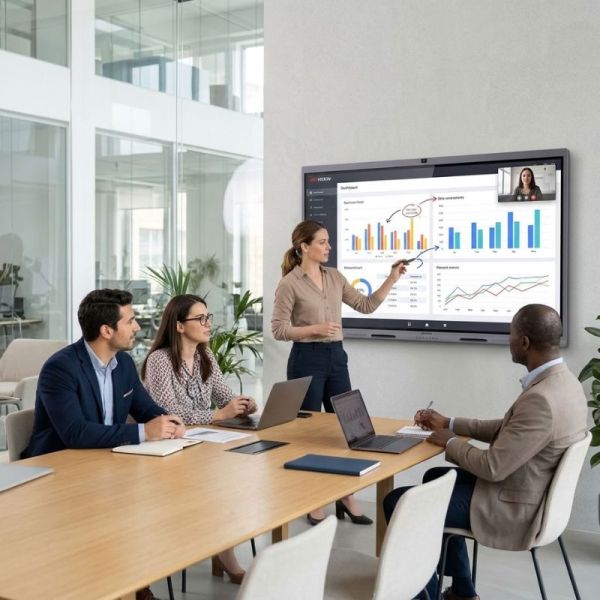

The Hikvision 75-inch interactive display is designed for corporate meeting rooms, training facilities, educational classrooms and collaborative workspaces requiring large-format visual communication.

Its integrated camera, microphones and speakers support video meeting configurations, while WonderCast enables multiple participants to share content wirelessly. The touchscreen and whiteboard tools are useful for workshops, teaching and group planning activities.

The built-in Android platform provides integrated functionality, while an optional Windows OPS computer enables Windows-based workflows. External computers and presentation devices can connect through HDMI, USB-C and other supported interfaces. Compatibility with specific third-party conferencing applications should be confirmed before installation.
