Hikvision DS-D5C65RB/B2L 65 Inch 4K Touchscreen

Product description

Hikvision DS-D5C65RB/B2L: 65-inch 4K interactive display for connected collaboration

The Hikvision DS-D5C65RB/B2L is a 65-inch interactive flat panel display designed to bring presentations, touchscreen collaboration and video communication together in one device. Combining 4K UHD picture quality, 50-point multi-touch technology, an integrated camera and wireless screen sharing, it provides a central workspace for business meetings, training sessions and interactive teaching.

With built-in microphones, speakers and digital whiteboarding tools, the display supports collaborative activities without requiring separate equipment for every function. Its Android platform and optional Windows OPS expansion provide flexibility for different working environments.

65-inch 4K UHD display with anti-glare protection

Present detailed documents, diagrams and multimedia content on a 65-inch 4K UHD screen with 3840 x 2160 resolution. The DLED-backlit VA panel delivers 540 cd/m² typical brightness, a 5000:1 static contrast ratio and wide 178-degree viewing angles.

The anti-glare and anti-fingerprint glass helps reduce distracting reflections and visible marks during frequent touchscreen use. Its tempered surface, rated at 9H pencil hardness, provides additional durability for shared professional environments.

A 60 Hz refresh rate and 5 ms display response time support smooth visual presentation, while the 16:9 format accommodates common business presentation and video content.

50-point multi-touch for interactive teamwork

Turn presentations into collaborative working sessions with up to 50 simultaneous touch points. The infrared touchscreen allows several participants to write, draw and interact with content on the same display.

With a touch response time of no more than 2 ms and touch accuracy of approximately ±0.5 mm across at least 90% of the active area, the panel supports responsive writing and precise interaction.

The integrated digital whiteboard includes handwriting recognition, shape recognition and document insertion. Teams can develop ideas, annotate information and explain concepts directly on screen.

Integrated 4K camera for video meetings

The display incorporates a camera capable of recording video at up to 4K resolution, with 48 MP photo capture and 8 MP video specifications. Its 93.4-degree diagonal field of view helps accommodate multiple participants within the camera image.

Intelligent camera switching supports operation across the Android system, an optional OPS computer and connected external PCs. This provides additional flexibility when using different computing environments.

For organisations using Windows-based conferencing applications, the display supports an optional Windows OPS configuration. The manufacturer recommends running video conferencing software on Windows.

Eight-microphone array and integrated speakers

Support clear meeting communication with an eight-element omnidirectional microphone array offering a specified voice pickup distance of up to 12 metres.

Integrated audio processing includes intelligent noise cancellation, echo reduction, automatic gain control, digital beamforming and sound source localisation. These functions help improve speech capture during discussions and remote meetings.

The built-in audio system combines two 20 W speakers and an additional 25 W speaker, delivering a total rated speaker output of 65 W without requiring external speakers for basic room audio.

Wireless screen sharing for up to nine devices

Built-in WonderCast wireless presentation software supports simultaneous screen casting from up to nine devices, allowing multiple contributors to share information during a meeting or lesson.

The display supports Wi-Fi 6 on 2.4 GHz and 5 GHz bands, together with Bluetooth 5.4. Two Gigabit Ethernet ports and an integrated network switching chip offer additional options for wired network connections.

This combination helps organisations accommodate different presentation workflows, including wireless content sharing and connections from external computers.

Android platform, AI tools and optional Windows expansion

The manufacturer's detailed specifications list Android 16.0, with 8 GB RAM and 128 GB internal storage as the standard configuration. Optional versions provide 16 GB RAM and 256 GB storage.

An eight-core processor combining Cortex-A76 and Cortex-A55 cores supports the integrated operating environment. The display also includes a 6 TOPS neural processing unit for supported AI functions.

Integrated tools include AI Assistant, AI Identify and AI Notes. The manufacturer specifies a one-year free validity period with 6,000 minutes for AI Notes. Continued availability beyond the stated allowance should be checked separately.

For Windows-dependent workflows, an optional OPS module enables a dual-system configuration. The OPS computer is an expansion option rather than a standard included accessory.

USB-C, HDMI and professional connectivity

Connect laptops, computers and presentation equipment through a comprehensive range of physical interfaces. The display provides three HDMI 2.1 TMDS inputs, one HDMI output, VGA connectivity and multiple USB ports.

Two full-function USB-C connections, positioned at the front and rear, support DisplayPort 1.2 input and a combined power delivery capacity of up to 100 W. This enables compatible connected devices to exchange display signals and receive power through USB-C.

Additional connections include touch USB ports, analogue audio, SPDIF, RS232 and two Gigabit LAN interfaces. The combination supports integration into meeting rooms, teaching spaces and professional AV installations.

Designed for regular professional use

The panel is specified for 16 hours of operation per day, seven days a week, with a stated display lifespan of 50,000 hours.

Its integrated thermal management system helps regulate operating conditions, while built-in ambient light, temperature and humidity sensors provide environmental monitoring capabilities.

The display supports VESA 600 x 400 mm mounting and includes a wall mounting bracket. Its front-facing connections and control buttons provide convenient access during everyday classroom and meeting room activities.

Ideal applications and compatibility

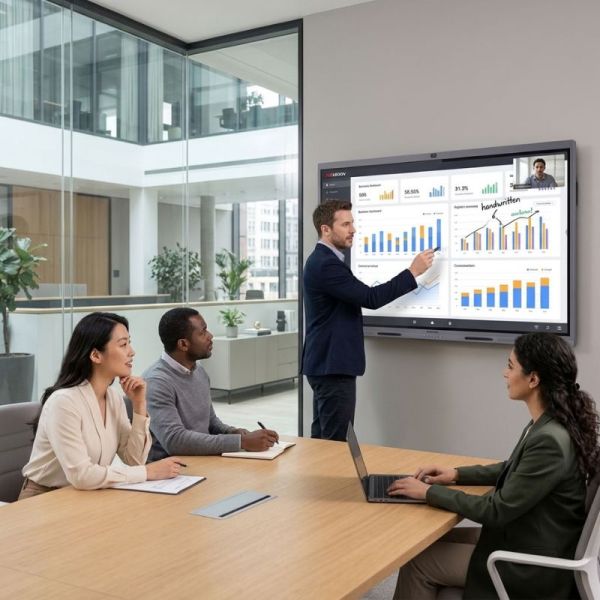

The Hikvision 65-inch interactive display is suited to corporate meeting rooms, collaborative workspaces, training centres and classrooms where teams need to present information, annotate documents and communicate with remote participants.

Its built-in camera, microphones and speakers support video meeting setups, while WonderCast enables multi-device presentation workflows. The optional Windows OPS expansion is relevant for organisations requiring Windows-based applications.

For installation planning, the display supports VESA 600 x 400 mm mounting and offers HDMI, USB-C, VGA, USB, Ethernet and RS232 connectivity. Compatibility with specific third-party conferencing applications, external devices and OPS modules should be confirmed before deployment.

Technical specifications:
