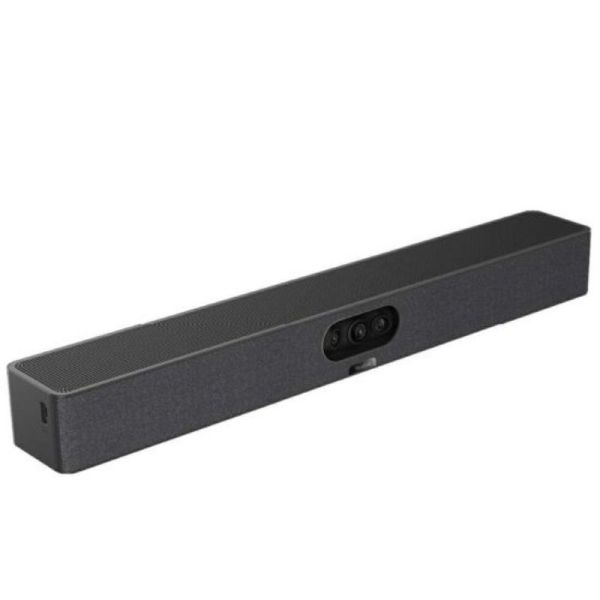

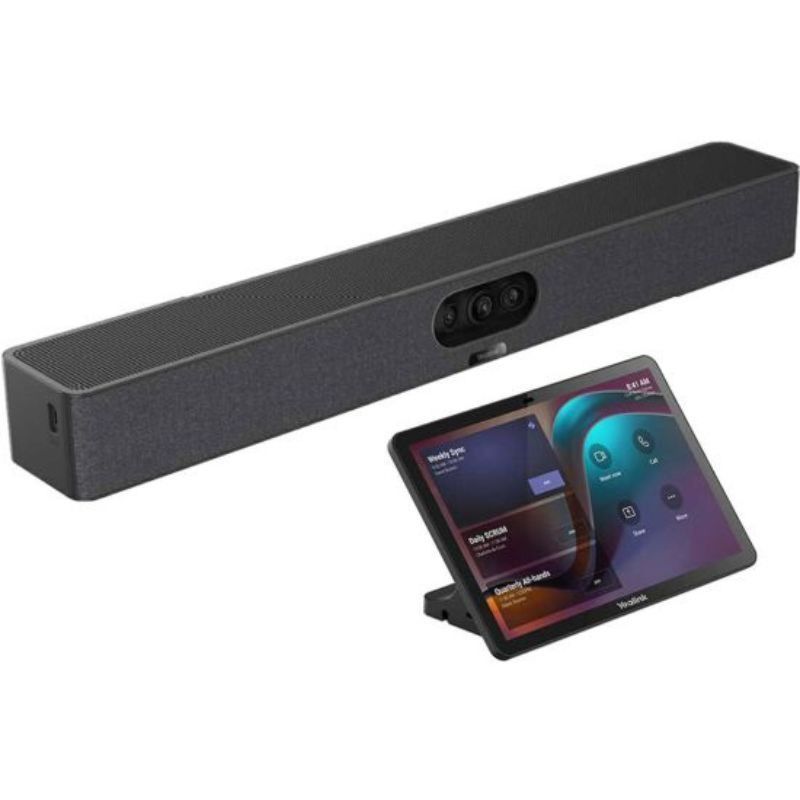

Yealink Meetingbar A25 with CTP25

Product description

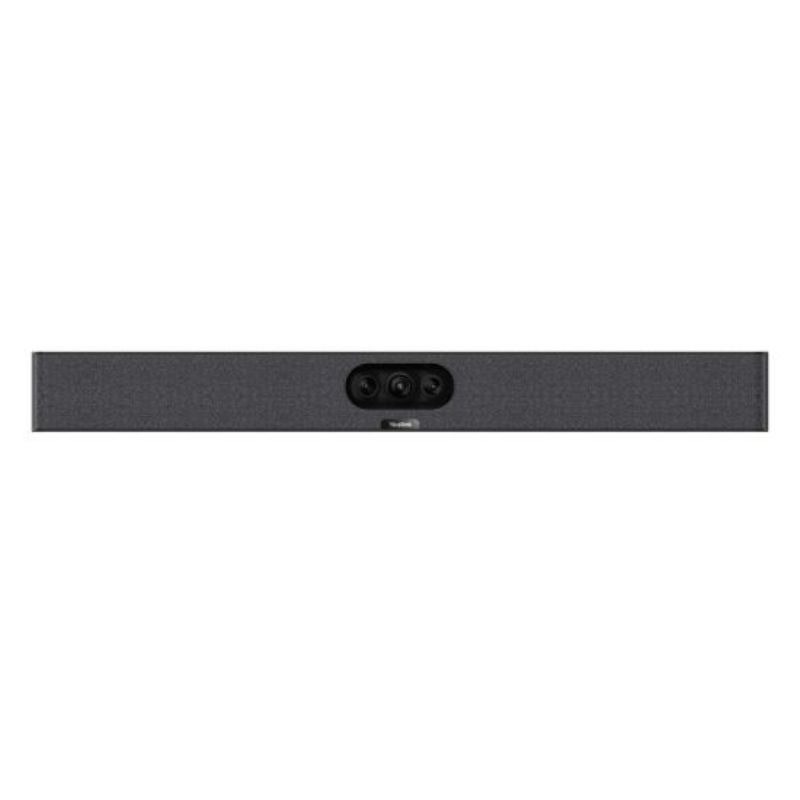

Yealink MeetingBar A25

Introduction

The Yealink MeetingBar A25 is a compact video conferencing solution for focus rooms: it combines an extremely wide camera angle, AI-controlled audio and easy setup with just one cable – ideal for productive, stress-free meetings.

In what context do I need this product?

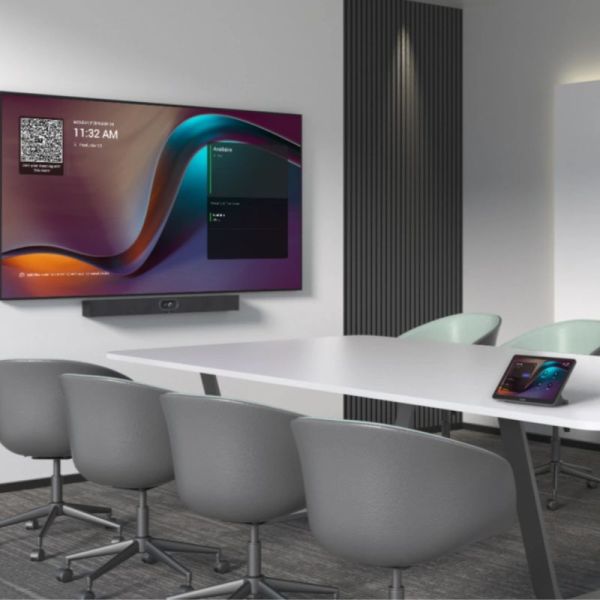

The A25 is ideal for small to medium-sized meeting or focus rooms where space is limited. It can be easily combined with a touch console, can be installed with a single cable (power + network), and is therefore ideal for flexible office spaces or modern working environments.

Audio and video specifications

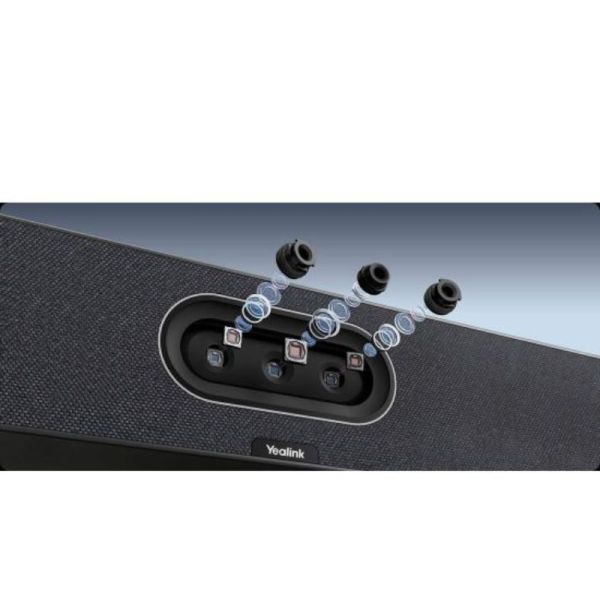

The MeetingBar A25 camera uses three 4K lenses (one ultra-wide angle and two telephoto), delivers 4K video images at 30 fps and offers a very wide 151° viewing angle for optimal room coverage.

The 8-MEMS microphone array captures voices up to 5 meters away with AI-based noise cancellation, and the built-in 10-watt speaker delivers clear, natural sound.

Platform & device compatibility

The MeetingBar A25 runs on Android 13 and supports the Microsoft Device Ecosystem Platform (MDEP). This allows it to be installed securely and future-proofed in Microsoft Teams Rooms.

Wired (USB‑C, HDMI, Ethernet) and wireless options (Wi-Fi 6, Bluetooth 5.1) are available for connection.

Collaborative features

Thanks to the one-cable solution (Cat5e for power & network), installation is quick and tidy. Content can be shared via the touch console (BYOD via USB‑C). The A25 also supports cross-platform control, which makes hybrid meetings significantly more efficient.

Security features

Data protection is a priority: the A25 has an electric privacy shutter that visually blocks the camera when needed. In addition, the Android 13 operating system with MDEP integration offers robust security mechanisms against unauthorized access and data leaks.

Continuous upgradeability and flexible connectivity

The CTP25 runs on Android 13, guaranteeing you an up-to-date and secure device with support for MDEP (available from September). With its USB-C port, you can share 4K content, connect your BYOD devices, and charge your laptop. All with a single cable and no cable clutter! This versatile solution also offers multiple installation options to make the most of any space. Technical specifications

Meetingbar A25:

• Field of view (FOV): 151° horizontal
• Cameras: 3 × 4K lenses, 8 MP per sensor
• Autoframing & speaker tracking via AI
• Video resolution: up to 3840 × 2160 @ 30 fps
• Microphone: 8 MEMS, 5 m range, AI-assisted noise cancellation
• Speaker power: 10 W (up to ~12 W peak power)
• Network: Ethernet 10/100/1000, Wi‑Fi 6 (802.11ax), Bluetooth 5.1
• Connections: 1 × HDMI out, 1 × RJ45, 1 × USB‑C, 1 × USB-A, 3.5 mm line-out
• Operating system: Android 13, MDEP compatible
• Security features: electric privacy shutter, cable lock slot, MDEP authentication
• Management platforms: Teams Admin Centre, Zoom Device Management, Yealink Management Cloud Service
• Dimensions (bar): 570 mm × 80 mm × 65 mm, weight ~ 3.81 kg

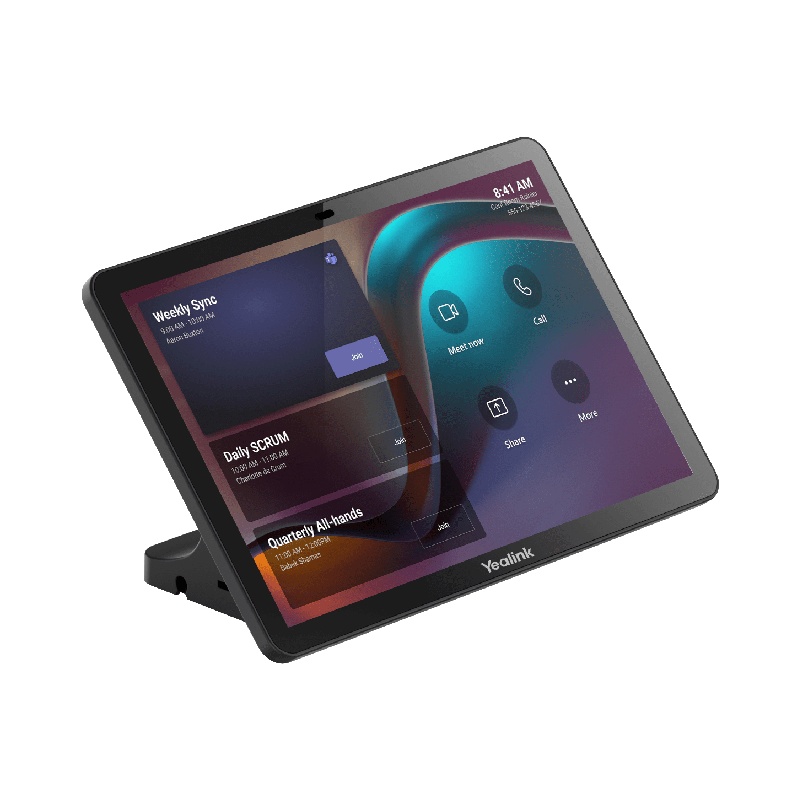

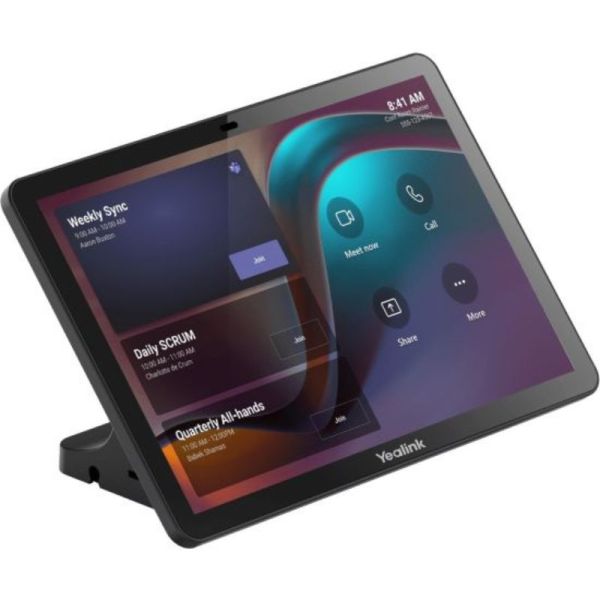

Touchpad CTP25:

• Display: 10.1 inches, 1280 × 800 resolution, IPS panel, 1000:1 contrast ratio.
• Brightness: 350 cd/m².
• Touch technology: Capacitive multi-touch with multi-point support.
• Connectivity: Wi-Fi 6, Bluetooth 5.0, USB-A, 2 USB-C ports, and RJ45 port.
• Operating system: Android 13 with continuous updates.
• Audio: Built-in ultrasonic unit.
• Management: Compatible with Yealink Web Portal, Teams Admin Center, and Zoom Device Management.
• Installation: Tabletop or wall mount.
• Power consumption: 7.3 W average, 65 W with PD adapter.
• Dimensions and weight: 242.95 × 27.50 × 161.95 mm, weight 0.683 kg.
