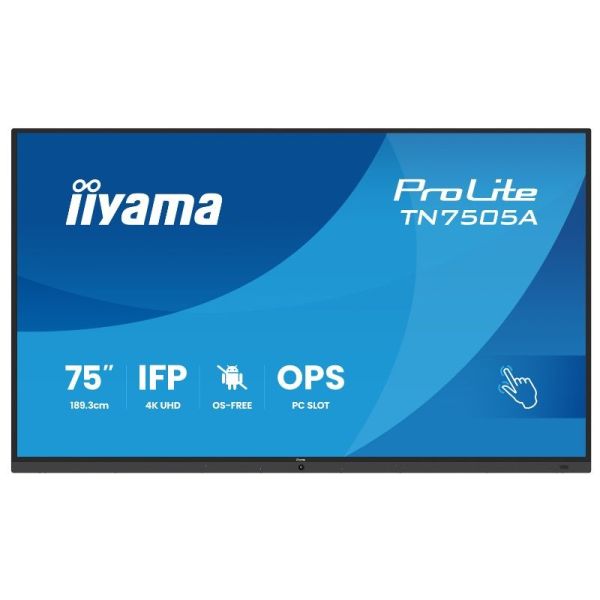

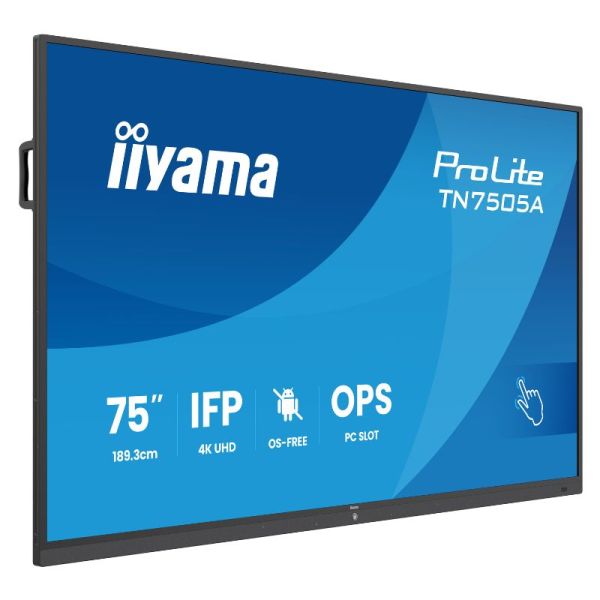

iiyama ProLite TN7505A 75 inch 4K Touch
Internal ref: IIYTN7505AB1AG // Manufacturer part #: TN7505A-B1AG
Professional 74.5-inch 4K touchscreen display without an operating system, featuring DeepContrast-IR+, USB-C and an OPS slot, designed for security-critical and IT-controlled environments.
NEW
£1,811.99
£2,174.39 Incl. VAT
5 years of manufacturer warranty Subject to manufacturer conditions
Pay in 3 interest-free payments of Show more
Key features
- 74.5-inch 4K UHD touchscreen for professional collaboration, presentations and interactive applications.
- No integrated operating system for maximum security, simple IT management and complete system control.
- DeepContrast-IR+ touch technology with ±1 mm touch accuracy and palm rejection.
- IPS panel with 500 cd/m², anti-reflective glass and an antibacterial coating for a clear display.
- USB-C with 65 W Power Delivery for video, data, touch and power supply via a single cable.
- OPS slot and extensive connectivity including HDMI, DisplayPort, VGA, LAN and RS-232C.
In the box
- iiyama ProLite TN7505A-B1AG
- Mains lead
- HDMI cable (3 m)
- USB cable (3 m)
- RS-232C cable
- 4 styluses
- Webcam mount
- Wall mount
- Remote control with batteries
- Power supply unit
Product range:
Product description
iiyama ProLite TN7505A – Professional 4K touchscreen display for maximum security and IT control
The iiyama ProLite TN7505A-B1AG is a professional 74.52-inch touchscreen display without an integrated operating system. It has been specially developed for environments where security, reliability and complete IT control are crucial. Thanks to its plug-and-play design, simply connecting a source device is all it takes to start working straight away.
Brilliant 4K display for professional applications
The IPS panel with a native resolution of 3840 × 2160 pixels delivers highly detailed images. The brightness of 500 cd/m², the contrast ratio of 1200:1 and the anti-reflective and antibacterial coating ensure comfortable viewing even in busy meeting and training rooms.
Precise touch control with DeepContrast-IR+
The DeepContrast-IR+ technology enables touch accuracy of ±1 mm and supports precise operation with palm rejection. Thanks to the integrated annotation function, content can be annotated and highlighted directly on the display using a stylus.
Maximum security without an operating system
As the display has no integrated operating system, there is no need for operating system updates or their management. This makes the model particularly suitable for banks, courts, defence organisations, IT departments, universities and other security- and compliance-oriented applications.
Versatile connectivity and flexible integration
The USB-C port with 65 W Power Delivery transmits video, data, touch signals and power via a single cable. In addition, HDMI, DisplayPort, VGA, RJ45, RS-232C and an Intel OPS80-compatible OPS slot are available for the integration of an optional OPS PC.
Applications and compatibility
The ProLite TN7505A-B1AG is suitable for professional conference rooms, training rooms and safety-critical working environments. The display is Plug & Play-compatible with Windows and Linux and supports the relevant touch functions depending on the operating system.
Technical specifications:
| Product type | Professional touchscreen display |
| Screen diagonal | 74.52 inches (189.273 cm) |
| Panel technology | IPS |
| Surface | Anti-glare, antibacterial coating, 25% haze |
| Resolution | 3840 × 2160 (4K UHD) |
| Aspect ratio | 16:9 |
| Brightness | 500 cd/m² |
| Contrast ratio | 1200:1 |
| Response time | 5 ms |
| Viewing angle | 178°/178° |
| Touch technology | DeepContrast-IR+ |
| Touch accuracy | ±1 mm |
| Palm rejection | Yes |
| Operating system | No built-in operating system |
| Compatible operating systems | Windows and Linux (Plug & Play) |
| HDMI inputs | 2 (CEC/ARC) |
| DisplayPort | 1 |
| VGA | 1 |
| USB-C | 1 (65 W Power Delivery, DP Alt Mode, data, touch) |
| USB | 1 × USB 2.0, 2 × USB 3.2 |
| LAN | 2 × RJ45 |
| RS-232C | Input and output |
| OPS slot | Intel OPS80 |
| Speakers | 2 × 20 W |
| Subwoofer | 1 × 20 W |
| PiP / PbP | Yes / Yes |
| VESA | 800 × 400 mm |
| Power consumption | 175 W typical |
| Standby | 0.5 W |
| Dimensions (W × H × D) | 1710.2 × 1036.3 × 120.4 mm |
| Weight | 54.5 kg |
| Energy efficiency class | G |
Files
ProLite TN7505A-B1AG - Datasheet
Product Specs.
| Manufacturer part # | TN7505A-B1AG |
|---|---|
| EAN | 4948570127078 |
| Warranty | 5 years |
| By Sector | Retail, Hotels and restaurants, Education, Corporate and Office |
| Use type | Digital signage |
| Intended use | Indoor screen |
| Screen type | Flat Screen |
| Screen Technology | LED - LCD |
| Screen Orientation | Horizontal |
| Screen Size | 75 inches |
| Screen Size | 75'' |
| Resolution | 4K |
| Compatible With | All Platforms |
| Brightness | 350 - 700 cd/m² |
| Other Features | PC/Mac Compatible, Compatible with Stylus, Screen |
| VESA standard | 800 × 400 mm |
| EPREL certification | 2532105 |
| Energy efficiency class | G |
