iiyama ProLite TN6505A 65 inch 4K Touch

Product description

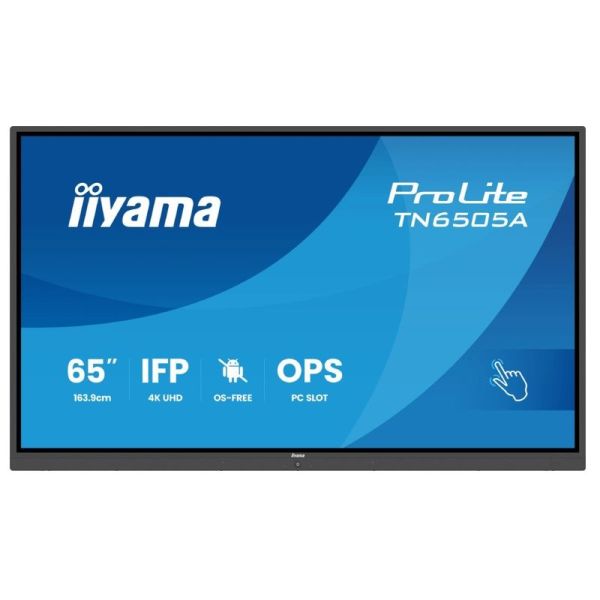

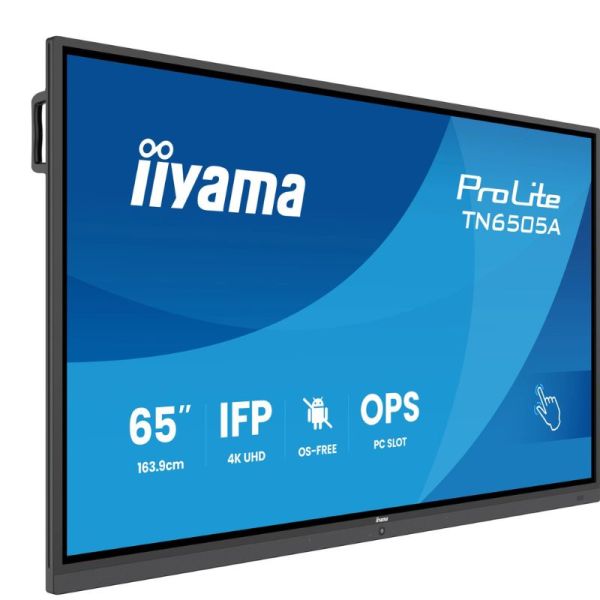

iiyama ProLite TN6505A – secure 4K touchscreen display with full IT control

The iiyama ProLite TN6505A-B1AG is a professional touchscreen display for organisations that prioritise security, reliability and transparent IT structures. As it does not have a built-in operating system, the display can be integrated into existing environments without the need for additional platform management or system-related updates.

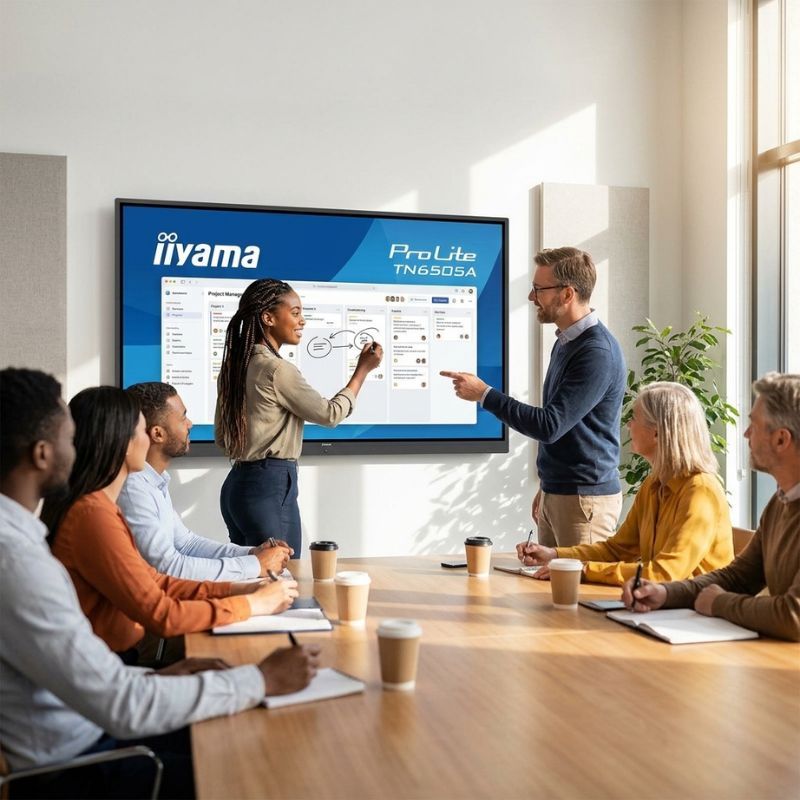

The device is suitable for interactive presentations, collaborative work and the direct editing of displayed content. An external source device can be connected, allowing the display to be used immediately without complex setup.

High-detail 4K display on a 64.5-inch screen

The IPS panel with 4K UHD resolution displays content at 3840 × 2160 pixels. A brightness of 500 cd/m², a contrast ratio of 1200:1 and viewing angles of 178° ensure a clear display from various positions in the room.

The anti-glare surface with a haze value of 25% reduces distracting reflections. In addition, the panel features an antibacterial coating, which supports use in shared work and learning environments.

Precise control with DeepContrast-IR+

The DeepContrast-IR+ touch technology enables touch accuracy of ± 1 mm and supports up to 40 touch points when used with a compatible operating system. This allows several people to interact with content simultaneously.

The integrated palm rejection feature makes it easier to write and annotate on the screen. The four styluses supplied allow you to mark up presentations and other on-screen content directly.

Plug-and-play without an integrated operating system

The display contains no pre-installed operating system. This eliminates the need to manage an additional software platform within the display. A laptop or other compatible source device can be connected directly to play back content and use the touch function.

This architecture is particularly suitable for organisations where data protection, compliance and control over the operating systems used play a key role.

USB-C and versatile connectivity options

Via the USB-C port with 65 W power delivery, video signals, data, touch information and electrical power can be transmitted via a single cable. In addition, two HDMI inputs, one DisplayPort input and one VGA port are available.

Two RJ45 ports, RS-232C inputs and outputs, and IR loop-through enable integration into professionally controlled installations. The Picture-in-Picture and Picture-by-Picture functions support the simultaneous display of multiple signal sources.

OPS expansion and integrated audio system

The integrated OPS slot, compliant with the Intel OPS80 standard, allows for the installation of a compatible plug-in PC. This enables the display to be expanded into a standalone solution if required, without the need to install an external computer separately.

Two 20 W speakers and a 20 W subwoofer are integrated for audio playback. External audio sources and audio devices can be connected via 3.5 mm sockets.

Flexible mounting for professional environments

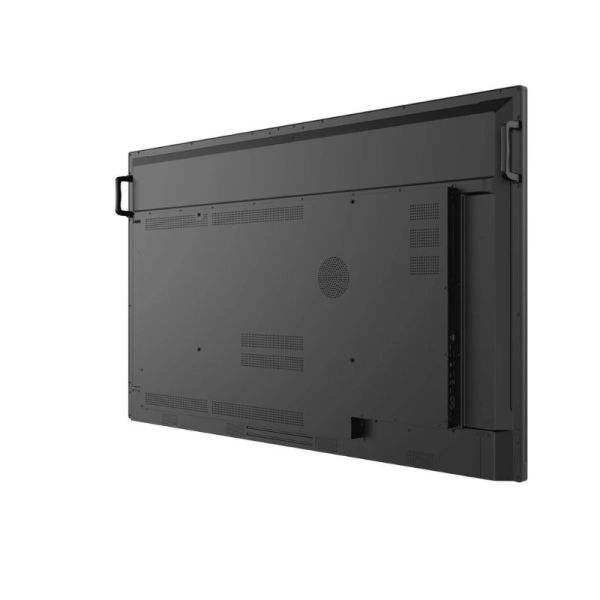

The fanless display is designed for use in landscape orientation and supports the VESA standard 600 × 400 mm. A suitable wall mount is included as standard, enabling space-saving installation.

The device can be operated at ambient temperatures between 0 and 40 °C. The integrated scheduling, key lock and automatic standby function support controlled operation in shared spaces.

Applications and compatibility

The iiyama ProLite TN6505A-B1AG is suitable for banks, courts, defence organisations, IT departments, universities, conference rooms and other security- or compliance-oriented institutions. The plug-and-play display is compatible with Windows and Linux; exact support for touch functions depends on the operating system used.
