Yealink MVC S90-C5U Microsoft Teams Rooms System
Internal ref: YEAMVCS90C5U // Manufacturer part #: 1106799
Native Microsoft Teams Rooms kit with dual 4K PTZ cameras, AVHub processor, and 11.6" touch panel for extra-large meeting spaces.
£9,999.99
£11,999.99 Incl. VAT
Bulk orders, request a quote now!
2 years of manufacturer warranty Subject to manufacturer conditions
Pay in 3 interest-free payments of Show more
Key features
- Native Microsoft Teams Rooms, one-touch join, intuitive control
- Dual UVC86 4K PTZ cameras with 12× optical zoom
- AVHub multi-camera solution; up to nine cameras
- Customizable layouts and multi-speaker tracking
- MTouch Plus 11.6″ touch panel for room control
- BYOD-Extender enables simple USB laptop connectivity
- Wireless and wired content sharing, including 4K HDMI-In
- Remote management via Yealink Device Management Platform
In the box
- MCore 4
- MTouch Plus
- RoomSensor
- UVC86*2
- AVHub
- BYOD-Extender
Product range:
Product description

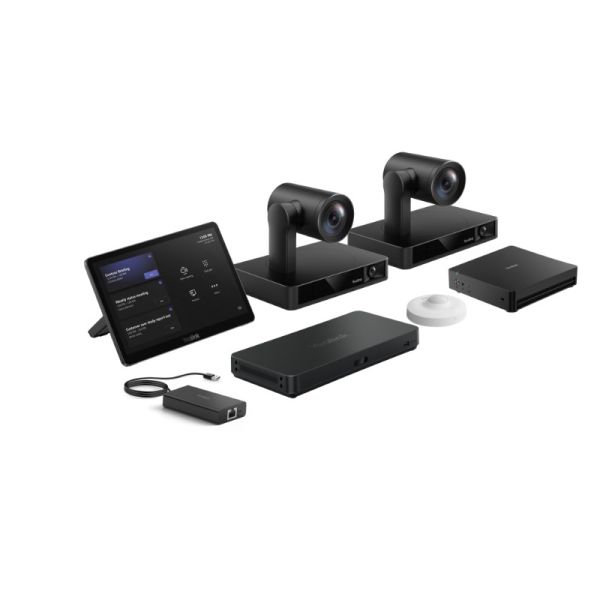

Yealink MVC S90-C5U Microsoft Teams Rooms System
Complete Microsoft Teams Rooms bundle for extra-large spaces: MCore 4 mini-PC (Intel Ultra5 125H), MTouch Plus 11.6″ controller, two UVC86 4K PTZ cameras, AVHub processor, RoomSensor, and BYOD-Extender for PC use and flexible wired/wireless sharing.
In what context do I need this product?
Ideal for extra-large rooms, classrooms and training spaces where multi-camera coverage and flexible layouts are needed. AVHub supports up to 9 Yealink cameras with custom layouts; sets can be combined via network cables. BYOD-Extender lets visitors use the room AV from their laptop over USB. MTouch Plus simplifies one-touch control.
Audio and video specifications
Dual UVC86 PTZ cameras deliver 4K video with 12× optical + 1.7× digital zoom, 90°/81°/50° (tele) and 120°/110°/78° (panoramic) FOVs. AI auto-framing, speaker and presenter tracking with area trigger and gesture control. Multi-speaker tracking with AVHub.
On which platform/device can I use it?
Native Microsoft Teams Rooms experience across the bundle, with MTouch Plus enabling one-touch join, call control, camera settings and content sharing. BYOD-Extender lets a laptop use the room’s audio/video over a single USB cable; HDMI-In supports 4K auxiliary input.
Collaborative features: how it stands out
Wireless sharing with Yealink dongle (1080p/30fps) and wired sharing via MTouch USB-C/HDMI; MCore 4 offers 4K HDMI-In for auxiliary content. MTouch Plus gives one-click conferencing.
Security features
MCore 4 includes TPM 2.0 and Kernel DMA protections in BIOS features. Windows 11 IoT Enterprise and Teams Rooms app are preloaded.
Technical specifications
- MCore 4: Ultra5 125H; 16GB/256GB; TPM 2.0; Wi-Fi 6/BT 5.2; 3× HDMI-Out + HDMI-In; 4× USB-A; Gigabit LAN.
- MTouch Plus: 11.6″ 1080p; HDMI/USB-C in; wired/wireless share; PD; desk/wall.
- RoomSensor: 120° FOV; 0-40 °C; 10-95% RH.
- UVC86: 4K PTZ; 12× zoom; pan 200°, tilt 130°; HDMI/USB.
- AVHub: 7× VCH; USB-A/B; codec; RCA; 6.3 mm I/O; multi-speaker.
- BYOD-Extender: USB-A; RJ-45 VCH; 89×48×17 mm; 0-40 °C.
- Management: RoomConnect; Device Management Platform/Cloud.
Files
MVC S90-C5U Microsoft Teams Rooms System - Datasheet (EN)
Product Specs.
| Manufacturer part # | 1106799 |
|---|---|
| Warranty | 2 years |
| Video Solution type | Room Solution |
| Room Size | Large Meeting Room (+12) |
| Connects to | With PC/Laptop |
| Compatible With | Microsoft Teams |
| Camera resolution | 4K |
| Camera field of view | 120° |
| Camera Features | Auto Framing and Tracking |
| Other Features | Content Sharing, PC/Mac Compatible, With Windows, BYOD |
| Sold as pack | No |
Accessories

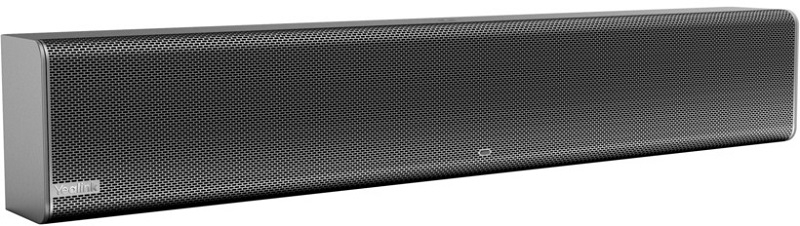

Ref: YEALINKMSPEAKERII

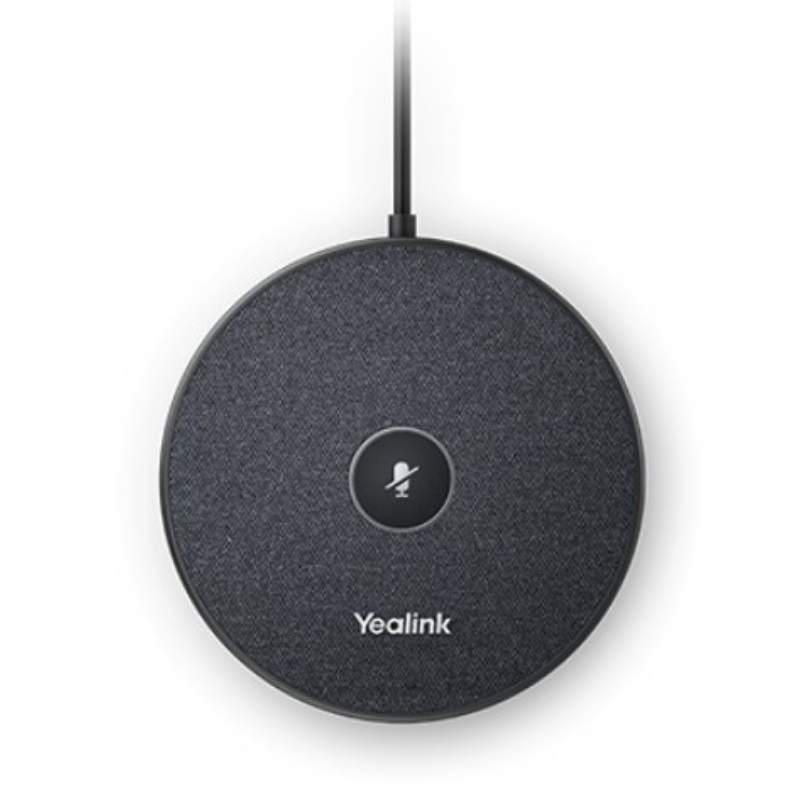

Ref: YEALINKVCM35
