Yealink Corekit C5U MS

Product description

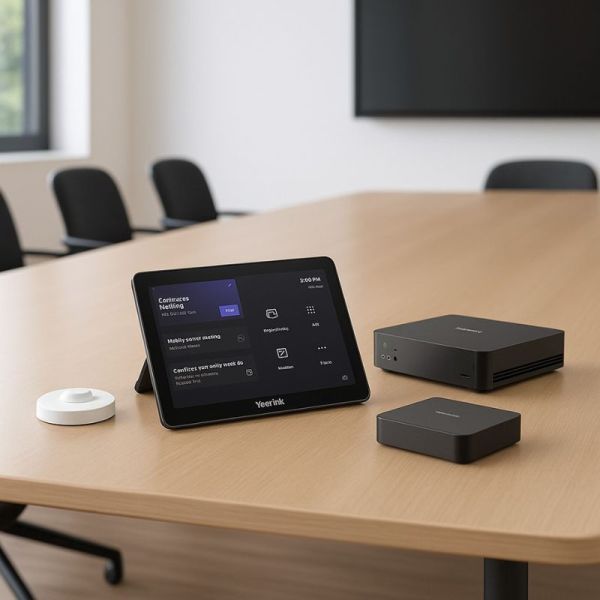

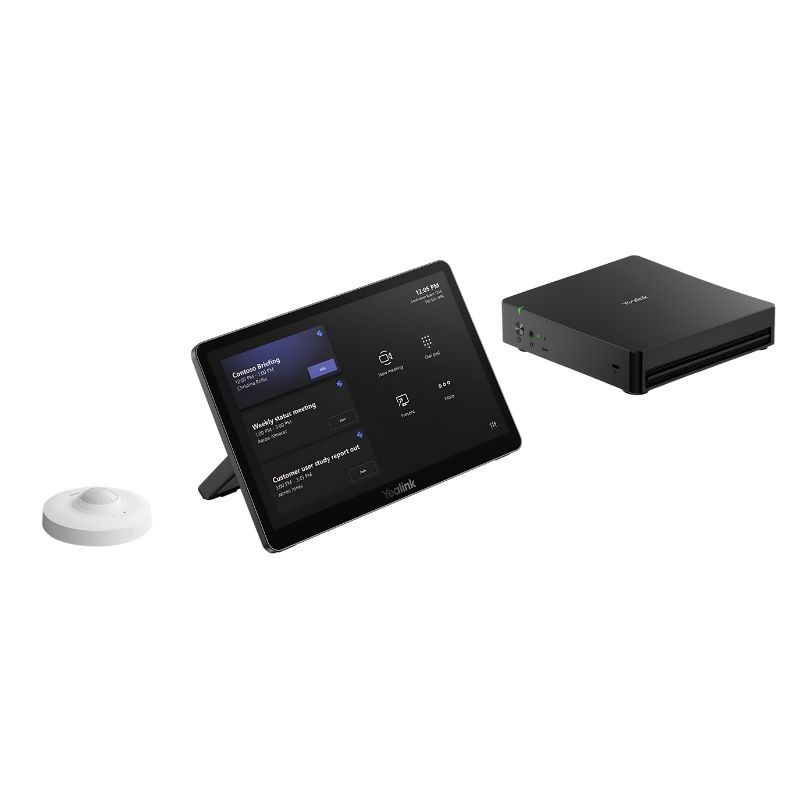

MCoreKit-C5U Microsoft Teams Rooms System

Compact Microsoft Teams Rooms system combining the MCore 4 mini-PC, the MTouch Plus touch panel, and RoomSensor for one-touch meetings, environmental automation, and content sharing.

Where can it be used?

Ideal for small to medium-sized meeting rooms, huddle spaces, and environments requiring scalable installations. Deploy single units in local rooms or expand the solution by connecting additional cameras and microphones via AVHub or VCH for larger spaces.

Audio and video specifications

MCore 4 supports 4K HDMI-In input for auxiliary streaming and three HDMI outputs. MTouch Plus is an 11.6" Full HD (1920×1080) IPS panel. Wireless sharing via dongle supports 1080p/30fps. The system supports multiple cameras and AI tracking modes when connected to AVHub/VCH for intelligent framing.

Compatible platforms and devices

Native Microsoft Teams interface with pre-installed Microsoft Teams Rooms App. Supports BYOD devices via wired sharing (HDMI/USB-C) or wireless (WPP30/dongle). Compatible with Yealink cameras (SmartVision 80, UVC86) and audio peripherals via VCH/USB ports for wired or wireless setups.

Collaboration features

One-touch meeting start from the panel, wired and wireless content sharing, camera control, and multi-stream support. MTouch Plus allows local control and sharing via USB-C/HDMI; wireless sharing supports 1080p/30fps for smooth presentations.

Security features

Hardware and system security: TPM 2.0 and Kernel DMA protection on MCore 4, Windows 11 IoT Enterprise, and support for remote management and updates via Yealink Device Management Platform to keep devices secure and up to date.

Key features:

• Processor: Intel Ultra5 125H (MCore 4).
• Memory: 16GB (2×8GB) DDR5.
• Storage: 256GB SSD.
• MCore ports: 1× HDMI-Out 2.1, 2× HDMI-Out 2.0, 1× HDMI-In, 4× USB 3.0 Type-A.
• Network: 1× 10/100/1000 Gigabit Ethernet; dedicated AV LAN port.
• Wireless connectivity: Wi-Fi 802.11 a/b/g/n/ac/ax; Bluetooth 5.2.
• MTouch interface: 11.6" IPS, adjustable angle, supports HDMI/USB-C input.
• RoomSensor: 120° detection angle (±20° adjustable); temp./humidity monitoring.
• Preloaded software: Windows 11 IoT Enterprise X64, Windows 11 IoT licence, Microsoft Teams Rooms App, Yealink RoomConnect.
• Integration options: VCH and AVHub support, compatible with Yealink cameras for AI tracking.
