Sennheiser Mic TCC M-S-B

Product description

TeamConnect Ceiling Medium S-B

The TeamConnect Ceiling Medium S-B is a professional ceiling microphone specially developed for medium-sized conference and meeting rooms. It impresses with its discreet integration, excellent speech intelligibility and flexible installation options, ideal for companies, schools or hybrid meeting rooms.

Recommended application environments

• Modern meeting and conference rooms in companies
• Conference rooms, training or seminar rooms
• Hybrid workstations and flexible office infrastructures
• Learning rooms and classrooms
• Office space with changing room layouts
• Situations with sophisticated aesthetics and minimal cable clutter

Essential functions & technology

With 15 electret SMD capsules and patented dynamic beamforming, the microphone automatically captures the active voice - regardless of whether the speaker is sitting, standing or moving. PoE/PoE+ enables simple power supply via a single cable, while Dante or analogue outputs allow flexible audio connection. Exclusion and priority zones help to mute unwanted noise sources.

Platform & compatibility

The TeamConnect Ceiling Medium S-B can be seamlessly integrated into existing AV infrastructures: Analogue conference DSPs as well as Dante networks are supported. The power and control interface via RJ-45 (PoE + Dante) makes the microphone compatible with modern video conferencing and mixing systems.

User experience & advantages

For users, this means: clear, natural voice without background noise and without manual microphone control. The slim, unobtrusive design ensures a tidy room ambience. Installation and maintenance are particularly easy thanks to PoE and flexible mounting options, ideal for companies that want to equip rooms quickly and cleanly.

Technical specifications

• Diameter × height: 407 × 46 mm
• Max. Weight: approx. 4.9 kg
• Audio outputs: 1 × 3-pin Phoenix connector (analogue), 1 × Dante (RJ-45)
• Power supply: PoE IEEE 802.3af Class 3 or PoE+ IEEE 802.3at Type 2 / Class 4
• Max. Sound pressure level: 98 dB SPL
• Sensitivity: 0 dBV/Pa (1020 mV/Pa)
• Signal-to-noise ratio: 79 dB(A)
• Microphone type: Pre-polarised condenser microphone (electret SMD)
• Audio frequency range: 100 Hz - 16,000 Hz

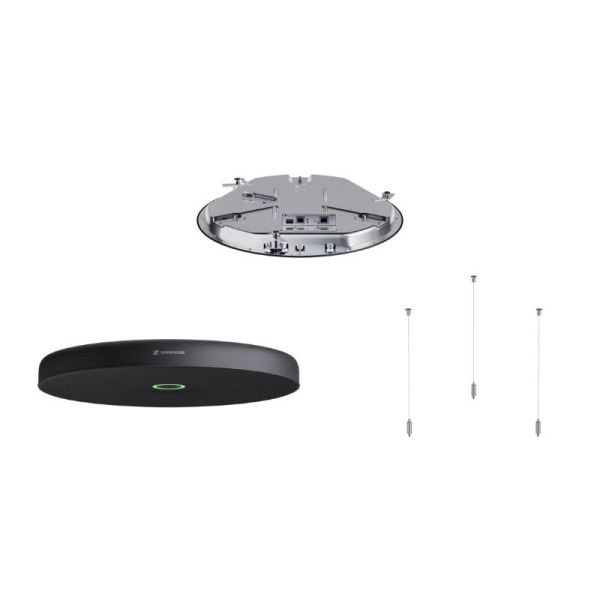

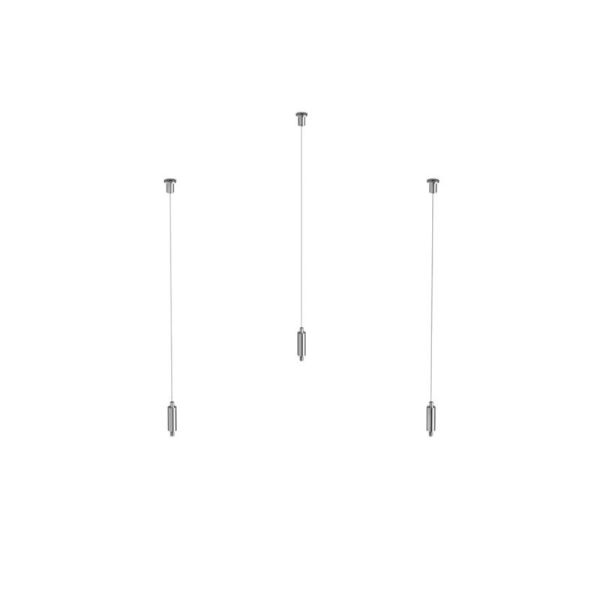

• Mounting options: Flush-mounted, surface-mounted, pendant-mounted, VESA, ceiling tile system
• Security protocols: IEEE 802.1x, TLS 1.2 (SSCv2 API)
• Colour: black
