Sennheiser Mic TCC M-F-B

Sennheiser TCC M-F-B

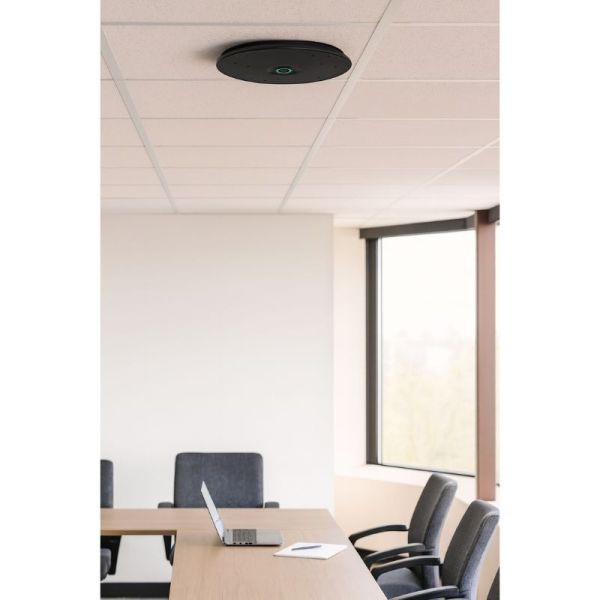

The Sennheiser TCC M-F-B is a high-quality ceiling microphone specially designed for medium-sized conference rooms and meeting rooms up to approx. 40 m². It combines discreet design with advanced speech and audio technology and ensures clear voice transmission, ideal for video conferences, hybrid meetings, or classrooms.

Recommended application environments

• Modern meeting and conference rooms
• Conference rooms and training rooms
• Hybrid workstations / flexible working environments
• Seminar or lecture rooms
• Office space with changing furniture arrangements
• Rooms with a need for low-cable, elegant installations

Important functional specifications

The microphone uses 15 high-quality electret SMD capsules and uses automatic beamforming to create a precise directional effect: the speaker is reliably recognised and background noise is minimised. Power is supplied via PoE (Power over Ethernet) and audio can be output in analogue or digital form via Dante. Exclusion and priority zones can be used to specifically control which areas are to be recorded.

Platform and device compatibility

The TCC M-F-B can be easily integrated into existing AV infrastructures - thanks to its analogue output, it is particularly suitable for classic conference DSPs, but also ideal for Dante-based networks. A PoE Ethernet connection makes installation and operation particularly simple and flexible - compatible with common video conferencing systems and mixing consoles.

User experience & advantages

Thanks to automatic beamforming and TruVoicelift, users benefit from clear, natural voice transmission - even with multiple speakers or in a larger room. The unobtrusive, flat design blends elegantly into rooms and enables a tidy room layout without disruptive table microphones. The simple PoE installation and flexible mounting options (flush-mount, pendant or under-ceiling) make integration particularly straightforward.

Technical specifications

• Dimensions (Ø × H): 407 × 46 mm
• Weight: approx. 4.9 kg
• Audio outputs: 1 × 3-pin Phoenix connector (analogue) + 1 × Dante (RJ-45)
• Network / control: 1 × RJ-45 for PoE, Dante and control data
• Power supply: PoE IEEE 802.3af Class 3 or IEEE 802.3at Type 2 / Class 4
• Power consumption: approx. 8 W
• Audio frequency range: 100 Hz - 16,000 Hz
• Microphone principle: pre-polarised condenser microphone (electret SMD)
• Max. Sound pressure level (SPL): up to 98 dB
• Signal-to-noise ratio: 77-79 dB(A)

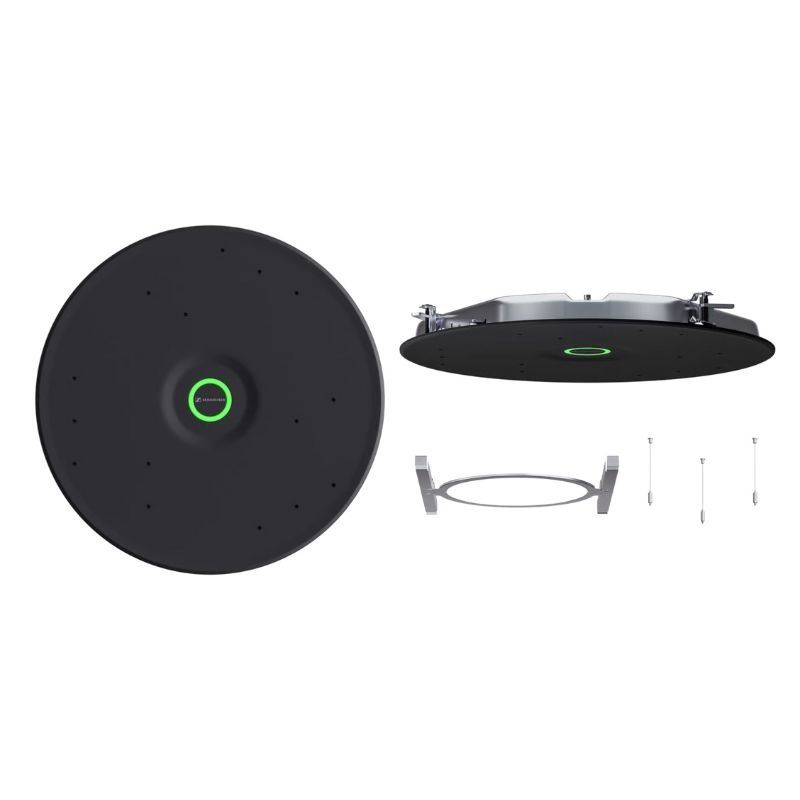

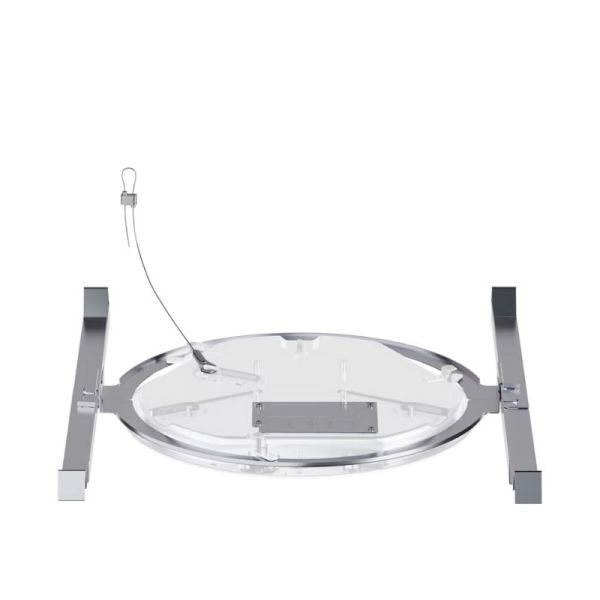

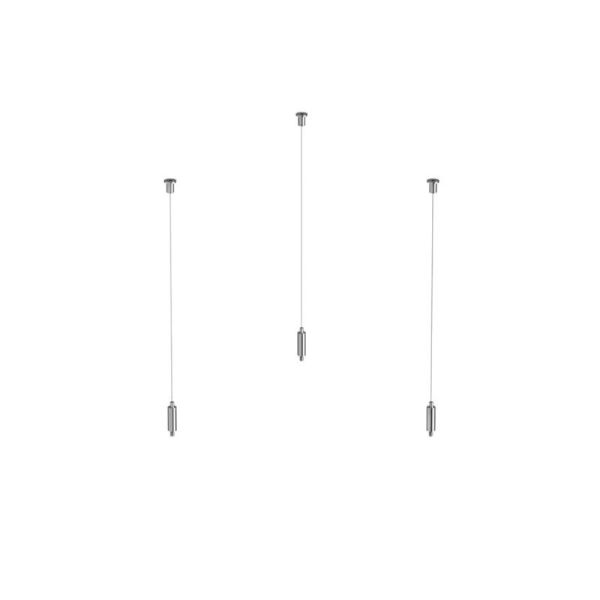

• Installation types: flush-mount, under-ceiling mounting, suspended, directly under ceiling
• Certifications: IEC/EN 62368-1, UL 2043 (plenum)
