iiyama ProLite LH8675UHS-B2AG

Product description

iiyama ProLite LH8675UHS-B2AG

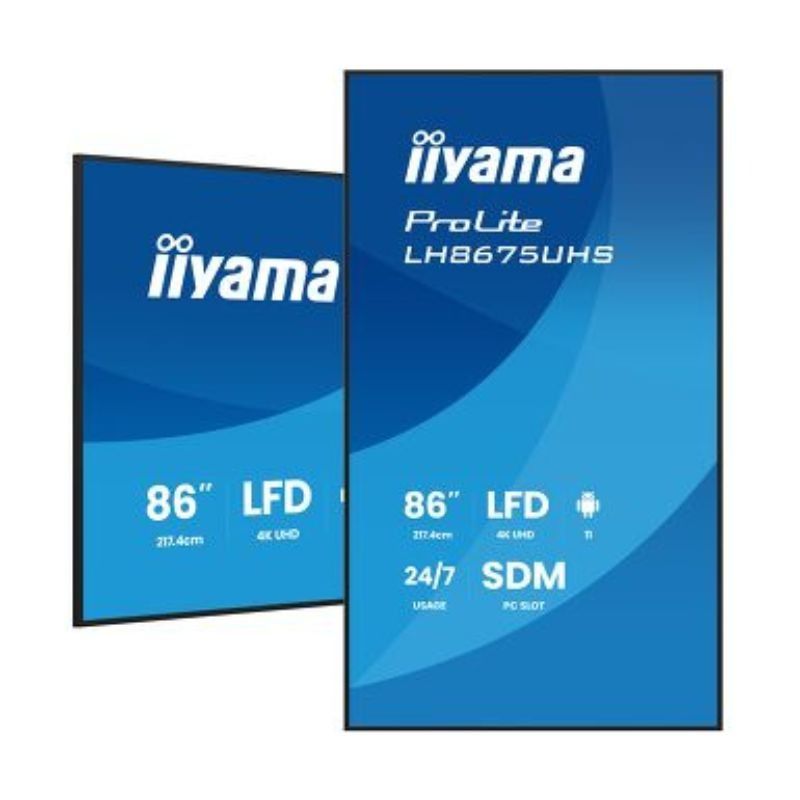

The iiyama LH8675UHS-B2AG is an 86″ 4K digital signage display featuring Android 11, FailOver technology, an SDM slot and 500 cd/m² brightness. Designed for 24/7 continuous operation, it’s ideal for retail, corporate, hospitality and public environments, offering flexible mounting and orientation options.

Video specifications and performance

• The LH8675UHS-B2AG features an IPS panel with a matte coating (haze ~25%) for excellent colour accuracy and reduced glare.
• Delivers native 4K UHD resolution (3840 × 2160) at 60 Hz for crisp, detailed visuals.
• Typical brightness: 500 cd/m²; static contrast ratio: 1200:1.
• Response time: 8 ms (GtG), as specified by iiyama and distributor sources.
• Wide viewing angles of 178° horizontally and vertically ensure consistent image quality from all perspectives.
• Built for continuous 24/7 operation, with automatic signal switching (FailOver) and cascading support via DisplayPort Out.

Device and software compatibility

The LH8675UHS-B2AG integrates Android 11 with iiSignage² CMS, allowing users to manage content and install applications directly on the display. It is compatible with standard digital signage platforms and supports network control via LAN or RS-232. Recommended accessories include Intel SDM modules, wall mounts and cable management systems.

Collaborative and signage features

This display includes FailOver functionality, iiSignage² content management, DP-Out cascading, and wireless casting via iiShare or EShare through WiFi / Miracast. The portrait and landscape modes offer flexible orientation options for different signage layouts. Thanks to the integrated CMS, remote content management and device control are easily handled.

Technical specifications

• Panel type: IPS, matte (haze ~25%)
• Screen size: 86 inches
• Resolution: 3840 × 2160 (4K UHD) at 60 Hz
• Brightness: 500 cd/m² (typical)
• Contrast ratio (typical): 1200:1
• Response time: 8 ms GtG
• Viewing angles: 178° / 178° (horizontal / vertical)

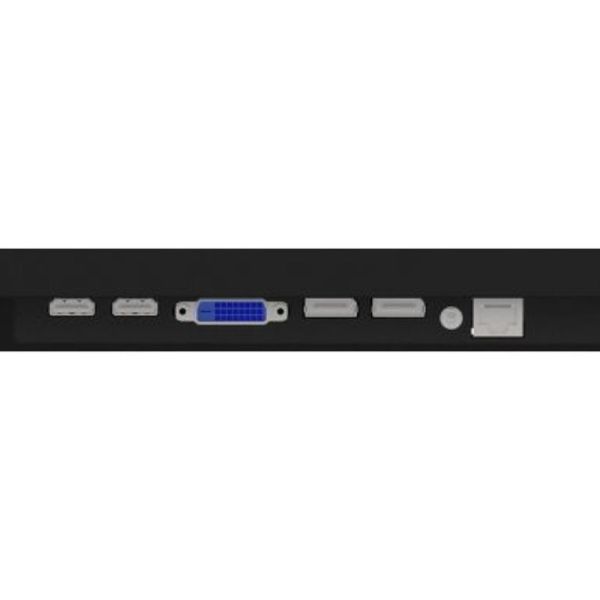

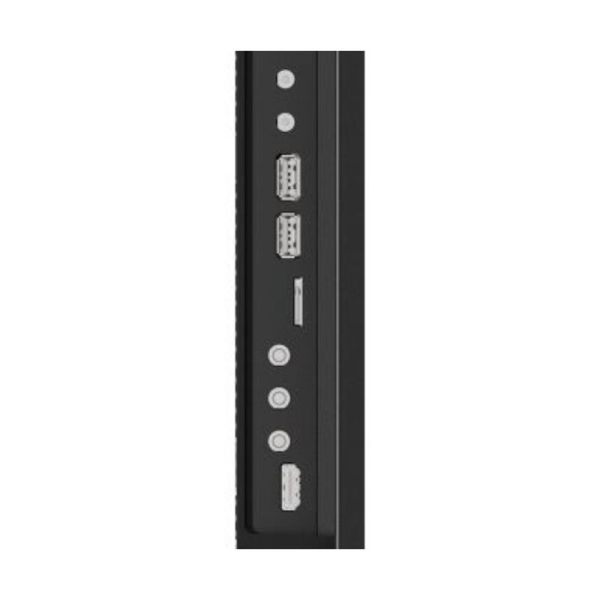

• Interfaces: 3× HDMI, 1× DisplayPort (In), 1× DisplayPort Out, 2× USB (Type A), RJ45 (LAN), microSD, RS-232, IR In/Out
• Audio: 2 × 10 W built-in speakers
• Operating mode: 24/7 continuous operation supported

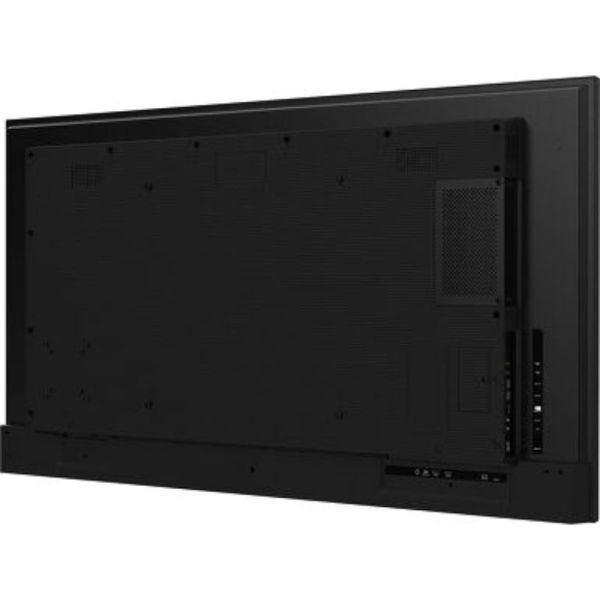

• Mounting: VESA 400 × 400 mm
• Power consumption: approx. 127 kWh/1000 h (typical), standby 0.5 W, off 0.3 W
• Weight: approx. 50 kg
• Dimensions (W×H×D): 1927 × 1098.5 × 57 mm
• Certifications and standards: CE, TÜV, RoHS, WEEE, etc.
