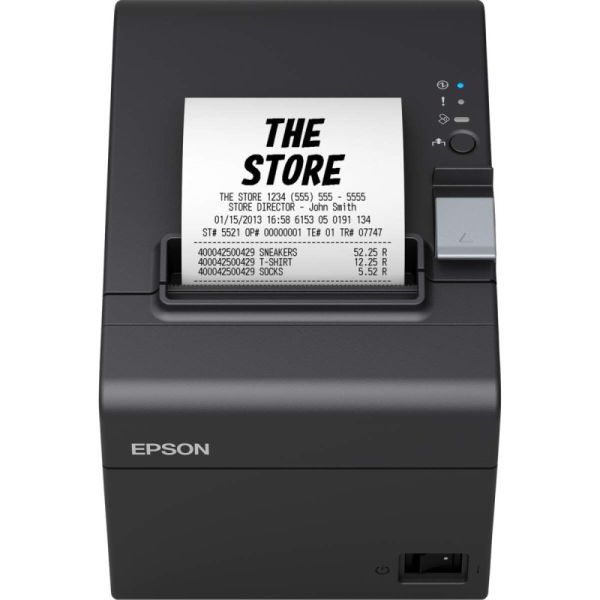

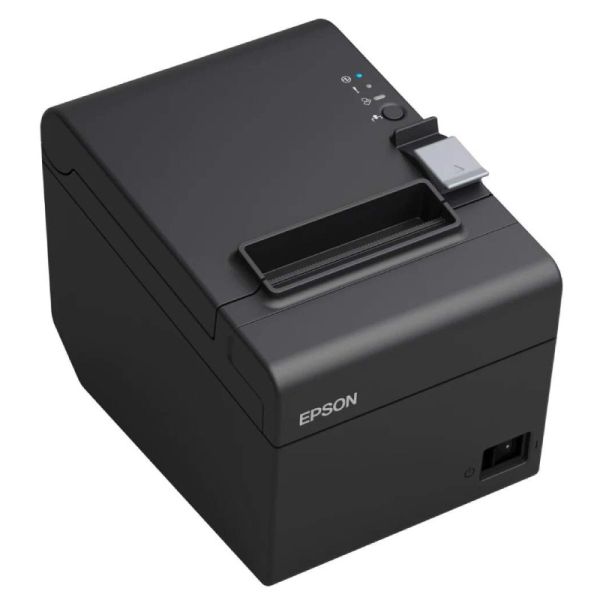

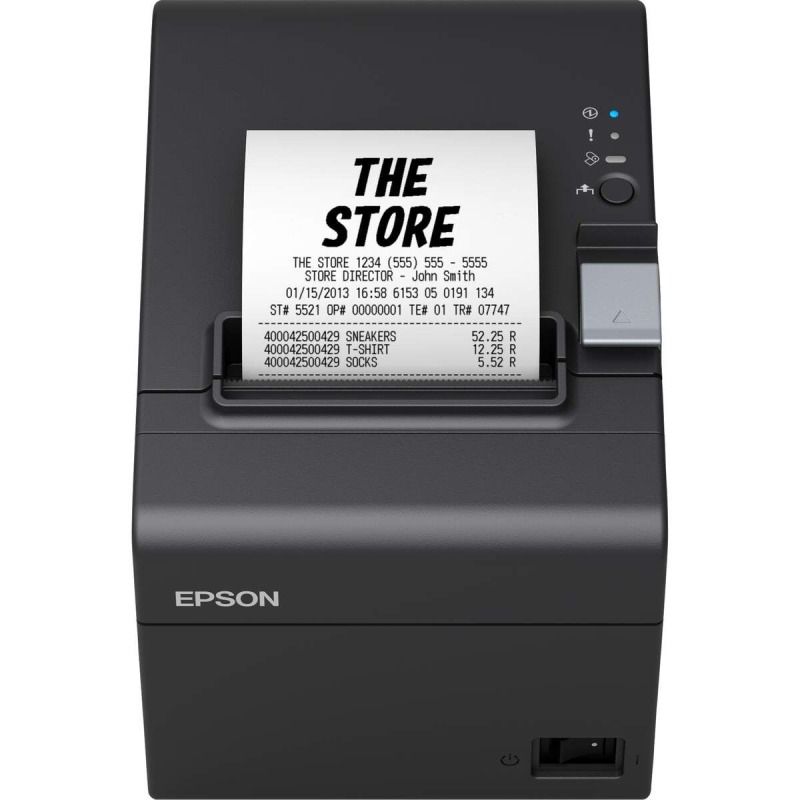

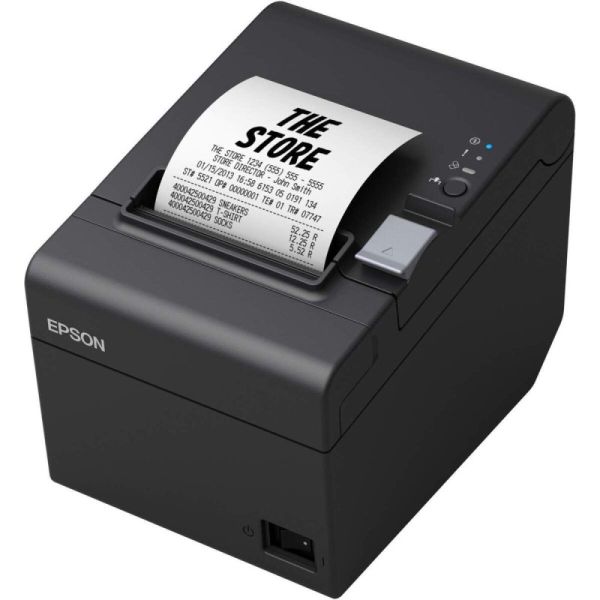

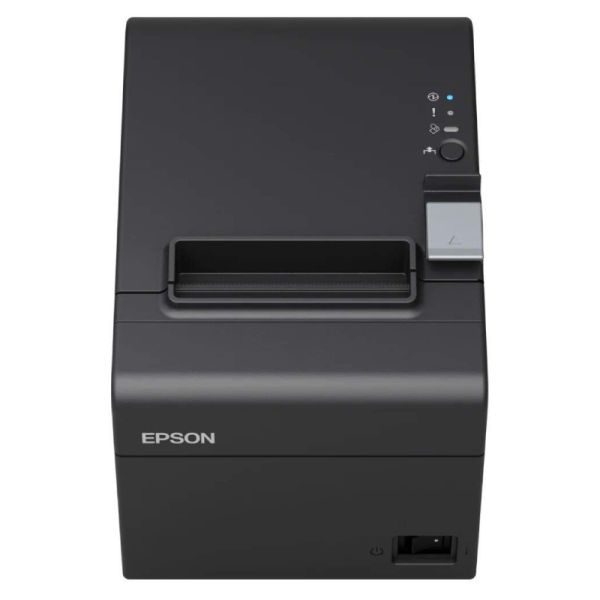

Epson TM-T20III USB Serial Receipt Printer
Internal ref: EPTMT20III // Manufacturer part #: C31CH51011
80 mm POS thermal printer with a print speed of 250 mm/s, featuring USB and serial connections, automatic paper-saving mode and a built-in paper cutter.
NEW
PC8338 - EU-UK Plug Adaptor
£122.99
£147.59 Incl. VAT
2 years of manufacturer warranty Subject to manufacturer conditions
Pay in 3 interest-free payments of Show more
Key features
- Fast thermal printing: speeds of up to 250 mm/s for efficient receipt printing
- Flexible wired connection: version equipped with USB and serial interfaces
- Paper savings: automatic reduction of margins, line breaks and barcode height
- 80 and 58 mm rolls: two widths supported
- Reliability: mechanism designed for 15 million lines and print head rated for 150 km
- Automatic cutter: partial cut with a lifespan of up to 1.5 million cuts
- Versatile installation: wall mount supplied to optimise space
In the box
- 1 x Epson TM-T20III printer
- 1 x Mains adaptor
- 1 x EURO mains cable
- Paper roll
- 1 x Paper roll spacer
- 1 x Wall mount
- Rubber feet
- 1 x Power button cover
- Documentation
Product description
Epson TM-T20III – Fast and cost-effective POS printing
The Epson TM-T20III is a thermal receipt printer designed for POS environments. With a print speed of up to 250 mm/s, it enables receipts to be printed quickly whilst offering features designed to minimise paper consumption.
250 mm/s to speed up the checkout process
Thermal printing technology eliminates the need for ink or toner. Its maximum speed of 250 mm/s helps to minimise queues during busy periods, whilst its resolution of 203 x 203 dpi ensures clear reproduction of printed information.
The mechanism accepts rolls with a width of 79.5 ± 0.5 mm or 57.5 ± 0.5 mm, with a maximum diameter of 83 mm. A spacer is supplied to easily adapt the printer to the paper size being used.
Reduce the amount of paper used
The TM-T20III features an automatic paper-saving function. It can reduce the top and bottom margins, line spacing and the height of barcodes to optimise the length of each receipt.
The top logo of the next receipt can also be printed before the current receipt is cut, which allows the top margin to be reduced by a further 12 mm.
Connectivity suitable for wired POS terminals

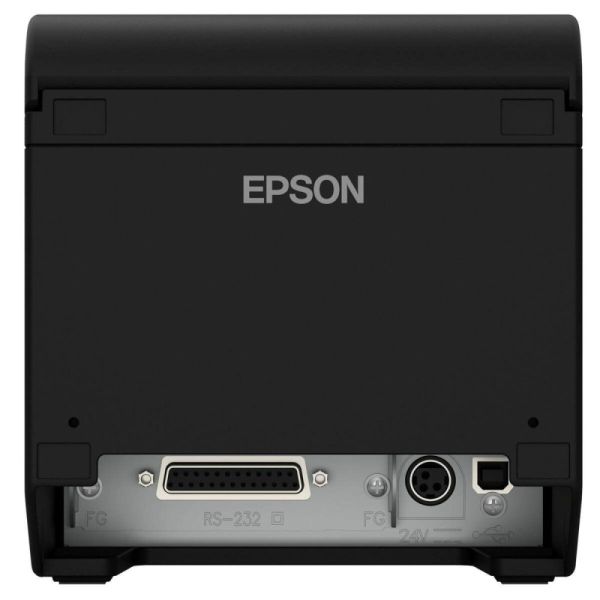

This version features a built-in USB connection and an RS-232 serial interface, providing a solution suitable for point-of-sale systems using a wired connection. A dedicated interface also allows the cash drawer to be opened.
This configuration makes it easier to integrate the printer into an existing point-of-sale system and allows a serial connection to be retained for business environments that still use this interface.
Mechanics designed for intensive use
The TM-T20III has a stated service life of 15 million lines. Its print head is rated to last for 150 km or 150 million pulses, whilst the mean time between failures (MTBF) specified by Epson is 360,000 hours.
The automatic partial-cut paper cutter is designed to handle up to 1.5 million cuts, thereby meeting the needs of retail outlets where large volumes of receipts are printed daily.
Simple consumables management
Two sensors facilitate paper management: an end-of-roll detector and a sensor that signals when the roll is running low. This allows staff to anticipate when the consumable needs changing and minimise interruptions at the till.
Measuring 140 x 199 x 146 mm and weighing 1.7 kg, the printer remains compact. The included wall mount offers an additional option when counter space is limited.
Use cases and compatibility

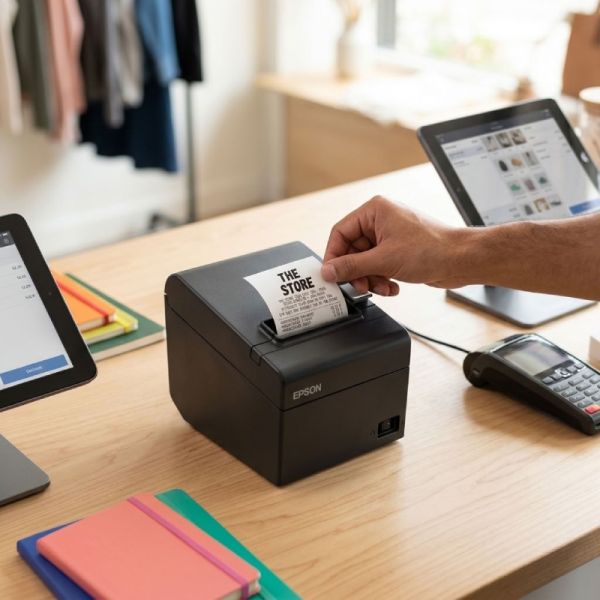

The Epson TM-T20III is suitable for neighbourhood shops, specialist shops, hotels, supermarkets and other POS environments. Its USB and RS-232 connections allow it to be integrated with various wired till systems, whilst its compatibility with 80 and 58 mm rolls provides greater flexibility for creating receipts.
Technical specifications:
| Feature | Value |
|---|---|
| Printing technology | Direct thermal |
| Print speed | 250 mm/s |
| Print resolution | 203 x 203 dpi |
| Colour printing | Black |
| Paper width | 79.5 ± 0.5 mm |
| Paper width | 57.5 ± 0.5 mm |
| Maximum roll diameter | 83 mm |
| Columns on 80 mm paper | 48 / 64 |
| Interface | USB |
| Serial interface | RS-232 |
| Cash drawer connection | Yes |
| Buffer memory | 4 KB or 45 bytes |
| Paper-saving function | Yes |
| Cut type | Partial cut |
| Paper cutter lifespan | 1,500,000 cuts |
| Mechanism service life | 15,000,000 lines |
| Print head service life | 150 km |
| Print head lifespan | 150,000,000 pulses |
| Average print volume | 60,000,000 lines |
| Mean time between failures | 360,000 hours |
| End-of-roll sensor | Yes |
| Low-paper sensor | Yes |
| Operating voltage | 24 V |
| Standby power consumption | 0.1 A |
| Average current consumption | 1.8 A |
| Operating noise level | 55 dB(A) |
| Operating temperature | 5 °C to 45 °C |
| Operating humidity | 10 % to 90 % |
| Dimensions | 140 x 199 x 146 mm |
| Weight | 1.7 kg |
| Colour | Black |
Files
Epson TM-T20III - Datasheet
Product Specs.
| Manufacturer part # | C31CH51011 |
|---|---|
| EAN | 8715946669649 |
| Warranty | 2 years |
| Connectivity | USB-A |
| Corded or cordless | Corded |
