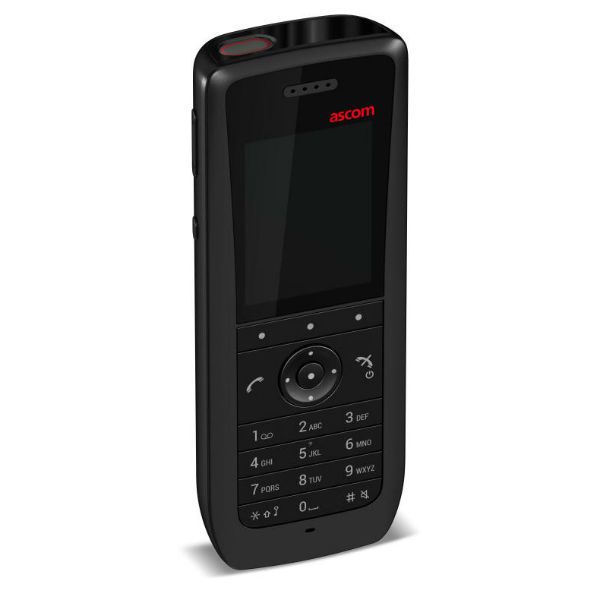

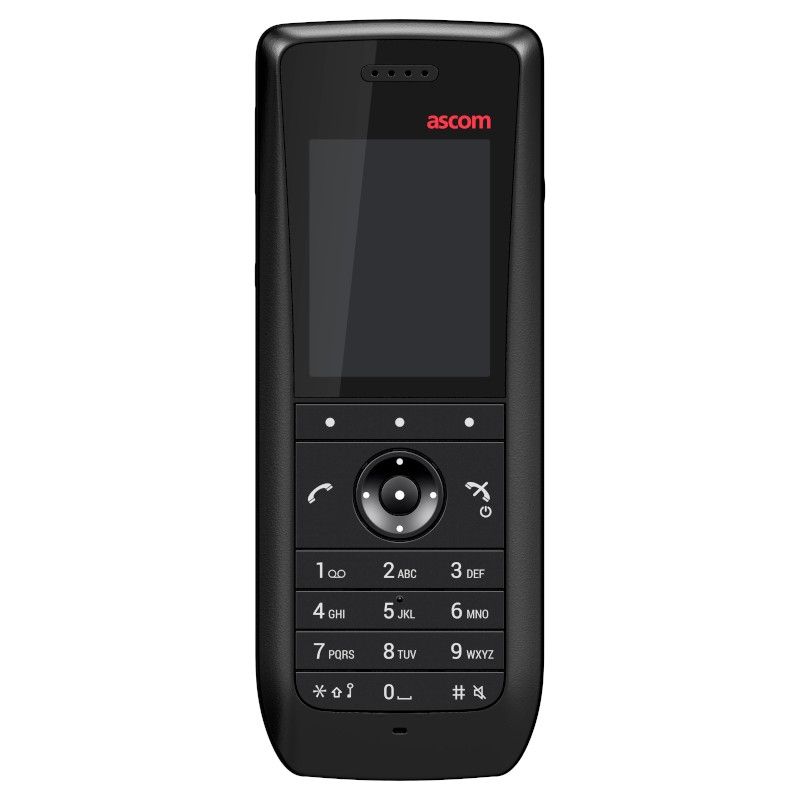

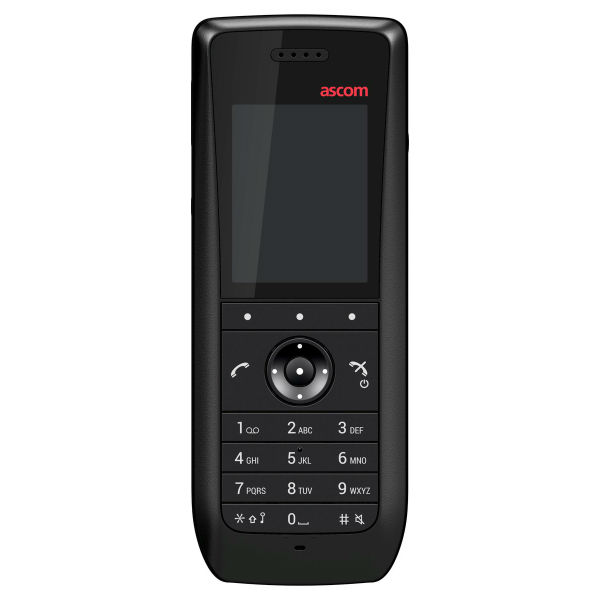

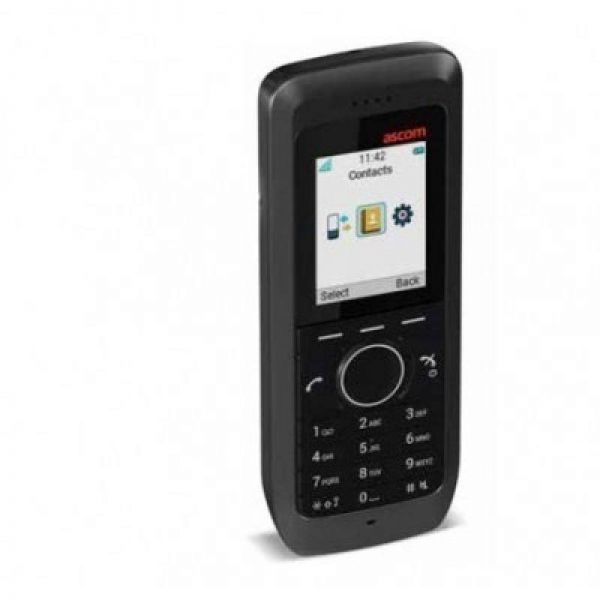

Ascom d63 Talker

Product description

Wideband audio—the Ascom d63 advantage

The Ascom d63 features wideband audio- extended bandwidth of 50Hz – 7,000Hz that delivers exceptional sound quality that goes beyond traditional telephony. It’s backward compatible, achieving outstanding sound quality even when communicating with conventional devices. The Ascom d63 voice quality ensures you hear everything.

Easy integration for smarter messaging

The Ascom d63 is designed to integrate and work seamlessly with third-party systems*. This is made possible by Ascom’s Unite middleware, which enables two-way texting and interactive messaging directly on the handset. Ascom Unite can also be configured to filter, sorts and prioritizes alerts — then ensures they are displayed on the Ascom d63’s bright, easy-to-read color screen

Personal alarms

The Ascom d63 is more than a telephony and messaging handset. It also features an alarm button that can be used/configured to trigger duress calls. DECT location functionality means colleagues are notified of the handset’s location — making the Ascom d63 particularly suitable for lone workers. Infrared location enables room-level accuracy.

Technical Features:

Interface:

• Colour LCD screen with high resolution and LED lighting (240 x 320 pixels)
• Indicator: Sound that indicates incoming calls, messages and charging.
• Vibration function
• 3 hotkeys, 5-way navigation, key to hang up, button to mute sound, volume control, multi-function button, mute button.
• 18 languages (+ 1 downloadable)

Audio:

• Adjustable ring tone
• Speaker: Duplex DSP

Telephony:

• Call storage capacity: 25 received, dialled and lost.
• Up to 5 emergency numbers (immediate call without unlocking the keyboard)
• Agenda: Central (unlimited), company (1000 entries), local (250 entries)

Messages:

• Up to 160 characters per message
• Ability to store up to 20,000 characters, 30 messages received/sent.

Radio:

• Automatic detection of DECT protocol
• Frequency: 1880-1900 MHz
• Modulation: GFSK
• Channel separation: 1728 MHz
• Integral Antenna. Sensitivity: -93 dBm
• Radiation power: 250 mW

Battery:

• Type: Li-Polymer
• Autonomy: 20 hours in conversation / 240 hours on standby
• Charging time: 4 hours

Connections:

• Multi-purpose connector for charging the battery, software downloads and configuration
• Jack 3.5 mm for wired headphones
• Bluetooth for wireless headphones

Security and encryption:

• Complete support for DECT Security EN300 444 N35
