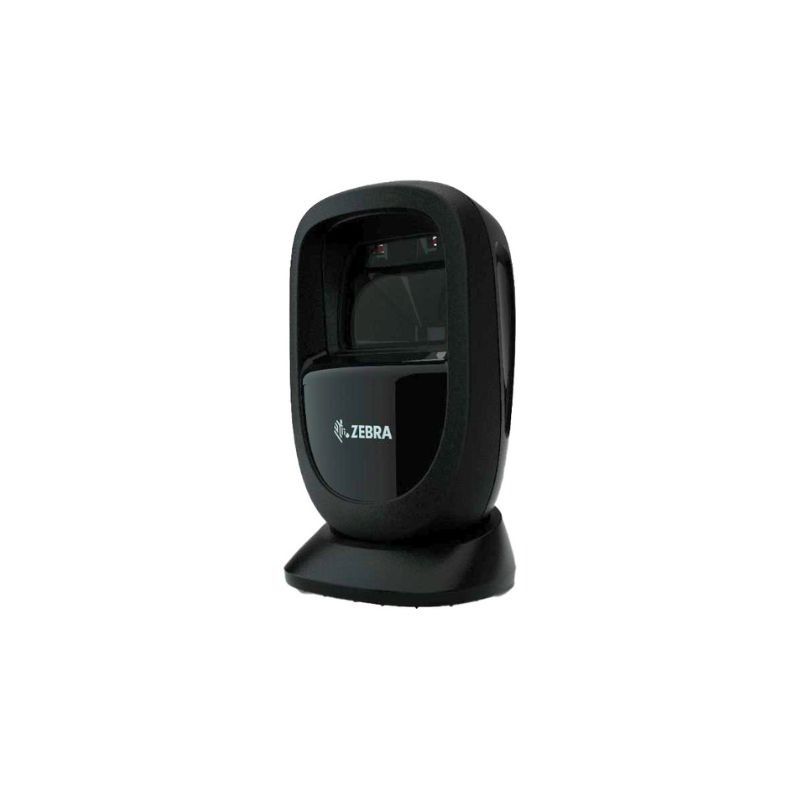

Zebra DS9308 Standard-range USB 2D scanner
Internal ref: ZEBDS9308 // Manufacturer part #: DS9308-SR4U2100AZE
USB 1D/2D presentation scanner with a 1280 x 800-pixel sensor, standard-range scanning and a compact design for checkouts and retail outlets.
NEW
£148.99
£178.79 Incl. VAT
3 years of manufacturer warranty Subject to manufacturer conditions
Pay in 3 interest-free payments of Show more
Key features
- 1D/2D scanning: scans printed and on-screen barcodes
- 1,280 x 800-pixel sensor: accurate barcode scanning
- Standard range: optimised for short-range scanning
- USB connection: ready to connect to point-of-sale terminals
- Compact design: takes up little space and allows for hands-free use
- IP52 protection rating
- Zebra DataCapture DNA for scanner configuration and management
In the box
- 1x Zebra DS9308 black scanner
- 1x Shielded USB cable
Product description
Zebra DS9308 - Compact 2D scanning for the point of sale
Fast checkout with omnidirectional scanning
The Zebra DS9308 is a 1D and 2D presentation scanner designed for POS terminals where scanning speed and a compact footprint are essential. The Standard Range configuration enables codes to be scanned quickly during day-to-day sales transactions.
The 1280 x 800-pixel sensor enables the reading of 1D and 2D codes, including those displayed on digital devices. Omnidirectional scanning reduces the need to precisely align the code in front of the scanner.
Hands-free and manual use
The compact design allows the scanner to be used directly on the counter in hands-free mode. When a specific code needs to be selected, the device can be held and used manually, offering greater flexibility at the workstation.
The LED aiming point makes it easier to position the barcode, whilst the audible beep and LED indicator provide immediate feedback on a successful scan.
Compact and durable for everyday use
Measuring approximately 14.5 x 8.6 x 8.3 cm and weighing 318 g, the Zebra DS9308 integrates easily even on counters with limited space. Its IP52 rating and resistance to drops from 1.5 m onto concrete make it suitable for continuous professional use.
The kit is supplied in the Midnight Black version with a USB connection. The included shielded USB cable allows for a wired connection to the host system and powers the scanner via the compatible USB connection.
Ideal for POS, retail and service counters
The Zebra DS9308 is suitable for shop checkouts, supermarkets, specialist retail outlets, fast-food outlets and service counters. Its ability to read both paper and digital codes also makes it suitable for managing vouchers, loyalty schemes and e-tickets. The USB kit is designed for integration with POS terminals and computers equipped with a compatible USB connection.
Technical specifications:
| Feature | Value |
|---|---|
| Type | Wired presentation scanner |
| Scanning technology | 2D imager |
| Supported barcodes | 1D and 2D |
| Sensor resolution | 1280 x 800 pixels |
| Reading range | Standard range |
| Maximum reading distance | 27.9 cm |
| Minimum resolution | 3 mil |
| Scan speed | Up to 305 cm/s |
| Field of view | 52° horizontal x 33° vertical |
| Kit interface | USB |
| Connection | Wired |
| Protection | IP52 |
| Drop resistance | 1.5 m onto concrete |
| Operating temperature | 0 °C to 50 °C |
| Dimensions | 14.5 x 8.6 x 8.3 cm |
| Weight | 318 g |
| Colour | Midnight Black |
| Warranty | 3 years |
Files
Zebra DS9300 - Datasheet
Product Specs.
| Manufacturer part # | DS9308-SR4U2100AZE |
|---|---|
| EAN | 5704174202202 |
| Warranty | 3 years |
| Type of barcode scanner | Wired |
| Reader | 2D |
