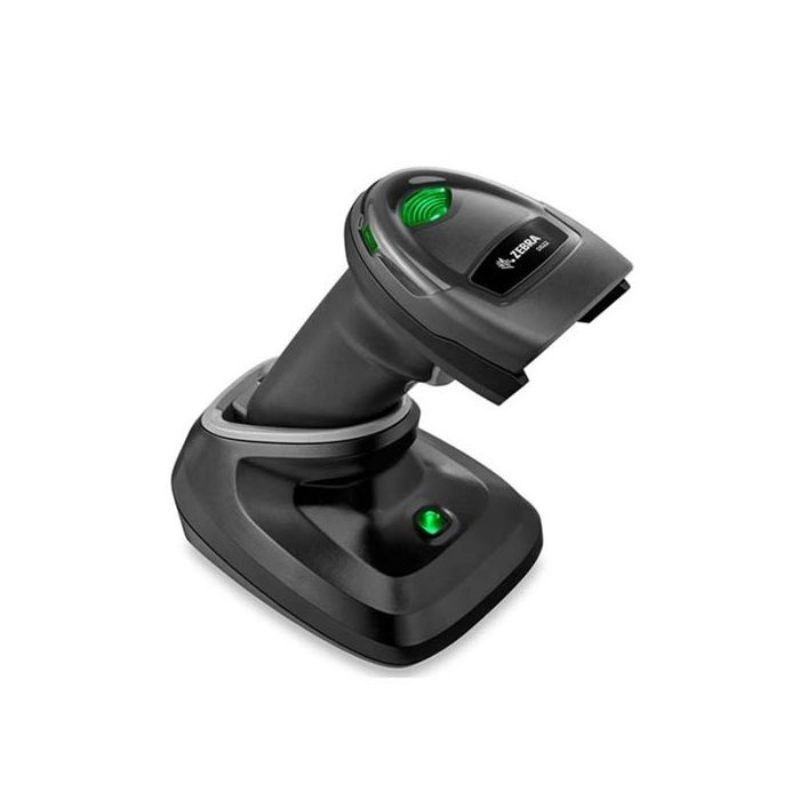

Zebra DS2278 SR Bluetooth 1D/2D Scanner
Internal ref: ZEBDS2278 // Manufacturer part #: DS2278-SR7U2100PRW
Wireless 1D and 2D scanner with Bluetooth, PRZM technology and omnidirectional scanning to speed up payments and code scanning in professional environments.
NEW
£157.99
£189.59 Incl. VAT
3 years of manufacturer warranty Subject to manufacturer conditions
Pay in 3 interest-free payments of Show more
Key features
- 1D/2D scanning: captures linear barcodes, QR codes, Data Matrix, PDF417 and other symbologies
- Bluetooth 4.0: wireless operation with HID and serial port profiles
- Zebra PRZM technology: optimises the decoding of poor-quality codes
- Omnidirectional scanning: captures codes without the need for prior alignment with the scanner
- Wide reading range: between 13 mm and 36.8 cm
- 2,400 mAh battery
- Robust: withstands multiple drops from a height of 1.5 m onto concrete

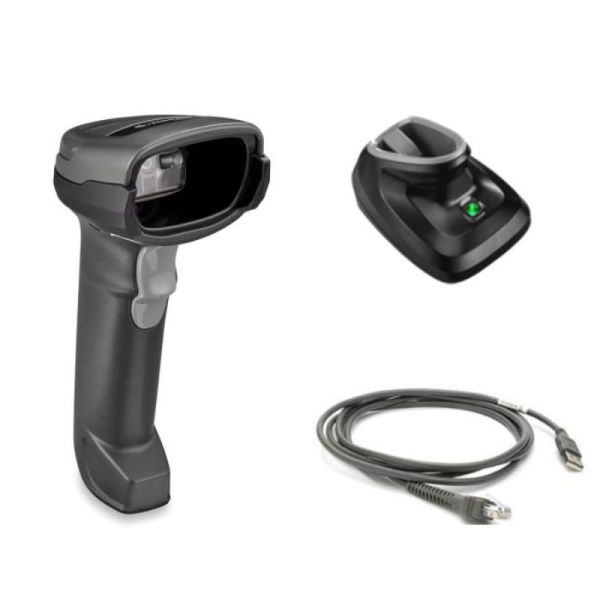

In the box
- 1x Zebra DS2278-SR scanner
- 1x Charging and display stand
- 1x USB cable
Product description
Zebra DS2278 SR - Simple and efficient wireless 1D and 2D scanning
The Zebra DS2278-SR is a wireless 1D and 2D barcode scanner designed to simplify data capture operations. It combines Bluetooth connectivity, omnidirectional scanning and Zebra PRZM decoding technology to make work easier at points of sale and in other professional environments.
Captures 1D and 2D codes
The DS2278-SR supports a wide variety of 1D and 2D symbologies. It supports codes such as Code 39, Code 128, UPC/EAN, GS1 DataBar, PDF417, Aztec, Data Matrix, MaxiCode, QR, Micro QR and Han Xin, as well as postcodes.
Its omnidirectional scanning eliminates the need to pre-align the scanner with the barcode, helping to achieve a more natural and faster scan during repetitive operations.
PRZM technology for difficult barcodes
Zebra PRZM intelligent imaging technology improves the decoding of low-quality barcodes. The system is designed to facilitate first-pass reading and reduce interruptions during scanning operations.
Bluetooth connectivity for wireless operation
The DS2278 features Bluetooth 4.0 with BLE Class 2 and supports HID and serial port profiles. Zebra’s Scan-to-Connect technology also makes it easy to pair with compatible Bluetooth computers, tablets and smartphones.
Battery for long working days
Its 2400 mAh lithium-ion battery is designed to keep the scanner operational throughout intensive shifts. Zebra specifies up to 100,000 scans per charge at 60 scans per minute under its test conditions.
The stated battery life is up to 100 hours on a full charge, depending on usage patterns. The scanner also supports various charging methods, including docking and USB connection.
Ready for daily professional use
The DS2278 is designed to withstand multiple drops from 1.5 m onto concrete and has an IP42 rating. It can operate between 0 and 50 °C and withstands ambient light levels of up to 107,600 lux.
Use cases and compatibility
The Zebra DS2278-SR is suitable for retail, point-of-sale, loyalty programmes, hospitality, transport, logistics, administration and light manufacturing. Its 1D and 2D capability allows a single scanner to be used for traditional barcodes and two-dimensional formats.
Technical specifications:
| Feature | Value |
|---|---|
| Reader type | Wireless |
| Compatible codes | 1D and 2D |
| Image sensor | 640 x 480 pixels |
| Scanning type | Omnidirectional |
| Field of view | 32.8° horizontal x 24.8° vertical |
| Minimum print contrast | 25% |
| Code 39 resolution | 4 mil |
| Data Matrix resolution | 6 mil |
| QR resolution | 6.7 mil |
| Wireless technology | Bluetooth 4.0 with BLE Class 2 |
| Bluetooth range | Up to 10 m |
| Bluetooth profiles | HID and serial port |
| Battery capacity | 2400 mAh |
| Battery technology | Lithium-ion |
| Scans per charge | Up to 100,000 at 60 scans/min |
| Battery life | Up to 100 hours |
| Protection | IP42 |
| Drop resistance | Multiple drops from 1.5 m onto concrete |
| ESD protection | ±15 kV air / ±8 kV direct / ±8 kV indirect |
| Ambient light | 0 to 107,600 lux |
| Humidity | 5 per cent to 95 per cent, non-condensing |
| Operating temperature | 0 to 50 °C |
| Storage temperature | –40 to 70 °C |
| Dimensions | 175 x 66 x 99 mm |
| Colour | Black |
Files
Zebra DS2200 Series - Datasheet
Product Specs.
| Manufacturer part # | DS2278-SR7U2100PRW |
|---|---|
| EAN | 4060533180224 |
| Warranty | 3 years |
| Type of barcode scanner | Wireless |
| Reader | 1D & 2D |
| Rugged | Not Sturdy |
