Yealink MVC S80-C5U Microsoft Teams Rooms System
Internal ref: YEAMVCS80 // Manufacturer part #: 1106798
Native Microsoft Teams Rooms kit with SmartVision 80 camera, MTouch Plus controller and MCore 4 PC for large rooms.
SAVING £1,483.00
£3,995.99 - £4,795.19 Incl. VAT
Bulk orders, request a quote now!
2 years of manufacturer warranty Subject to manufacturer conditions
Pay in 3 interest-free payments of Show more
Key features
- Four-lens SmartVision 80 covers the entire room.
- PTZ camera with 20x optical zoom for clarity.
- AI tracking: IntelliFocus, Presenter, Speaker, Auto Framing.
- Native Microsoft Teams interface with one-touch start.
- Wired and wireless sharing; 1080p30 via WPP30 dongle.
- HDMI-In 4K auxiliary stream input on MCore 4.
- Single CAT5e cable links MCore and MTouch Plus.
- Remote management via Yealink Device Management.
In the box
- MCore 4
- MTouch Plus

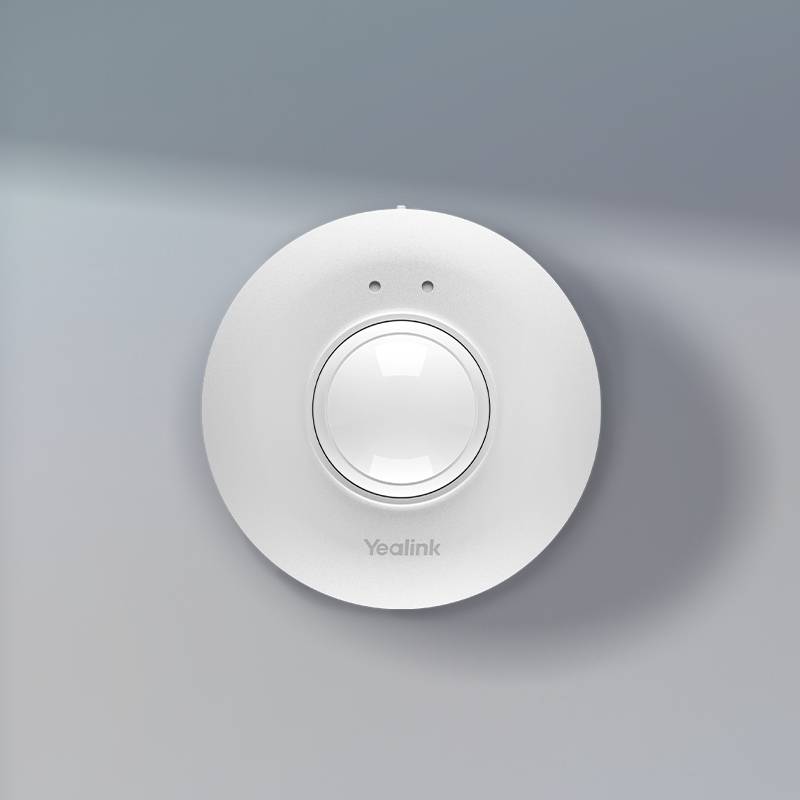

- RoomSensor
- SmartVision 80
Product range:
Product description
Yealink MVC S80-C5U Microsoft Teams Rooms System
Complete Microsoft Teams Rooms bundle for large meeting rooms: MCore 4 mini-PC (Intel Ultra5 125H), MTouch Plus 11.6" touch panel, SmartVision 80 four-lens camera and RoomSensor showing room metrics, with wired/wireless sharing.
In what context do I need this product?
Designed for large meeting spaces needing premium framing and control. SmartVision 80’s multi-camera array covers every seat, while additional SmartVision 80 units can extend coverage. Pair with compatible Yealink microphones/speakers to scale audio. MTouch Plus centralises one-touch meeting control.
Audio and video specifications
SmartVision 80: PTZ 20× zoom; DFOV/HFOV/VFOV—69°/61.5°/36° (PTZ), 110°/98°/82° (panoramic), 51°/41.6°/32° (telephoto). AI: IntelliFrame, IntelliFocus, Presenter/Speaker Tracking, Auto Framing. Audio devices: VCM35/36, CM20, MSpeaker Pro.
On which platform/device can I use it?
Built for Microsoft Teams Rooms with a native Teams interface and Windows 11 IoT Enterprise. Operates as a dedicated room system using the MCore 4 mini-PC and MTouch Plus controller.
Collaborative features: how it stands out
Share content wirelessly via Yealink WPP30 (up to 1080p/30fps) or wired through MTouch Plus over USB-C/HDMI; MCore 4 also accepts 4K HDMI-In as an auxiliary stream.
Security features
Security features include TPM 2.0 and Kernel DMA protections listed for MCore 4, plus a physical security slot.
Technical specifications
- MCore 4: Intel Ultra5 125H, 16GB DDR5, 256GB SSD.
- Video I/O: HDMI-Out 2.1×1, HDMI-Out 2.0×2, HDMI-In×1.
- Ports: USB-A 3.0×4, RJ-45 MTouch, 1GbE, 3.5 mm.
- Wireless & security: Wi-Fi 802.11ax, BT 5.2, TPM 2.0, Kernel DMA.
- MTouch Plus: 11.6″ 1080p touch; HDMI/USB-C in; PD support.
- RoomSensor: 120° detection; ±20° adjust; 0–40 °C; 10–95 % RH.
- SmartVision 80: PTZ 20×; panoramic/telephoto lenses; AI framing/tracking.
- Cabling & sharing: Single CAT5e link; WPP30 1080p30; 4K HDMI-In auxiliary.
- Preload: Windows 11 IoT, Teams Rooms app, RoomConnect.
Files
Yealink MVC S80-C5U Microsoft Teams Rooms System - Datasheet (EN)
Product Specs.
| Manufacturer part # | 1106798 |
|---|---|
| Warranty | 2 years |
| Video Solution type | Room Solution |
| Room Size | Large Meeting Room (+12) |
| Connects to | With PC/Laptop |
| Compatible With | Microsoft Teams |
| Camera field of view | 110° |
| Camera Features | Auto Framing and Tracking |
| Other Features | Content Sharing, With Windows |
| Sold as pack | No |
