Yealink CS10D SkySound Pro Audio Ceiling Speaker

Product description

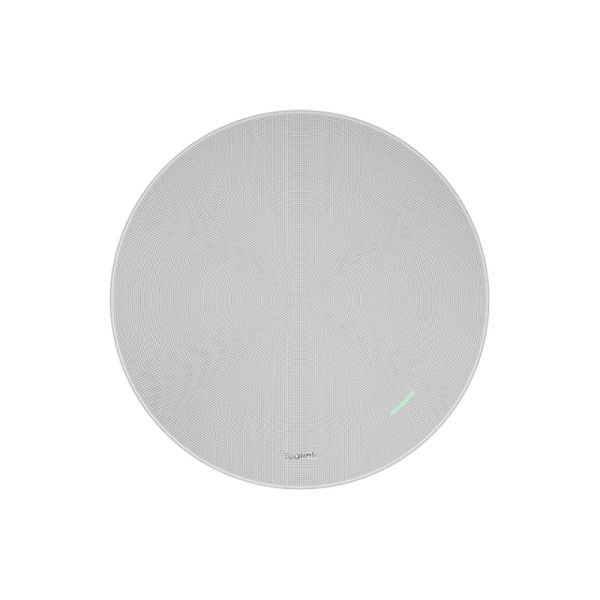

Yealink CS10D SkySound Pro Audio Ceiling Speaker

The Yealink CS10-D is a 2-way Dante-enabled ceiling speaker designed for modern meeting spaces, offering high-fidelity sound with sleek, low-profile aesthetics. Ideal for conference rooms.

Recommended Usage Environments

• Conference rooms
• Meeting rooms with suspended ceilings
• Scalable for multi-speaker setups
• Compatible with different grid and ceiling types
• Blends discreetly into modern interiors

Key Functional Specifications

The CS10-D features a 5.7" woofer and 1.1" tweeter for clear, dynamic sound. It delivers up to 99dB SPL and operates via PoE+ with Dante protocol for efficient digital audio networking. The low-profile 120mm depth suits varied ceiling types.

Platform and Device Compatibility

Compatible with Dante-enabled systems via RJ-45. Supports PoE+ (IEEE 802.3at class 4) for power and audio over Ethernet.

User Experience & Features

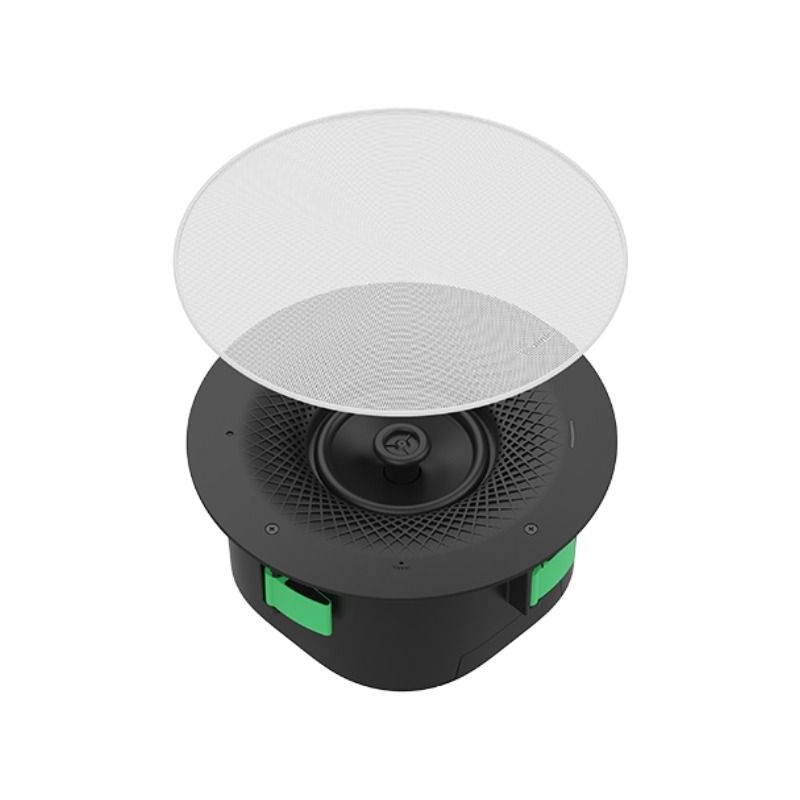

 The CS10-D offers seamless integration with digital audio networks and ceiling infrastructure. Its paintable magnetic grille and discreet profile make it visually unobtrusive, while tuned audio enhances meeting speech clarity.

Technical specifications

• Frequency response: 100Hz–20kHz (-6dB)
• Sensitivity: 88dB @1m 1W
• Max SPL: 99dB @20W 1m
• Impedance: 8
• Coverage angle: 120°
• Dimensions: 294×H125.8mm (with mesh)
• Weight: 2808g (speaker), 207g (mesh)
• Operating temp: 0–50 c
• Humidity: 5%–90%
• Power: 24W (typical 20W)
• Interface: 1× RJ-45
• Materials: PC/ABS, PA with 15% GF, aluminum alloy
• Plenum rated: UL 2043
