Yealink CM50 SkySound Pro Audio Ceiling Microphone

Product description

Yealink CM50 SkySound Pro Audio Ceiling Microphone

The Yealink CM50 is a professional Dante ceiling microphone system designed for high-end conferencing environments. Equipped with 127 omnidirectional microphone units and advanced beamforming technology, it offers precise voice capture and crystal-clear audio quality. Its AI-powered noise suppression and echo cancellation ensure superior sound performance, even in complex acoustic settings. The CM50 supports up to 8 customizable pickup zones, reducing ambient noise and improving speech intelligibility.

Recommended Usage Environments

• Large and complex meeting rooms
• Corporate conference spaces
• Environments requiring audio zoning
• Teams Rooms with AV integration
• Scalable Dante-based AV setups

Key Functional Specifications

With 127 omnidirectional units and beamforming technology, the CM50 captures voices within an effective 5-metre radius. It supports 8 pickup zones and includes AI-powered noise reduction, echo cancellation, and feedback suppression for optimal voice clarity and minimal setup complexity.

Platform and Device Compatibility

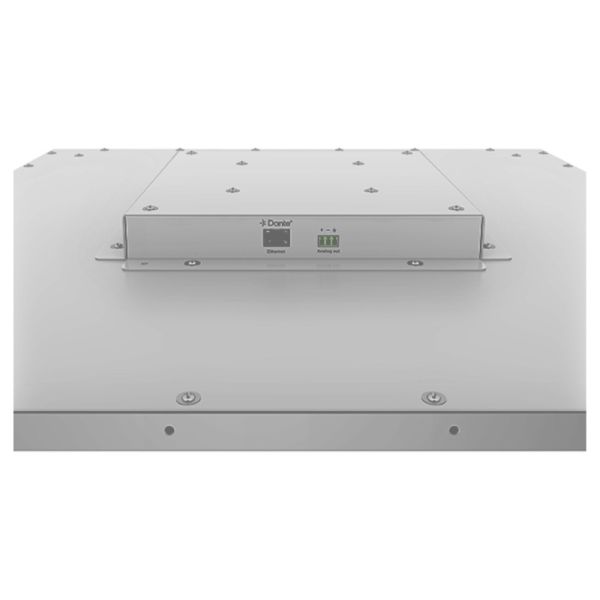

Fully compatible with Microsoft Teams and Dante-enabled systems. Requires only a single PoE+ cable for both power and data. Includes analog output via Phoenix connectors.

User Experience & Features

Users benefit from effortless installation by ceiling tile replacement. Its AI-driven sound tuning adapts to the room environment, ensuring clear communication without microphones being held or worn. Mute sync and camera tracking enhance the meeting experience.

Technical Specifications

• Frequency response: 120–20KHz
• Sensitivity: 0 dBV/Pa @94dBSPL
• Max SPL: 122dB at <1% THD
• Dynamic range: 86dB
• Output channels: 8+2 Dante
• Input channels: 2 Dante (AEC, AFC)
• Sampling rate: 48KHz / 24bit
• Power: IEEE PoE+ (802.3at Class 4), 17–19.3W
• Operating temp: 0–40°C, Humidity: 0–93%RH
• Dimensions: 592×592×56 mm
• Weight: 5.15 kg
• Interface: 1×RJ-45, 1×3-pin Phoenix
• Certifications: Plenum Rated UL 2043
