Yealink AP08 SkySound Pro Audio DSP

Product description

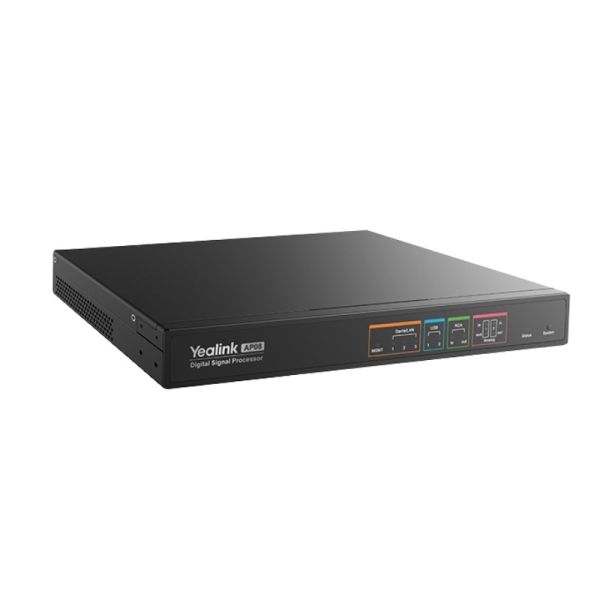

Yealink AP08 SkySound Pro Audio DSP

The Yealink AP08 is a powerful Dante digital signal processor designed for professional meeting rooms. It features 16x16 audio channels, advanced AEC, and intelligent acoustic adaptation via Room Designer software, ensuring crystal-clear audio and easy deployment.

Recommended Usage Environments

• Meeting rooms with Yealink MVC integration
• Environments requiring automated audio design
• Scenarios using Dante and analog audio infrastructure
• Rooms optimised using Room Designer software

Key Functional Specifications

Equipped with 16x16 Dante channels and 4x4 analog I/O, the AP08 includes 8 AEC-enabled channels, dual USB 3.0 interfaces, and acoustic adaptation powered by Room Designer. It supports 48V phantom power and advanced echo and noise control.

Platform and Device Compatibility

Compatible with Yealink MVC systems. Includes Dante network connectivity and USB 3.0 (Type-B) device interfaces. Control options via RJ-45, RS232, and GPIO ports.

User Experience & Features

One-button deployment enables automatic audio routing and acoustic tuning when Yealink devices share the same network. The Room Designer tool automates setup based on room data.

Technical specifications

• Dante I/O: 16 input / 16 output, 8 AEC channels
• Frequency Response (Dante): 50–20kHz
• Frequency Response (Analog): 20–20kHz
• Sampling Rate: 48kHz
• Bit Depth: 24bit (Dante), 16/24bit (USB)
• Dynamic Range: Dante 86dB; Analog In 96dB; Analog Out 98dB
• Analog Inputs: 2 × RCA, 2 × 3-pin Phoenix
• Analog Outputs: 2 × RCA, 2 × 3-pin Phoenix
• USB I/O: 2 input, 2 output (USB 3.0 Type-B)
• Control Ports: RJ-45 (MGMT), RS232, 8-pin GPIO in/out
• Phantom Power: +48VDC, 10mA max
• Power Supply: 100–240 V, 50/60 Hz, 2A
• Rated Power: 105W (full-load), 15W no-load (typ. 12W)
• Dimensions: 360 × 189 × 44 mm
• Weight: 2.2 kg
• Operating Temp: 0–40℃
• Storage Temp: -30–70℃
• Operating Humidity: 0–93% RH
• Colour: Advanced Black
• Material: SGCC
