Vision VFM-W4X4TV/2 Tilting wall mount
Internal ref: VISIONVFMW4X4TV2 // Manufacturer part #: VFM-W4X4TV/2
A sturdy tilting wall mount for screens measuring 32 to 65 inches, compatible with VESA 400x400 and designed for simple and reliable professional installations.
NEW
£51.99
£62.39 Incl. VAT
for life of manufacturer warranty Subject to manufacturer conditions
Pay in 3 interest-free payments of Show more
Key features
- Compatibility: screens from 32 to 65 inches
- VESA standards: 400 x 400, 400 x 300, 400 x 200, 300 x 400, 300 x 300, 200 x 400, 200 x 300, 200 x 200, 150 x 200 mm
- High load capacity: up to 60 kg
- Tilt from +3° to -12° for an optimal viewing angle
- Security option: lockable system with padlock
- Cable management: integrated cable routing for a tidy installation
In the box
- 1 x Tilting wall bracket
- 4 x 14 mm M5 screws
- 4 x 14 mm M6 screws
- 4 x 30 mm M6 screws
- 4 x 30 mm M8 screws
- 4 x 50 mm M8 screws
- Documentation
Product description
Vision VFM-W4X4TV/2 – Reliable tilting wall mount for professional displays
The Vision VFM-W4X4TV/2 wall mount is designed to securely mount flat-screen displays from 32 to 65 inches. Compatible with VESA standards up to 400 x 400 mm, it supports a maximum load of 60 kg, making it suitable for the majority of professional screens on the market.
Adjustable tilt for optimal viewing comfort
The tilt system allows adjustment from +3° upwards to -12° downwards. This allows you to easily adjust the viewing angle according to the installation height and improve content readability in all environments.
Quick and flexible installation
Thanks to its design featuring slotted holes and a pre-assembled wall bracket, installation is quick and easy. The mount also allows for lateral adjustment to ensure precise screen alignment once fixed in place.
Compact design and discreet integration
With a depth of just 49 mm, this mount keeps the screen close to the wall for an aesthetic and professional look. Its open design also facilitates cable routing for a clean and organised installation.
Safety and reliability for everyday use
The integrated locking system prevents accidental removal of the screen. Mounting points also allow the addition of a padlock to secure the installation in sensitive public or professional environments.
A cost-effective solution without compromise
Designed for budget-conscious installations, this mount prioritises simplicity whilst ensuring robustness and durability. It perfectly meets the needs of professional integrators and installers.
Use cases and compatibility
Ideal for meeting rooms, digital signage, public spaces or retail. Compatible with most flat-panel LCD and LED screens (excluding curved screens), it integrates easily into any audiovisual installation project.

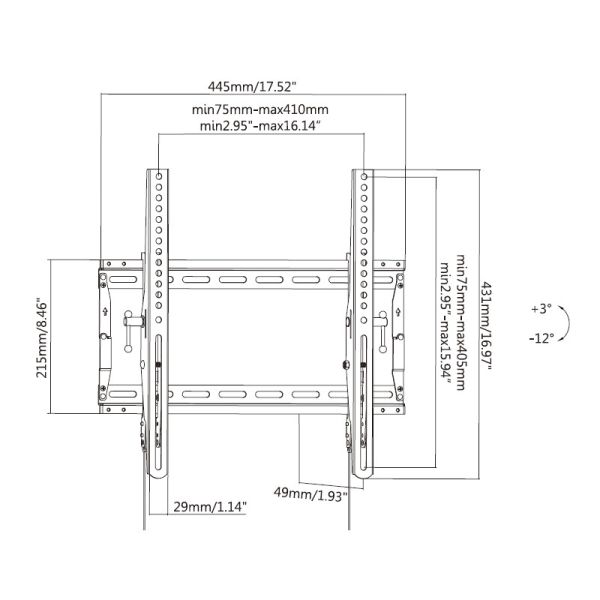

Technical specifications:
| Feature | Value |
|---|---|
| Product type | Tilting wall mount |
| Compatible screen size | 32 to 65 inches |
| VESA compatibility | Up to 400 x 400 mm |
| Maximum load | 60 kg |
| Tilt | +3° / -12° |
| Distance from wall | 49 mm |
| Dimensions | 445 x 431 x 49 mm |
| Weight | 1.86 kg |
| Material | Cold-rolled steel |
| Colour | Black |
| Cable management | Yes |
| Locking system | Yes (optional padlock) |
| Screen compatibility | Flat LCD and LED screens |
| Standards | RoHS, ADA |
| Warranty | Lifetime (return to manufacturer) |
Files
Vision VFM-W4X4TV/2 - Datasheet
Product Specs.
| Manufacturer part # | VFM-W4X4TV/2 |
|---|---|
| EAN | 6333311000006 |
| Warranty | for life |
| Accessory Type | Wall mounting bracket |
| Is Accessory of | Screen |
| Lone worker protection | No |
