Samsung24 Inch Kiosk (Windows, Celeron) KMC-W

Product description

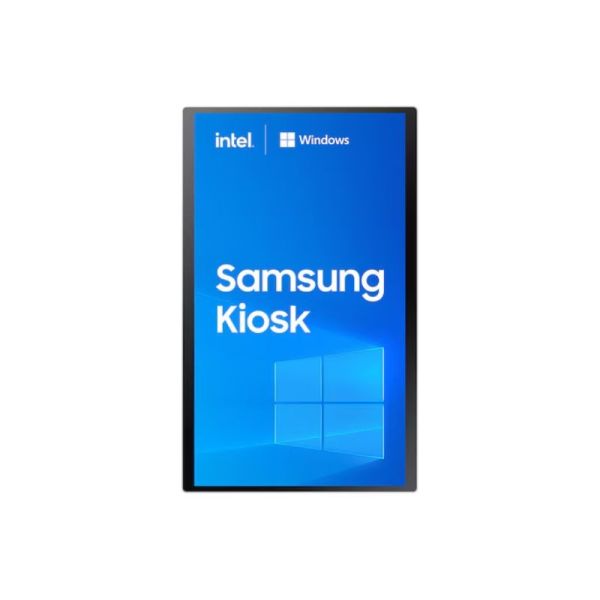

Samsung KM24C-C Kiosk Display

The Samsung LM24KMCCBGCXEN is a 24-inch kiosk touch display with Full HD resolution and integrated Windows IoT Enterprise operating system. Designed for commercial use such as self-ordering, digital information kiosks and interactive customer terminals. Designed for indoor use and continuous operation (16/7).

Display overview

The key features that set this display apart from its competitors:

• Capacitive touchscreen with high accuracy and fast response
• Embedded Intel Celeron SoC with 256 GB flash memory, no external PC required
• Modern LED technology with ADS panel for good colour representation and viewing angles
• Brightness of 250 cd/m² for indoor use, no strong ambient light required

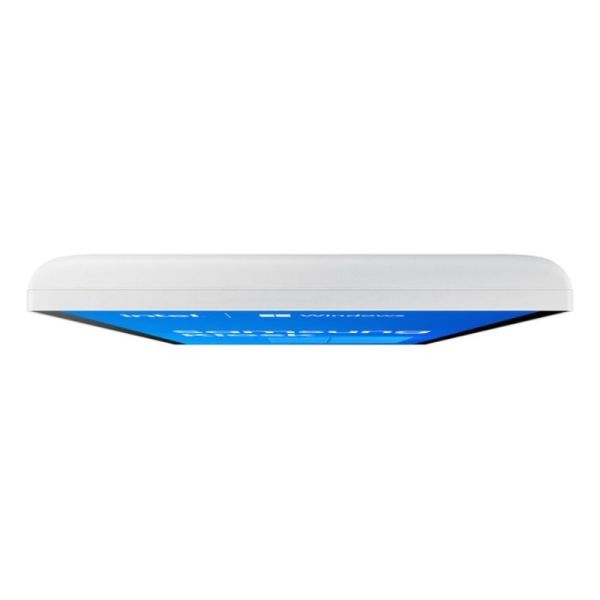

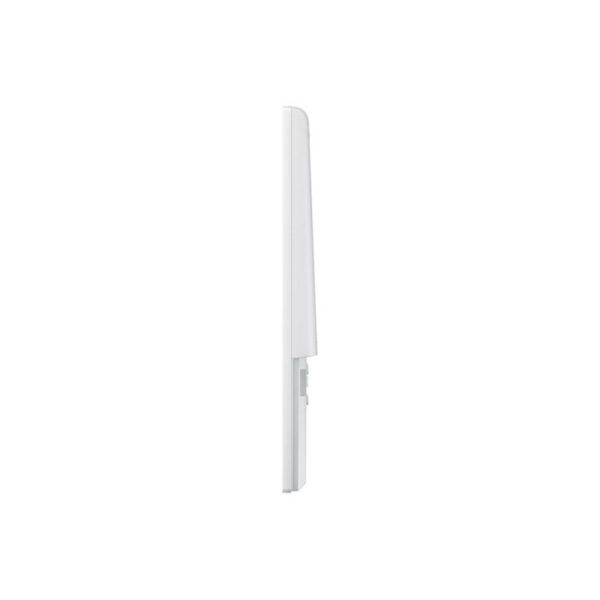

• Slim housing (depth approx. 48.8 mm), moderate weight (~4.3 kg)

Video specifications and performance

This 24" screen uses a Full HD LED display with a resolution of 1,920 x 1,080 pixels. The panel type is ADS, with a typical contrast ratio of approximately 1,000:1 and dynamic contrast ("Mega Contrast") included. Response time approx. 14 ms, viewing angle 178° horizontally and vertically. Supports display frequencies of approximately 48–75 Hz vertically and approximately 56–84.5 kHz horizontally. Image brightness is around 250 cd/m², ideal for indoor use without direct sunlight. Anti-reflective film/anti-reflective glass available.

Device and software compatibility

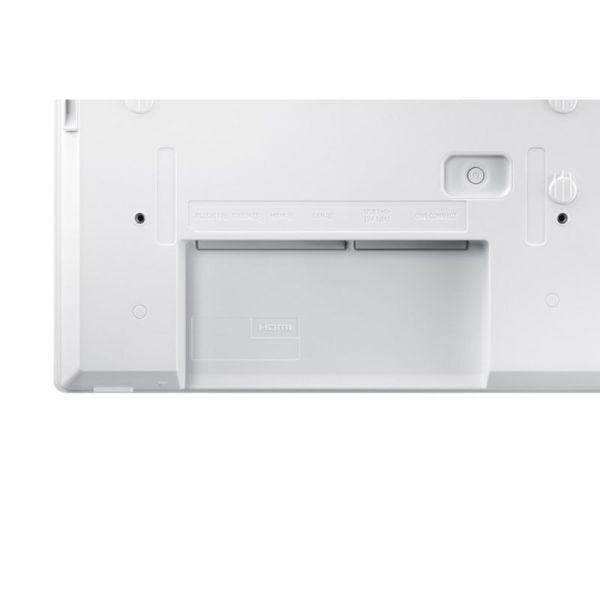

The device operates independently with integrated SoC (Intel Celeron) and Windows 10 IoT Enterprise pre-installed. Supports media players, digital signage solutions and kiosk applications without additional hardware. Connection via USB, mains connection and optional interfaces via the connector box (USB, RS232, RJ45).

Collaborative features

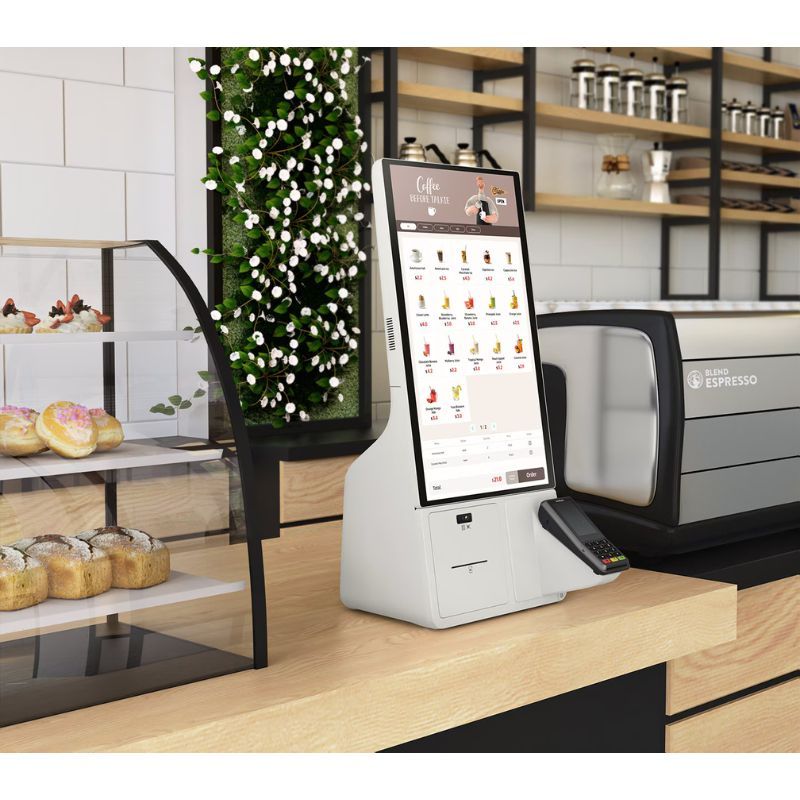

For self-order and kiosk applications, the KM24C-C has an integrated thermal receipt printer, antibacterial PET film to protect the surface, and a supplied connector box to expand the interfaces. The system also allows remote management via Windows IoT.

Technical specifications

• Display diagonal: 24″ / 61 cm
• Aspect ratio: 16:9
• Colour coverage: approx. 72%
• Pixel pitch: 0.2745 × 0.2745 mm
• Operation: 16/7
• Typical power consumption: approx. 88 W, standby: ~0.5 W
• Dimensions (display): 547.9 × 334.4 × 48.8 mm (width × height × depth)
• Weight (without packaging): approx. 4.3 kg
• Operating temperature: 0-40 °C, operating humidity: 10-80 % (non-condensing)
