Samsung OH46DX Outdoor Display 46" 3500 nits
Internal ref: SAOH46DX // Manufacturer part #: LH46OHDEBGBXEN
46-inch professional display for outdoor signage with high brightness, IP56 protection and continuous 24/7 operation in demanding environments.
SAVING £1,703.00 NEW
£3,550.99 - £4,261.19 Incl. VAT
2 years of manufacturer warranty Subject to manufacturer conditions
Pay in 3 interest-free payments of Show more
Key features
- Brightness of 3500 cd/m² ensures excellent readability in bright outdoor conditions
- IP56 weather protection: dustproof and waterproof design
- 24/7 commercial operation: designed for continuous use in demanding applications
- Integrated Tizen platform
- Dual HDMI, Ethernet, Wi-Fi, Bluetooth, USB, RS-232, and HDBaseT
- Reliable operation in temperatures from -30°C to 50°C
- VESA-compatible mounting: 995 x 500 mm
In the box
- 1X Professional outdoor screen
- 1X Power cable
- 1X Remote control
- 2X AAA batteries
- 1X Quick start guide
Product description
Samsung OH46DX: Professional Outdoor Digital Signage for High-Visibility Applications
The Samsung OH46DX is a purpose-built outdoor digital signage display delivering exceptional brightness and durability for retail, transport hubs and public spaces requiring reliable 24/7 operation.
Built for Outdoor Environments
With IP56 certification, the OH46DX offers robust protection against dust ingress and water jets, making it suitable for semi-outdoor and outdoor installations. The ultra-high brightness of 3500 cd/m² ensures content remains clearly visible even in direct sunlight, while the anti-glare and anti-reflective film minimises unwanted reflections. Operating temperature range from -30°C to 50°C guarantees reliable performance across diverse climatic conditions.
Continuous Operation and Reliability
Engineered for 24/7 operation, this display meets the demands of retail window displays, transport information systems and outdoor advertising networks. The 46-inch Full HD LCD panel with VA technology delivers consistent image quality with 178° viewing angles, ensuring audiences see accurate colours and sharp detail from multiple positions. A 6000:1 contrast ratio and 6 ms response time support dynamic video content without motion blur.
Integrated Platform and Connectivity

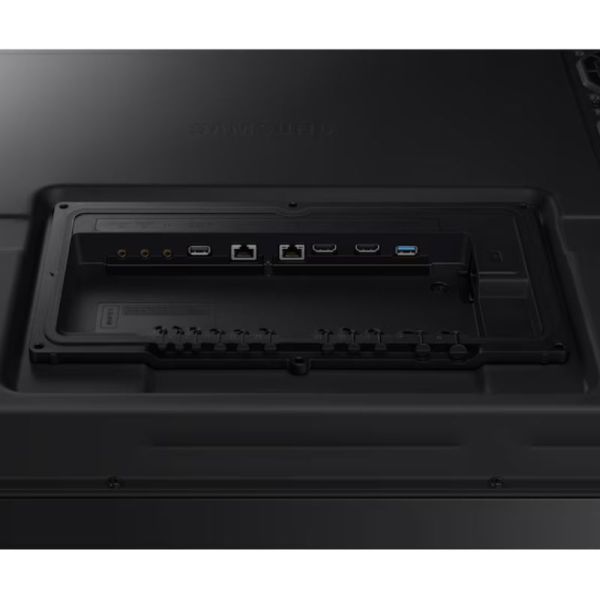

The Tizen 8.0 operating system enables direct content playback without requiring external media players, reducing installation complexity and points of failure. Dual Ethernet ports facilitate network redundancy and daisy-chaining configurations. Two HDMI 2.0 ports, dual USB connections, RS-232 interface and HDBaseT input provide comprehensive integration options for diverse AV infrastructures. Built-in Wi-Fi and Bluetooth extend wireless connectivity for remote management and content updates.
Installation Flexibility
VESA 995 x 500 mm mounting compatibility allows straightforward installation with standard brackets and outdoor enclosures. The narrow 24.9 mm bezel on all sides creates a sleek appearance suitable for premium retail and architectural applications. At 28.2 kg, the display offers a balance between robust construction and manageable installation weight.
Energy Efficiency and Management
Typical power consumption of 480 W and standby consumption of just 0.5 W support cost-effective operation in always-on deployments. HDCP 2.2 compliance ensures compatibility with protected content sources. The display operates reliably across relative humidity ranges of 10-80%, accommodating variable environmental conditions without compromising performance.
Key technical specifications
| Specification | Value |
| Display Size | 116.8 cm (46") |
| Resolution | 1920 x 1080 pixels (Full HD) |
| Brightness | 3500 cd/m² |
| Panel Technology | VA LCD |
| Contrast Ratio | 6000:1 |
| Viewing Angles | 178° horizontal / 178° vertical |
| IP Protection | IP56 |
| Operating Hours | 24/7 |
| Operating Temperature | -30°C to 50°C |
| VESA Mount | 995 x 500 mm |
| Connectivity | 2x HDMI 2.0, 2x Ethernet, Wi-Fi, Bluetooth, USB, RS-232, HDBaseT |
| Operating System | Tizen 8.0 |
| Power Consumption | 480 W (typical), 0.5 W (standby) |
| Dimensions (W x H x D) | 106.9 x 62.4 x 6.9 cm |
| Weight | 28.2 kg |
Files
Manual Samsung OH46DX
Product Specs.
| Manufacturer part # | LH46OHDEBGBXEN |
|---|---|
| EAN | 8806095845395 |
| Warranty | 2 years |
| By Sector | Retail, Transportation & logistics, Hotels and restaurants, Public administrations |
| Use type | Digital signage |
| Intended use | Outdoor screen |
| Screen type | Flat Screen |
| Screen Technology | LED / LCD |
| Screen Orientation | Horizontal, Vertical |
| Screen Size | 46'' |
| Resolution | Full HD (1080p) |
| Compatible With | All Platforms |
| Operating hours | 24h per day |
| Brightness | 1,500 - 5.000 cd/m² |
| Other Features | PC/Mac Compatible, With Windows, Remote Control Included, Energy Saving Mode, Embedded Content Manager, MAC compatible |
| VESA standard | 500 x 500 mm |
| Energy efficiency class | A |
