Samsung 55 Inch VMC-E Video Wall

Product description

Samsung DISPLAY 55 EVHBE (LH55VMCEBGBXEN)

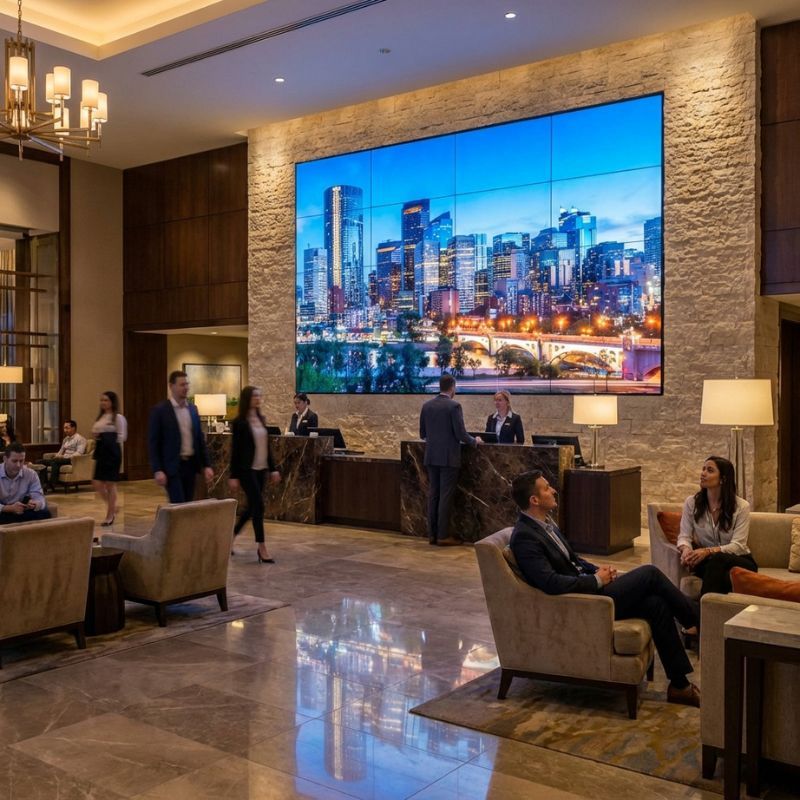

The Samsung LH55VMCEBGBXEN is a high-performance video wall display, ideal for use in public areas such as foyers, advertising spaces, control rooms and conference areas. With its very narrow bezel width and robust construction, it supports continuous image operation around the clock.

Video specifications and performance

The display has a screen diagonal of 55 inches (≈ 138 cm), with IPS display technology and Full HD resolution. The brightness is approximately 500 nits, and the panel is anti-reflective to minimise reflections. The typical contrast ratio is 1,000:1, with a dynamic contrast ratio of up to ≈ 100,000:1. The viewing angles are 178° horizontally and vertically. Other technical specifications: pixel pitch 0.63 × 0.63 mm; Refresh rate is approximately 47-63 Hz (vertical) and 57.3-70 kHz (horizontal). Stable operation even in low ambient light or changing lighting conditions.

Device and software compatibility

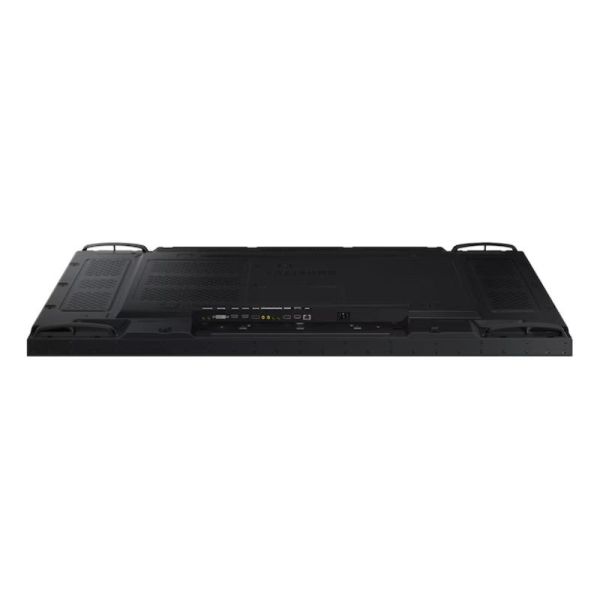

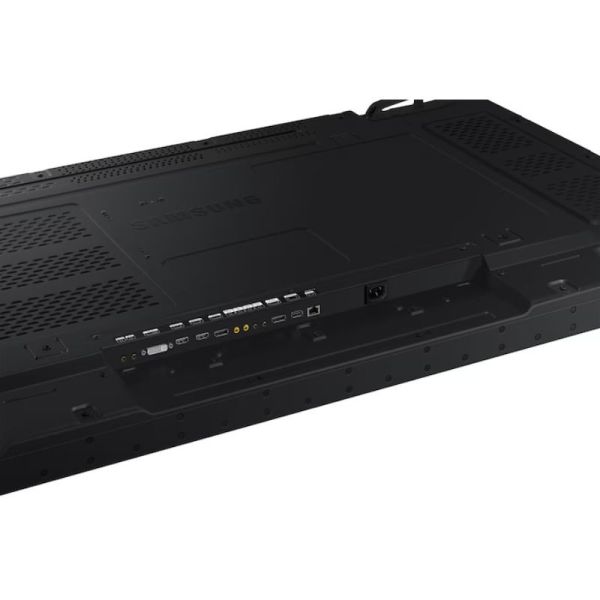

This display supports HDMI (2 ports), DisplayPort (1.2), DVI-D, USB, audio input/output, RS-232 (in/out) and Ethernet LAN. It is compatible with signage solutions, digital signage content management, media players and video distribution devices. No built-in TV tuner.

Collaborative features: how it stands out

The display enables daisy chain connections, i.e. multiple displays in series, ideal for large video walls. It offers image optimisation tools such as colour balance and black equaliser. Samsung also calibrates the panels at the factory and offers software support for fine-tuning.

Technical specifications

• Diagonal: 55" / ≈ 138 cm
• Resolution: 1,920 × 1,080 (Full HD)
• Panel type: IPS LCD with LED backlighting
• Brightness: approx. 500 cd/m² (nit)
• Viewing angle: 178°/178°
• Frame width (bezel-to-bezel): approx. 1.74 mm
• Protection class: IP5X (dust protection)
• Power supply: AC 100-240 V, 50/60 Hz
• Power consumption (typical): approx. 220 W
• Standby / Sleep Mode: ~ 0.5 W
• Dimensions without stand: Width 1,212.2 mm, Height 683 mm, Depth 70.4 mm
• Weight without packaging: approx. 19.5 kg
• Operating temperature: 0-40 °C, humidity 10-90 %

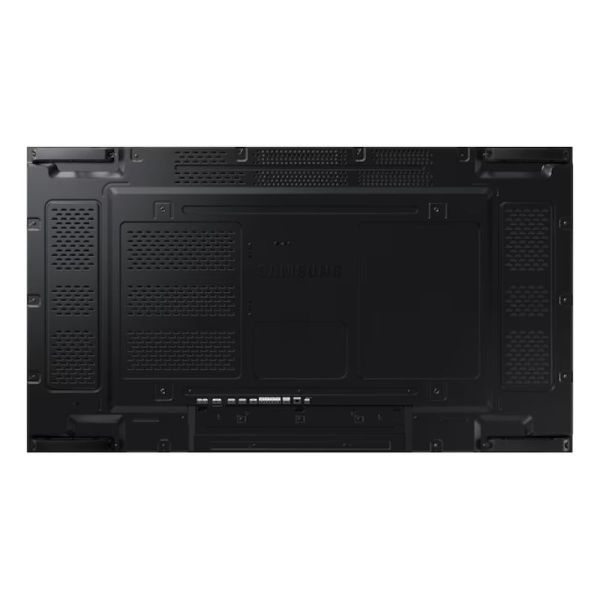

• VESA mounting interface: 600 × 400 mm
