Rondson Wireless Conference System – 8 Channels (520.1 – 546.5 MHz)

Product description

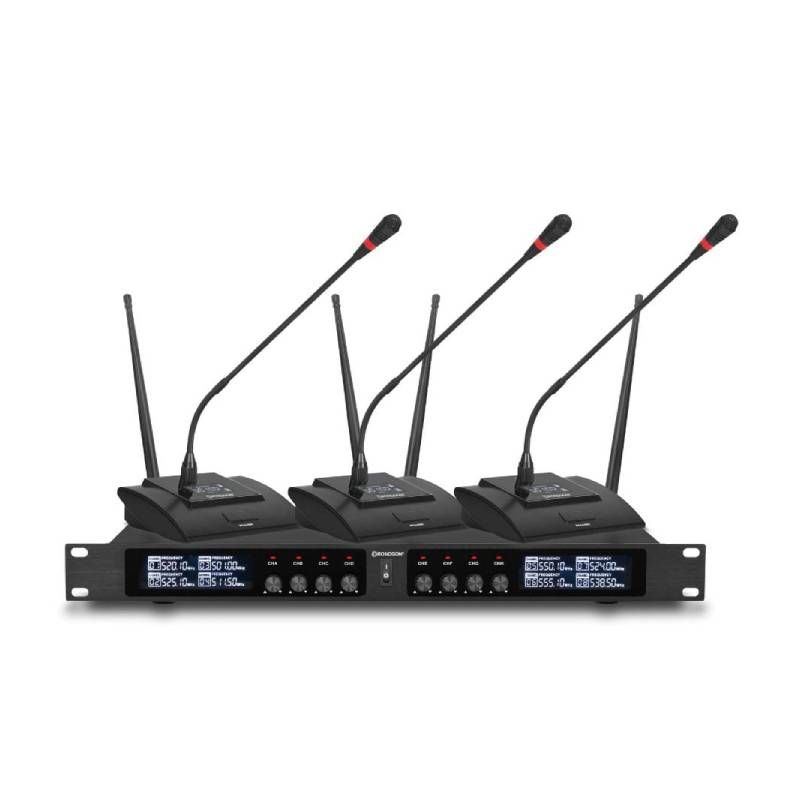

Rondson 8-Channel Wireless Conference System (520.1 – 546.5 MHz)

Ready-to-Use Wireless Solution

The Rondson BE-20CONF is a UHF wireless conference system designed for professional environments: board meetings, executive sessions, general assemblies, or public speeches. Supplied with 8 tabletop microphones, it allows you to equip a meeting room without the need for complex cabling. Thanks to its fixed UHF frequencies (520.1 – 527.7 – 506.0 – 517.5 – 553.7 – 557.7 – 523.0 – 546.5 MHz) and ADFHSS technology, it ensures reliable, stable, and interference-protected transmission, even in the presence of mobile phones or other wireless devices.

Designed for Efficient Events

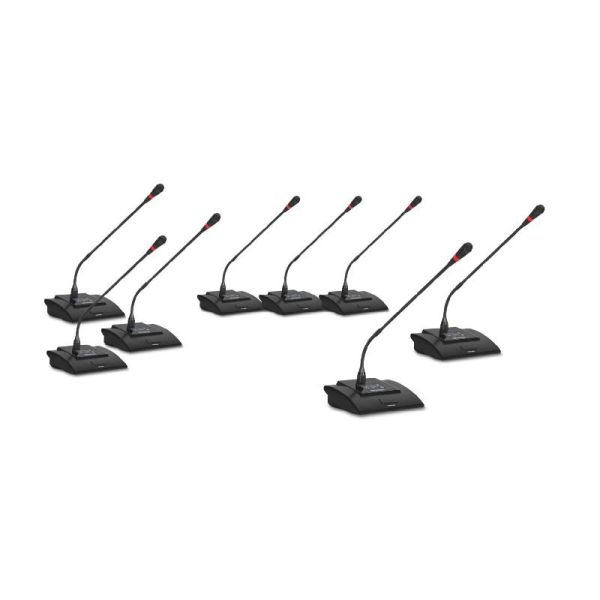

The system allows for up to 8 microphones to be active simultaneously: 1 chairman microphone and 7 delegate microphones. Speech management is smooth and can operate in "first-in, first-out" mode or on request. Each microphone operates on 2 AA batteries, providing up to 12 hours of continuous battery life. An integrated LED indicates when the battery is low, helping to avoid unexpected interruptions during meetings.

Professional Connectivity and Scalable Setup

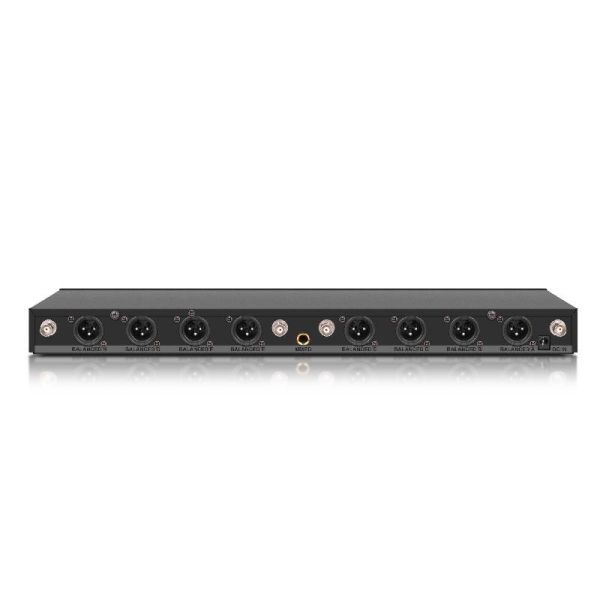

The receiver is equipped with balanced (XLR) and unbalanced (6.3 mm jack) audio outputs, offering immediate compatibility with a wide range of PA or recording systems. To expand your setup, two BE-20CONF systems can be connected, giving you up to 16 desktop microphones. Adding a PM 8P or PM 10P preamplifier allows you to manage speaker priority and optimise broadcasting based on your meeting structure.

Technical Specifications:

• Bandwidth: 40 – 18,000 KHz

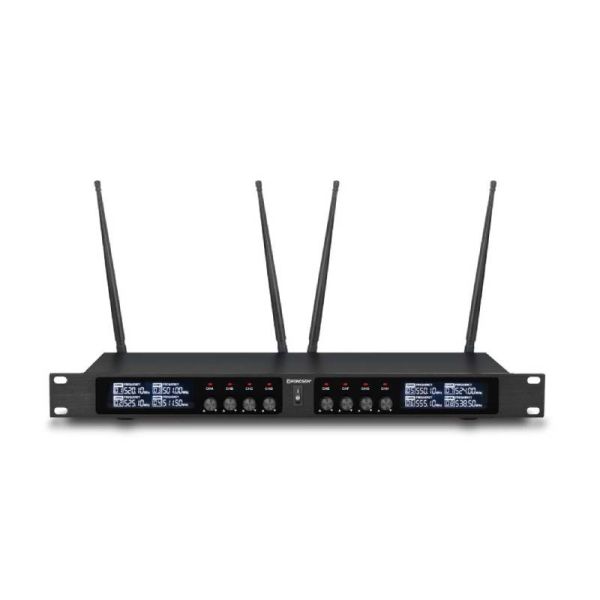

RECEIVER

• Fixed frequencies: 520.1 – 527.7 – 506.0 – 517.5 – 553.7 – 557.7 – 523.0 – 546.5 MHz
• ADFHSS HF encryption system (confidentiality)
• Power supply: DC 12 V / 1000 mA
• Audio delay: ≤ 15 ms
• Signal-to-noise ratio: ≥ 110 dB
• Dynamic range: ≥ 110 dB
• Distortion: ≤ 0.6%
• Unbalanced outputs: Ø 6.3 mm jack: 0 dB
• Mono outputs: XLR: 3 dB
• Dimensions (W x D x H): 480 x 185 x 46 mm
• Weight: 2.75 kg

MICROPHONE

• Power supply: 2 x 1.5 V AA batteries or 2 x 1.2 V rechargeable AA batteries
• Transmitter power: <10 mW
• Gooseneck length: 39 cm
• Dimensions: 260 x 50 mm
• Weight: 250 g
