Rondson UHF receiver with 8 handheld microphones

Product description

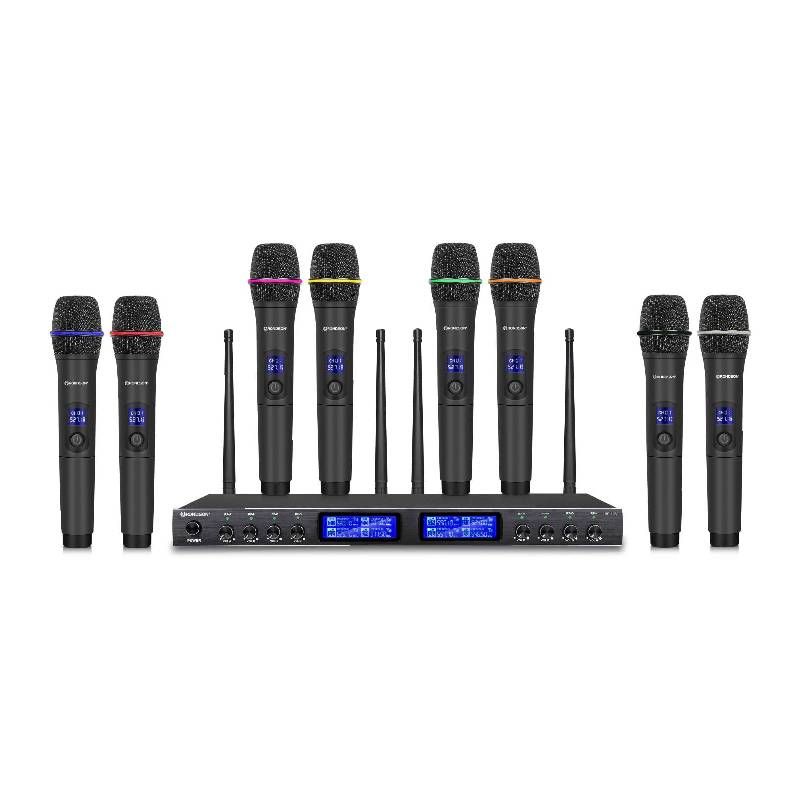

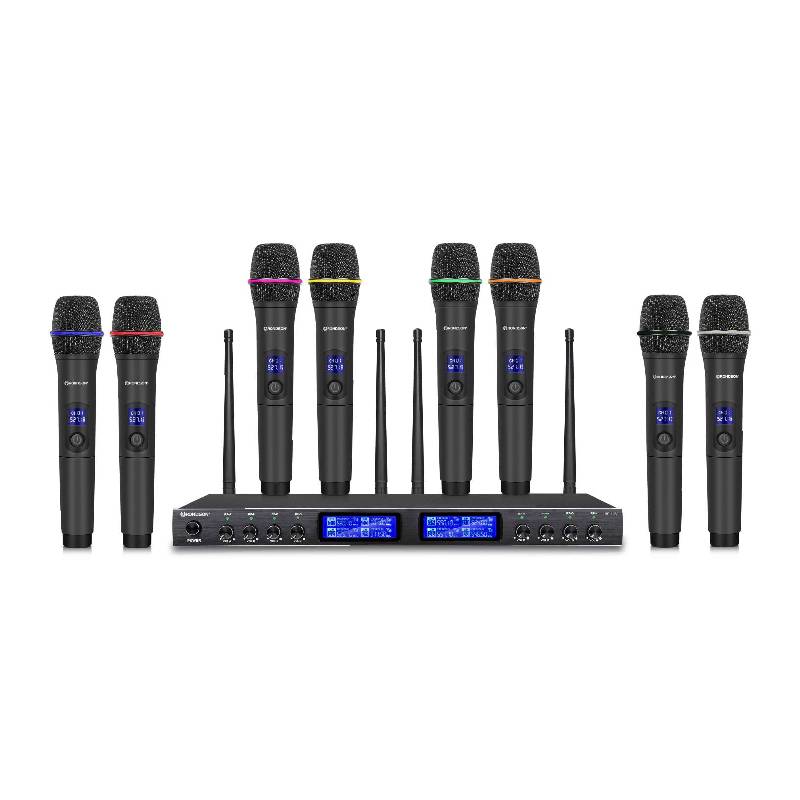

Rondson UHF Receiver with 8 Handheld Microphones

Complete UHF Audio System for Your Events

The Rondson BE-1080 is a wireless audio solution designed for professional environments such as conference rooms, auditoriums, stages, or places of worship. This system features an 8-channel UHF receiver and comes supplied with 8 handheld microphones, enabling the simultaneous voice capture of multiple speakers without interference.

Reliability and Easy Setup

Equipped with 8 fixed frequencies, this system ensures stable performance even in environments crowded with wireless signals. Infrared synchronisation allows each microphone to be quickly paired with its dedicated channel, with no complex setup. Thanks to its LCD screen, the receiver clearly displays active channels, signal levels, and synchronisation status.

Professional Connectivity

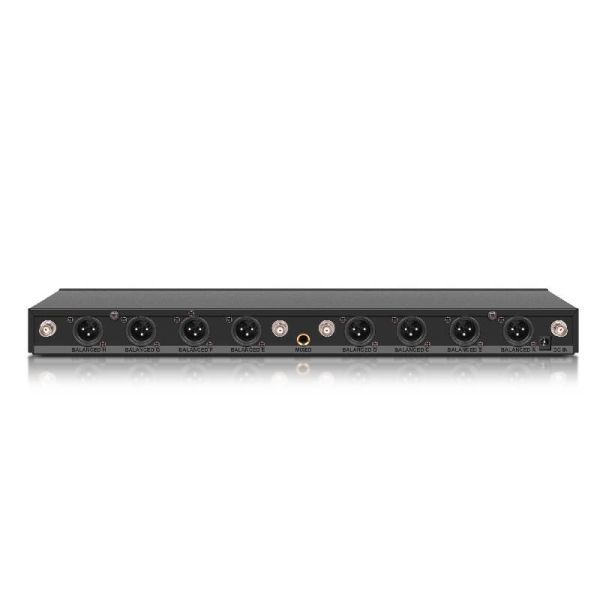

The BE-1080 receiver is equipped with 8 balanced XLR outputs for individual microphone management, as well as a mixed jack output, ideal for simplified sound reinforcement. With its rack-mountable dimensions (480 x 180 x 46 mm), it easily fits into a flight case (a sturdy transport case) or technical bay (a dedicated space within a rack or cabinet for housing electronic equipment). Its 12V power supply and low power consumption (< 5 W) make it a reliable long-term solution.

Designed for speech, vocal, and stage applications, the system ensures clear sound quality with a bandwidth of 80 Hz to 15 kHz, total harmonic distortion below 0.5%, and a signal-to-noise ratio greater than 70 dB.

Technical Specifications

• Reception: UHF 8 channels (520.1 - 527.7 - 506.0 - 517.5 - 553.7 - 557.7 - 523.0 - 546.5 MHz)
• System: PLL synthesised
• Frequency stability: < + 10 ppm
• Image interference ratio: > 50 dB
• Signal-to-noise ratio: > 70 dB
• Sensitivity: - 80 dBuV
• Total harmonic distortion: < 0.5%
• Bandwidth: 80 Hz - 15,000 Hz (± 3 dB)
• Output impedance: 600 Ω
• Audio output level: 400 mV, balanced/unbalanced
• LCD screen
• Audio output ports: 8 balanced XLR, 1 unbalanced Jack
• Antenna connectors: 4 x BNC
• Power supply: DC 12V - 1000 mA
• Power consumption: < 5 W
• Dimensions (W x D x H): 480 x 180 x 46 mm (rack-compatible)
• Weight (receiver + handheld mics): 2.75 kg
• Batteries or rechargeable cells: 2 x AA / 1.5V (included)
