Philips D-Line 32" FHD Monitor Pack + Wall Mount
Internal ref: PHIL32BDL4511DBTSM

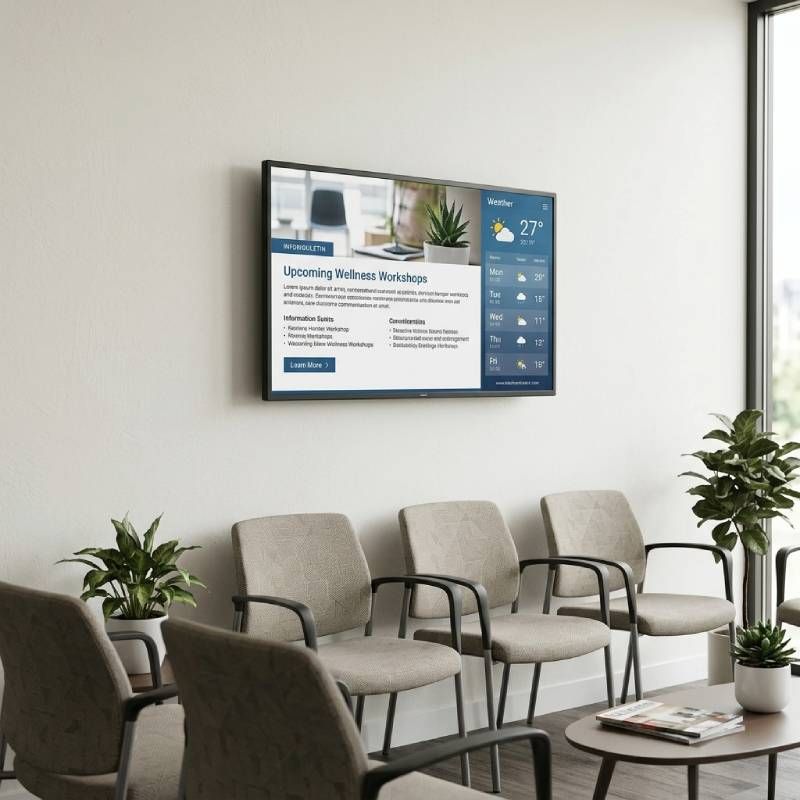

A ready-to-install digital signage solution combining the Philips D-Line 32-inch Full HD professional display with an ultra-slim wall mount for a sleek and discreet installation.
Key features
Philips 32BDL4511D/00 D Line 32-inch FHD display
- 32-inch Full HD digital signage display with 1920 x 1080 resolution
- 24/7 operation for continuous professional use
- 400 cd/m² brightness for clear, high-contrast content
B-Tech BT7510 Universal VESA Wall Mount
- Ultra-slim fixed wall mount for screens up to 28 inches
- VESA compatibility up to 100x100 for professional monitors and displays
- Ultra-slim 15 mm profile for a discreet and elegant installation
In the box
- 1 x Philips logo
- 1 x Mains cable
- 1 x Power switch cover
- 1 x IR sensor cable
- 1 x Quick start guide
- 1 x Remote control with AAA batteries
- 1 x RS232 cable
- 1 x RS232 daisy-chain cable
- 1 x USB cover with screw
- 1 x Cable tie
- 1 x B-Tech BT7510 wall mount
- 1 x Mounting hardware
- 1 x VESA screws
- 1 x Security screw
- 1 x Allen key
- 1 x Installation manual
Product range:
Product description
Philips 32BDL4511D/00 D-Line for professional digital signage applications
The Philips 32BDL4511D/00 is a professional 32-inch digital signage display from the D-Line series. With its Full HD resolution, a brightness of 400 cd/m² and support for 24/7 continuous operation, it is suitable for businesses, retail, educational institutions and public spaces.
Clear image quality with ADS technology
The display features an ADS panel with a resolution of 1920 x 1080 pixels. The technology offers precise colour reproduction, smooth image transitions and a viewing angle of 178° horizontally and vertically, ensuring that content remains visible from almost any position.
Centralised control and content management
With CMND & Control, displays can be managed via the local network, inputs controlled and device status monitored. The integrated SmartPlayer enables the playback of videos, images and audio files directly from a USB storage device, as well as the scheduling of playlists via the on-screen menu.
Reliability for professional use
The integrated FailOver function ensures that content continues to be displayed even if the primary signal source fails. In addition, SmartPower reduces energy consumption through intelligent control of the backlight.
Applications and connectivity
The display supports installation in portrait and landscape formats and offers versatile connection options with HDMI, DisplayPort, DVI-I, USB, RS232, RJ45 and IR control. This makes it suitable for digital signage, information displays, retail, corporate communications and public information systems.
Technical specifications:
| Display size | 32 inches (81.28 cm) |
| Resolution | 1920 x 1080 pixels (Full HD) |
| Panel technology | ADS |
| Brightness | 400 cd/m² |
| Contrast ratio | 1200:1 |
| Dynamic contrast ratio | 500,000:1 |
| Response time | 8 ms |
| Viewing angle | 178° horizontal / 178° vertical |
| Colour reproduction | 16.7 million colours |
| Aspect ratio | 16:9 |
| Pixel pitch | 0.36375 x 0.36375 mm |
| Operating mode | 24/7 |
| Display orientation | Portrait and landscape |
| Video inputs | 2x HDMI 2.0, 1x DisplayPort 1.2, 1x DVI-I, 2x USB 2.0 |
| Video outputs | 1x HDMI 2.0, 1x DisplayPort 1.2 |
| Audio input | 3.5 mm jack |
| Audio output | 3.5 mm jack |
| Controls | RJ45, RS232C, IR |
| Built-in speakers | 2 x 10 W RMS |
| Typical power consumption | 36 W |
| Maximum power consumption | 60 W |
| Standby power consumption | 0.5 W |
| VESA mounting | 100 x 100 mm / 200 x 200 mm |
| Dimensions (W x H x D) | 726.5 x 425.4 x 65.1 mm |
| Weight | 5.7 kg |
| Colour | Black |
B-Tech BT7510: ultra-slim wall mount for small professional displays
Discreet and professional wall mounting
The B-Tech BT7510 is a fixed wall mount designed for small screens and professional monitors up to 28 inches. Its ultra-slim design keeps the screen just 15 mm from the wall, offering an elegant and discreet integration into any professional environment.
Universal VESA compatibility
Compatible with VESA 50x50, 75x75 and 100x100 standards, this mount allows for the installation of a wide variety of displays used in meeting rooms, retail, digital signage and corporate spaces.
OWLS system for precise installation
The BT7510 incorporates the OWLS (On Wall Levelling System), which facilitates the adjustment and levelling of the display during installation. Furthermore, its hook-on system simplifies assembly and reduces deployment time.
Enhanced security for professional environments
Includes a security screw and Allen key to help prevent unauthorised removal in public areas or shared facilities. Its steel structure ensures strength and stability for daily professional use.
Professional use, compatibility and applications
Ideal for small video conferencing screens, professional monitors, digital signage and corporate environments. It is also compatible with the B-Tech range of professional poles and clamps for custom installations.
Technical specifications:
| Product type | Fixed wall mount |
| Recommended screen size | Up to 28" |
| Maximum load | 20 kg |
| VESA compatibility | 50x50, 75x75, 100x100 |
| Distance from wall | 15 mm |
| Installation type | Wall mounting |
| Levelling system | OWLS On Wall Levelling System |
| Safety system | Lock screw included |
| Material | Steel |
| Colour | Black |
| Additional compatibility | B-Tech System 2 and System X |
| Installation | Quick hook-on |
| Manufacturer’s reference | BT7510/B |
Files
Philips 32BDL4511D_00 - Datasheet
BT7510 - Datasheet
Product Specs.
| Manufacturer part # | 32BDL4511D/00 |
|---|---|
| EAN | 8712581778637 |
| Warranty | 2 years |
| By Sector | Hotels and restaurants, Public administrations, Corporate and Office |
| Use type | Digital signage |
| Intended use | Indoor screen |
| Screen type | Flat Screen |
| Screen Technology | LED - LCD |
| Screen Orientation | Horizontal, Vertical |
| Screen Size | Between 27 and 40 inches |
| Screen Size | 32'' |
| Resolution | Full HD (1080p) |
| Operating hours | 24h per day |
| Brightness | 350 - 700 cd/m² |
| VESA standard | 100 × 100 mm, 200 × 200 mm |
| Manufacturer part # | BT7510/B |
|---|---|
| EAN | 5019318751028 |
| Warranty | 10 years |
| By Sector | Hotels and restaurants, Public administrations, Corporate and Office |
| Accessory Type | Wall mounting bracket |
| Is Accessory of | Screen |
| Lone worker protection | No |
