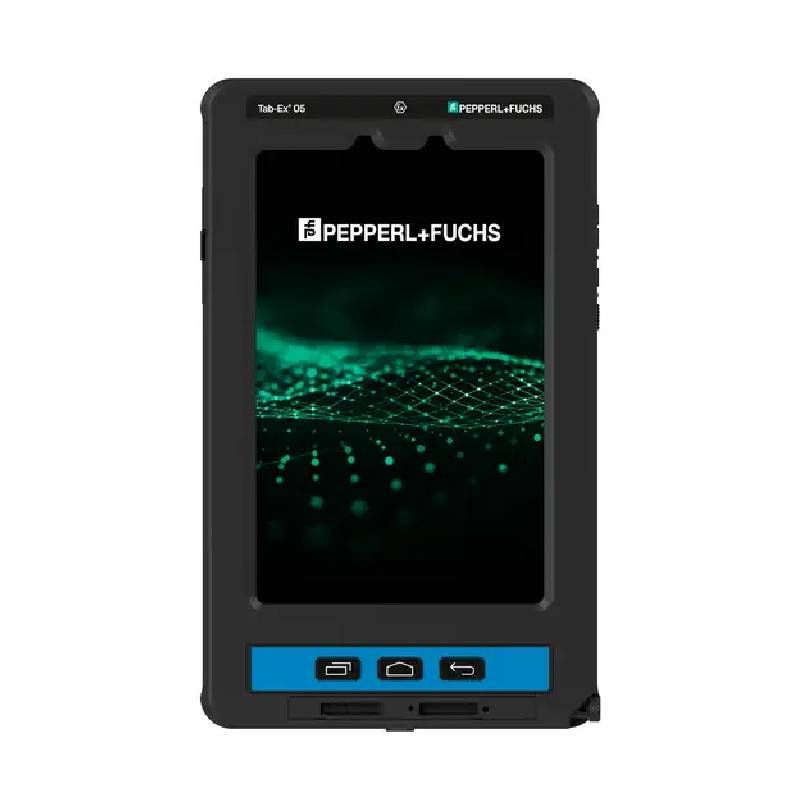

Pepperl Fuchs TAB-EX 05 DZ1 5G
Internal ref: ECOMTABEX05DZ1W // Manufacturer part #: 480996-100002
Rugged 8" 5G Android tablet for hazardous areas, offering high performance and advanced safety standards.
£2,899.99 - £3,479.99 Incl. VAT
Bulk orders, request a quote now!
Pay in 3 interest-free payments of Show more
Key features
- 8" WUXGA display with 1920 x 1200 pixels
- Exynos 1380 Octa-Core processor
- 6 GB RAM and 128 GB internal storage
- Expandable via microSD card up to 1 TB
- Android™ 14 operating system
- 5G connectivity for fast data transfer
- IP68 and MIL-STD-810H certified
- Camera: 13 MP
In the box
- Tab-Ex® 05 DZ1 Tablet
- S Pen
- USB cable
- Charger
- Torx T8
- Documentation
Product description
Tab-Ex® 05 DZ1
The Tab-Ex® 05 DZ1 is a powerful 8-inch Android tablet designed specifically for use in hazardous Zone 1/21 environments. It combines a rugged build with the latest technology, offering a reliable solution for demanding industrial applications.
Performance and reliability
Powered by an Exynos 1380 Octa-Core processor and 6 GB RAM, the Tab-Ex® 05 DZ1 delivers excellent performance for intensive tasks. Its 128 GB internal storage can be expanded up to 1 TB via microSD, making it ideal for storing large amounts of data. The 8-inch WUXGA display with 1920 x 1200 resolution and brightness of up to 600 cd/m² ensures clear visibility, even in direct sunlight.
Functionality and ease of use
Running on Android™ 14, the tablet is part of the Android Enterprise Recommended (AER) Programme, ensuring regular updates and security patches until 2032. With 5G connectivity, Wi-Fi 6, and Bluetooth 5.3, it offers fast and flexible communication. It can be operated while wearing gloves, and the included S Pen allows for precise input. The device also supports Google ARCore for augmented reality applications.
Durability and support
The Tab-Ex® 05 DZ1 is IP68 and MIL-STD-810H certified, offering protection against dust, water, and drops. The replaceable 5050 mAh Li-Ion battery provides up to 14 hours of operation, making it ideal for extended use in tough environments. Samsung Knox 3.10 ensures advanced protection for both device and data.
Technical specifications
- Processor: Exynos 1380 Octa-Core (4 x 2.4 GHz + 4 x 2.0 GHz)
- RAM: 6 GB LPDDR4X
- Internal storage: 128 GB UFS, expandable via microSD up to 1 TB
- Display: 8" TFT WUXGA (1920 x 1200), 600 cd/m² brightness
- Connectivity: 5G, Wi-Fi 6, Bluetooth 5.3, NFC, GPS/GLONASS/Galileo/Beidou
- Camera: 13 MP rear, 5 MP front, 4K video recording
- Operating system: Android™ 14
- Protection rating: IP68, MIL-STD-810H
- Dimensions: 161.5 mm x 262.75 mm x 25.75 mm
- Weight: approx. 1122 g
- Battery: 5050 mAh Li-Ion, up to 14 hours operating time
Product Specs.
| Manufacturer part # | 480996-100002 |
|---|---|
| Network | With 5G |
| Dual SIM | Without dual SIM |
| GPS | With GPS |
| Operating system | With Android |
| NFC | With NFC |
| Dust & shock resistant | Resistant |
| Military standard | Confirmed to military standard |
| IP Rating | IP68 rating |
| ATEX certified | With ATEX certification |
| Camera | With camera |
| Rear Camera | 13 MP |
| Front Camera | 5 MP |
| Bluetooth | Bluetooth 5.0 |
| Screen size | More than 4.5" screen |
| Weight | 1122 g |
| Barcode reader | Without barcode reader |
| Fast Charging | No |
