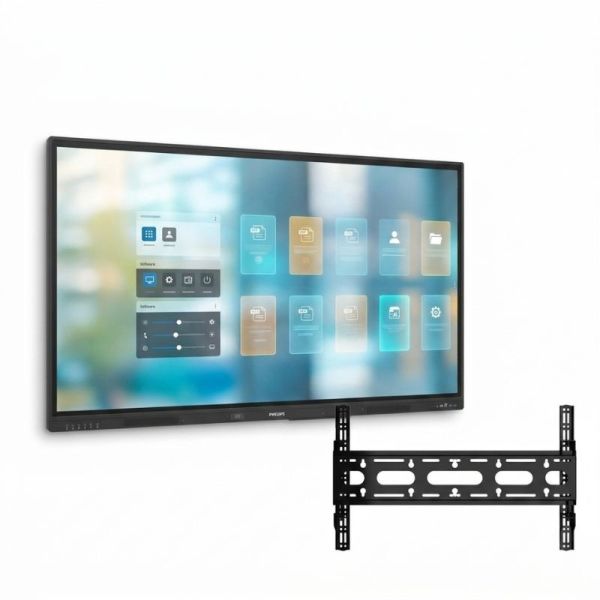

Pack Philips E-Line 75-inch Touchscreen + B-Tech BT8442 wall mount
Internal ref: PH75BDL4252EBTSM
An interactive system featuring a 75-inch touchscreen and wall mount, ideal for meeting rooms, classrooms, training sessions and collaborative spaces.
Key features
Philips E-Line 75BDL4252E 75-inch touchscreen
- 75" 4K interactive display designed for professional and educational collaboration
- Infrared touch technology with up to 50 simultaneous touch points
- Android 14 and Google EDLA certification: native access to Google services
B-Tech BT8442 Wall Mount for 80" Screens
- Heavy-duty wall mount for professional displays up to 80 inches
- VESA compatibility up to 656x400 for large-format displays
- Maximum capacity of 80 kg for professional AV installations
In the box
- 1 x Philips E-Line 75" screen
- 1 x Mains power cable
- 1 x Remote control with AAA batteries
- 1 x 3 m USB-A to USB-B cable
- 2 x Touch pens
- 1 x Documentation
- 1 x B-Tech BT8442 wall mount
- 1 x Mounting hardware
- 1 x VESA screws
- 1 x Security screws
- 1 x Installation accessories
- 1 x User manual
Product description
Philips E-Line 75BDL4252E – 75” Android interactive display for advanced collaboration
The Philips 75BDL4252E/00 is a large-format collaborative display designed for meeting rooms, training spaces and modern educational environments. With its 75-inch Ultra HD 4K display, Android 14 operating system and advanced multi-touch technology, it enhances interactive exchanges and collaborative presentations.
Smooth interaction with advanced touch technology
0-gap IR touch technology enables a more precise writing and interaction experience with up to 50 simultaneous touch points. Palm rejection, stylus size recognition and an integrated whiteboard facilitate brainstorming, annotation and real-time collaborative work.
Android 14 with integrated Google environment
Thanks to Google EDLA certification, the display provides access to Google apps and services such as Classroom, Docs and Slides directly from the Android interface. This integration simplifies collaborative use and interconnectivity with Chromebooks and Android devices.
Designed for high-traffic environments
The anti-glare tempered glass with a hardness rating of 9H effectively protects the screen against heavy use in high-traffic areas. The ambient light sensor automatically adjusts the display according to lighting conditions to optimise visual comfort and energy consumption.
Wireless sharing and simplified AV integration
The Philips ScreenShare function allows content to be streamed wirelessly from various devices without complex installation. The screen also features USB-C ports up to 65 W, HDMI 2.0, DisplayPort, USB 3.0 and OPS to meet the needs of modern professional AV infrastructures.
Professional applications and compatibility
The Philips E-Line 75” is ideal for conference rooms, co-working spaces, universities, schools and corporate environments seeking a high-performance large-format interactive display. Compatible with VESA 800 x 400 mm wall mounts and cloud management via Philips Wave.
Technical specifications:
| Product type | Interactive collaborative display |
| Screen size | 75 inches |
| Resolution | 3840 x 2160 UHD 4K |
| Brightness | 400 cd/m² |
| Panel technology | ADS |
| Operating system | Android 14 |
| Touch technology | 0-gap infrared touch |
| Touch points | 50 simultaneous touch points |
| Screen protection | 9H anti-glare tempered glass |
| Audio | 2 x 20 W with built-in microphones |
| Video inputs | HDMI 2.0 x3, USB-C, DisplayPort, VGA |
| USB | USB-C up to 65 W, USB 3.0 x4, USB-B x2 |
| Network connectivity | Dual Gigabit LAN, Wi-Fi 2.4/5/6 GHz, Bluetooth 5.2 |
| RAM | 8 GB |
| Internal storage | 128 GB eMMC |
| Orientation | Landscape 18:7 |
| VESA mount | 800 x 400 mm |
| Dimensions | 1709.4 x 1031 x 97.3 mm |
| Weight | 39.5 kg |
| Warranty | 5 years |
B-Tech BT8442: professional wall mount for large screens and digital signage
Heavy-duty mount for demanding AV installations
The B-Tech BT8442 is a fixed wall mount designed for large-format professional displays up to 80 inches. Its reinforced structure allows it to support up to 80 kg, making it an ideal solution for corporate, retail, education and digital signage environments.
Universal VESA compatibility and flexible mounting
The mount supports VESA and non-VESA configurations up to 656x400, offering broad compatibility with professional displays from different manufacturers. It is also compatible with B-Tech collars and poles for advanced AV installations.
Low-profile design and precise alignment
Thanks to its low-profile design, the screen is mounted just 30 mm from the wall, achieving a clean, professional finish. It also features lateral adjustment and levelling screws that allow the screen’s position to be adjusted after installation.
Security and ease of installation
The hook-on system and keyhole-style mounting facilitate quick and secure installation. The BT8442 also features security locking screws to help prevent unauthorised removal in public or corporate spaces.
Professional use, compatibility and applications
Ideal for video conferencing, digital signage, retail, hospitality, corporate and educational displays. Designed for professional AV projects involving large screens and intensive use.
Technical specifications:
| Product type | Heavy-duty fixed wall mount |
| Recommended screen size | Up to 80" |
| Maximum load | 80 kg |
| VESA compatibility | Up to 656x400 |
| Non-VESA compatibility | Yes |
| Distance from wall | 30 mm |
| Installation type | Wall mounting |
| Lateral adjustment | Yes |
| Post-installation levelling | Yes |
| Security system | Integrated locking screws |
| Mounting type | Hook-on / Keyhole |
| Additional compatibility | B-Tech collars and posts |
| Material | Steel |
| Colour | Black |
| Manufacturer’s reference | BT8442/B |
Files
Philips 75BDL4252E - Datasheet
BT8442 - Datasheet
Product Specs.
| Manufacturer part # | 75BDL4252E/00 |
|---|---|
| EAN | 8721038101980 |
| Warranty | 5 years |
| By Sector | Education, Corporate and Office |
| Use type | Meeting Room |
| Intended use | Indoor screen |
| Screen type | Flat Screen |
| Screen Technology | LED - LCD |
| Screen Orientation | Horizontal |
| Screen Size | 75 inches |
| Screen Size | 75'' |
| Resolution | 4K |
| Operating hours | 18h per day |
| Brightness | 350 - 700 cd/m² |
| Other Features | Content Sharing, With Android, Remote Control Included |
| VESA standard | 800 × 400 mm |
| Energy efficiency class | F |
| Manufacturer part # | BT8442/B |
|---|---|
| Warranty | 10 years |
| By Sector | Transportation & logistics, Public administrations, Education, Corporate and Office |
| Accessory Type | Wall mounting bracket |
| Is Accessory of | Screen |
| Lone worker protection | No |
