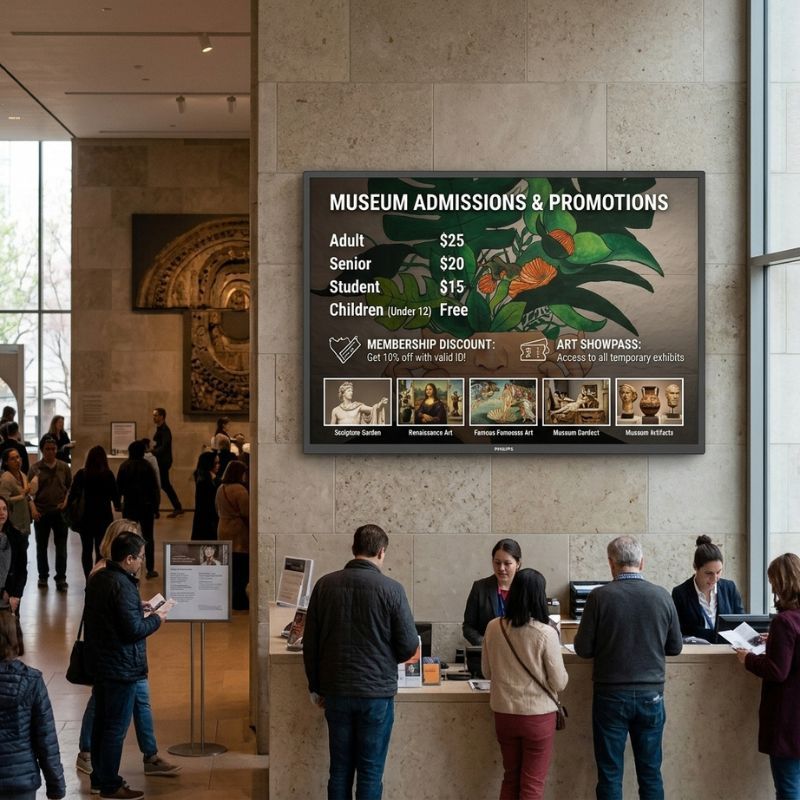

Pack Philips D-Line 86-inch Display + B-Tech XL Wall Mount
Internal ref: PH86BDL4511DBTSM // Manufacturer part #: PH86BDL4511D
A complete solution for digital signage installations featuring a professional 86-inch Philips 4K display and a B-Tech XL wall mount for secure and reliable installation.
Key features
Philips D-Line 86BDL4511D 86-inch 4K TV
- 86" 4K professional display designed for large-scale installations
- 24/7 operation suitable for intensive use
- High brightness of 500 cd/m²: excellent content visibility
B-Tech BT9903 XL Wall Mount for Screens up to 120"
- XL wall mount for professional displays from 65" to 120"
- Maximum capacity of 200 kg for large-format displays and touchscreens
- VESA compatibility up to 1000x600 and non-VESA mounts
In the box
- 1 x Philips D-Line 86" screen
- 1 x Power cable
- 1 x Remote control with AAA batteries
- 1 x RS-232 cable
- 1 x RS-232 cable for daisy chaining
- 1 x 1.8 m infrared sensor cable
- 1 x Mains switch cover
- 1 x USB cover with screws
- 1 x Cable clip
- 1 x Documentation
- 1 x B-Tech BT9903 wall mount
- 1 x Mounting hardware
- 1 x VESA screws
- 1 x Security screws
- 1 x Clamps for media player
- 1 x Installation manual
Product description
Philips D-Line 86BDL4511D – 86” 4K display for large-format digital signage
The Philips 86BDL4511D/00 is a large-format digital signage display designed for professional environments requiring maximum visibility and continuous operation. With its 86-inch Ultra HD 4K screen, it allows you to display impactful content in public spaces, conference rooms, retail outlets or corporate environments.
Large-format high-definition display
With a resolution of 3840 x 2160, this screen delivers detailed images and perfectly legible content, even on very large display surfaces. Its brightness of 500 cd/m² ensures excellent visibility in brightly lit spaces.
Continuous operation for professional use
Designed to operate continuously 24/7, the Philips D-Line 86” meets the needs of critical installations and intensive digital signage networks. The integrated FailOver system automatically switches to a secondary source to prevent any display interruption.
Network management and centralised control
With the CMND & Control platform, administrators can remotely control, monitor and configure multiple screens via the local network. The SmartPlayer solution also allows for easy playback of multimedia playlists directly from a USB stick.
Simplified professional integration
The display features a comprehensive range of connections, including HDMI 2.0, DisplayPort, DVI-I, USB, OPS, RJ45 and RS232, facilitating its integration into professional audiovisual infrastructures. Its landscape or portrait orientation allows the display to be adapted to the requirements of digital signage projects.
Professional applications and compatibility
The Philips D-Line 86BDL4511D is ideal for large commercial spaces, conference centres, reception areas, educational establishments, control rooms and digital signage projects requiring a reliable, high-performance large-format display. Compatible with professional VESA wall mounts.
Technical specifications:
| Product type | Professional digital signage display |
| Screen size | 86 inches |
| Resolution | 3840 x 2160 UHD 4K |
| Brightness | 500 cd/m² |
| Operation | 24/7 |
| Orientation | Landscape and portrait |
| Display technology | Professional UHD panel |
| Dynamic contrast | 500,000:1 |
| Response time | 8 ms |
| Viewing angle | 178° horizontal / vertical |
| Built-in speakers | 2 x 10 W |
| Video inputs | HDMI 2.0 x2, DisplayPort 1.2, DVI-I |
| Video outputs | DisplayPort 1.2, HDMI 2.0 |
| Connectivity | USB 2.0, OPS, RJ45, RS232 |
| USB multimedia playback | Video, audio and images |
| Energy-saving features | SmartPower and advanced standby |
| Operating temperature | 0 °C to 40 °C |
| Warranty | 3 years |
B-Tech BT9903: XL wall mount for large-format professional displays
Heavy-duty mount for extra-large displays
The B-Tech BT9903 is a professional wall mount designed to mount large-format displays ranging from 65 to 120 inches. Thanks to its reinforced structure, it supports up to 200 kg, making it ideal for professional displays, heavy touchscreens and demanding AV projects.
Universal VESA compatibility up to 1000x600
The mount supports VESA and non-VESA mountings up to 1000x600 mm, offering compatibility with a wide range of professional displays used in corporate, education, retail and digital signage.
Low-profile design and precise alignment
Its low-profile design keeps the screen just 35 mm from the wall, creating a clean and elegant installation. It also features lateral adjustment and levelling screws that allow the screen’s position to be adjusted after mounting.
Secure and flexible installation
The hook-on system and keyhole mounting simplify installation in professional AV projects. It also features security screws to prevent unauthorised removal and cable ties to secure small media players directly to the mount.
Professional use, compatibility and applications
Ideal for professional XL screens, interactive touchscreens, digital signage, corporate, education, retail and video conference rooms. Compatible with the B-Tech System 2 pole system for advanced AV setups.
Technical specifications:
| Product type | XL heavy-duty fixed wall mount |
| Recommended screen size | 65" to 120" |
| Maximum load | 200 kg |
| VESA compatibility | Up to 1000x600 mm |
| Non-VESA compatibility | Yes |
| Distance from wall | 35 mm |
| Installation type | Wall mounting |
| Side adjustment | Yes |
| Post-installation levelling | Yes |
| Security system | Lock screws included |
| Mounting type | Hook-on / Keyhole |
| Additional compatibility | B-Tech System 2 |
| Accessories included | Media player clamps |
| Material | Steel |
| Colour | Black |
| Manufacturer’s reference | BT9903/B |
Files
Philips D-Line 86BDL4511D - Datasheet
BT9903 - Datasheet
Product Specs.
| Manufacturer part # | 86BDL4511D/00 |
|---|---|
| EAN | 8712581778699 |
| Warranty | 3 years |
| By Sector | Retail, Public administrations, Corporate and Office |
| Use type | Meeting Room, Digital signage |
| Intended use | Indoor screen |
| Screen type | Flat Screen |
| Screen Technology | LED - LCD |
| Screen Orientation | Horizontal, Vertical |
| Screen Size | Between 81 and 86 inches |
| Screen Size | 86'' |
| Resolution | 4K |
| Operating hours | 24h per day |
| Brightness | 350 - 700 cd/m² |
| Other Features | Content Sharing, Remote Control Included, Embedded Content Manager |
| VESA standard | 600 × 400 mm |
| Energy efficiency class | G |
| Manufacturer part # | BT9903/B V2 |
|---|---|
| EAN | 5019318759079 |
| Warranty | 10 years |
| By Sector | Retail, Public administrations, Education, Corporate and Office, Hybrid work |
| Accessory Type | Wall mounting bracket |
| Is Accessory of | Screen |
| Lone worker protection | No |
