Pack Philips D-Line 75-inch Display + B-Tech BT8442 Wall Mount
Internal ref: PH75BDL465BTSM

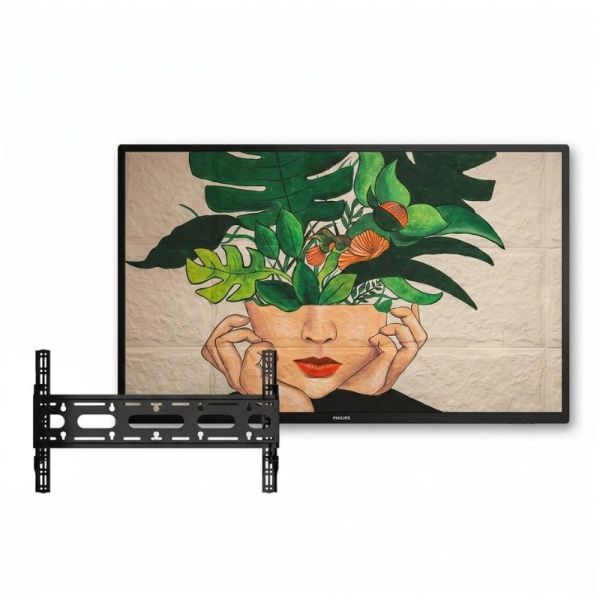

Large-format professional pack featuring a 75" Philips D-Line 75BDL4511D display and a B-Tech BT8442 wall mount: a solution designed for digital signage, visual communication and promotional content in large, highly visible spaces.
Key features
Philips D-Line 75BDL4511D 75-inch 4K Touch screen
- 75" 4K professional display designed for high-traffic display environments
- Wide-angle ADS panel: optimal visibility and consistent colours
- 24/7 continuous operation in landscape or portrait mode
B-Tech BT8442 Wall Mount for 80" Screens
- Heavy-duty wall mount for professional displays up to 80 inches
- VESA compatibility up to 656x400 for large-format displays
- Maximum capacity of 80 kg for professional AV installations
In the box
- 1 x Philips D-Line 75" screen
- 1 x Power cable
- 1 x Remote control with AAA batteries
- 1 x RS-232 cable
- 1 x RS-232 daisy-chain cable
- 1 x 1.8 m infrared sensor cable
- 1 x Mains switch cover
- 1 x USB cover with screws
- 1 x Cable ties
- 1 x Documentation
- 1 x B-Tech BT8442 wall mount
- 1 x Mounting hardware
- 1 x VESA screws
- 1 x Security screws
- 1 x Installation accessories
- 1 x User manual
Product description
Philips D-Line 75BDL4511D – 75” UHD 4K screen for professional digital signage
The Philips 75BDL4511D/00 is a large-format professional display designed for digital signage and visual communication projects requiring reliable, continuous high-definition display. Its 75-inch size, Ultra HD 4K resolution and 24/7 operation enable the display of impactful content in demanding professional environments.
Wide-angle display with ADS technology
Thanks to its ADS panel, this display guarantees excellent colour uniformity and optimal visibility from viewing angles of up to 178°. The 3840 x 2160 resolution ensures accurate reproduction of visual content, ideal for presentations, advertising and dynamic information.
Designed for intensive digital signage
The Philips D-Line 75” supports 24/7 operation in landscape or portrait orientation to suit all digital signage projects. The integrated FailOver technology allows automatic switching to a secondary source in the event of a main signal interruption.
Centralised management and simplified broadcasting
The CMND & Control solution facilitates remote administration of screens via the local network. With SmartPlayer, users can easily schedule and broadcast multimedia content from a USB stick without the need for additional external equipment.
Professional connectivity for AV integration
Equipped with multiple HDMI 2.0, DisplayPort, DVI-I, USB and OPS inputs, this display integrates easily into professional audiovisual infrastructures. Signal loop-through and RS232 control functions simplify multi-screen deployments.
Professional applications and compatibility
The Philips D-Line 75BDL4511D is ideally suited to shops, shopping centres, conference rooms, educational establishments, reception areas and corporate spaces requiring a reliable, high-performance large-format digital signage display. Compatible with VESA 600 x 400 mm wall mounts.
Technical specifications:
| Product type | Professional digital signage display |
| Screen size | 74.5 inches |
| Resolution | 3840 x 2160 UHD 4K |
| Brightness | 500 cd/m² |
| Panel technology | ADS |
| Contrast | 1200:1 |
| Dynamic contrast | 500000:1 |
| Response time | 8 ms |
| Viewing angle | 178° horizontal / vertical |
| Orientation | Landscape and portrait 24/7 |
| Built-in speakers | 2 x 10 W |
| Video inputs | HDMI 2.0 x3, DisplayPort 1.2, DVI-I |
| Video outputs | DisplayPort 1.2, HDMI 2.0 |
| Connectivity | USB 2.0, RJ45, RS232, OPS |
| VESA mounting | 600 x 400 mm |
| Dimensions | 1683.5 x 961.7 x 69.5 mm |
| Weight | 35.9 kg |
| Typical power consumption | 185 W |
| Warranty | 3 years |
B-Tech BT8442: professional wall mount for large screens and digital signage
Heavy-duty mount for demanding AV installations
The B-Tech BT8442 is a fixed wall mount designed for large-format professional displays up to 80 inches. Its reinforced structure allows it to support up to 80 kg, making it an ideal solution for corporate, retail, education and digital signage environments.
Universal VESA compatibility and flexible mounting
The mount supports VESA and non-VESA configurations up to 656x400, offering broad compatibility with professional displays from different manufacturers. It is also compatible with B-Tech collars and poles for advanced AV installations.
Low-profile design and precise alignment
Thanks to its low-profile design, the screen is mounted just 30 mm from the wall, achieving a clean, professional finish. It also features lateral adjustment and levelling screws that allow the screen’s position to be adjusted after installation.
Security and ease of installation
The hook-on system and keyhole-style mounting facilitate quick and secure installation. The BT8442 also features security locking screws to help prevent unauthorised removal in public or corporate spaces.
Professional use, compatibility and applications
Ideal for video conferencing, digital signage, retail, hospitality, corporate and educational displays. Designed for professional AV projects involving large screens and intensive use.
Technical specifications:
| Product type | Heavy-duty fixed wall mount |
| Recommended screen size | Up to 80" |
| Maximum load | 80 kg |
| VESA compatibility | Up to 656x400 |
| Non-VESA compatibility | Yes |
| Distance from wall | 30 mm |
| Installation type | Wall mounting |
| Lateral adjustment | Yes |
| Post-installation levelling | Yes |
| Security system | Integrated locking screws |
| Mounting type | Hook-on / Keyhole |
| Additional compatibility | B-Tech collars and posts |
| Material | Steel |
| Colour | Black |
| Manufacturer’s reference | BT8442/B |
Files
Philips D-Line 75BDL4511D - Datasheet
BT8442 - Datasheet
Product Specs.
| Manufacturer part # | 75BDL4511D/00 |
|---|---|
| EAN | 8712581778682 |
| Warranty | 3 years |
| By Sector | Retail, Public administrations, Corporate and Office |
| Use type | Meeting Room, Digital signage |
| Intended use | Indoor screen |
| Screen type | Flat Screen |
| Screen Technology | LED - LCD |
| Screen Orientation | Horizontal, Vertical |
| Screen Size | 75 inches |
| Screen Size | 75'' |
| Resolution | 4K |
| Operating hours | 24h per day |
| Brightness | 350 - 700 cd/m² |
| Other Features | Content Sharing, Remote Control Included, Embedded Content Manager |
| VESA standard | 600 × 400 mm |
| Energy efficiency class | G |
| Manufacturer part # | BT8442/B |
|---|---|
| Warranty | 10 years |
| By Sector | Transportation & logistics, Public administrations, Education, Corporate and Office |
| Accessory Type | Wall mounting bracket |
| Is Accessory of | Screen |
| Lone worker protection | No |
