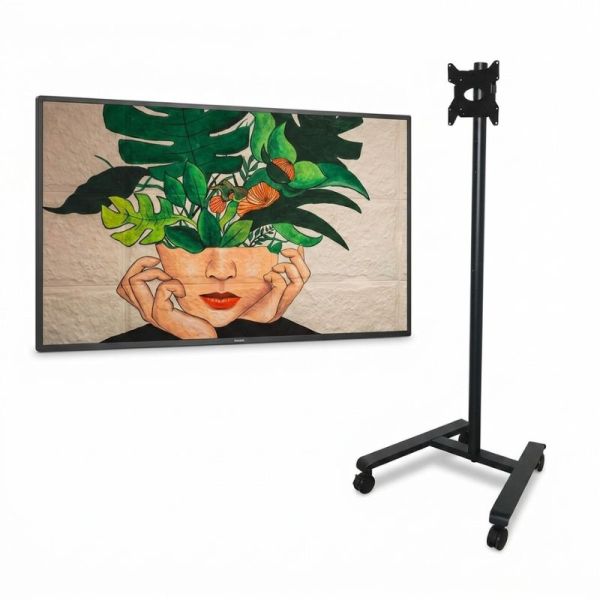

Pack Philips D-Line 32-inch Display + B-Tech BT7504 Mobile Stand
Internal ref: PHIL32BDL4511DBTSP

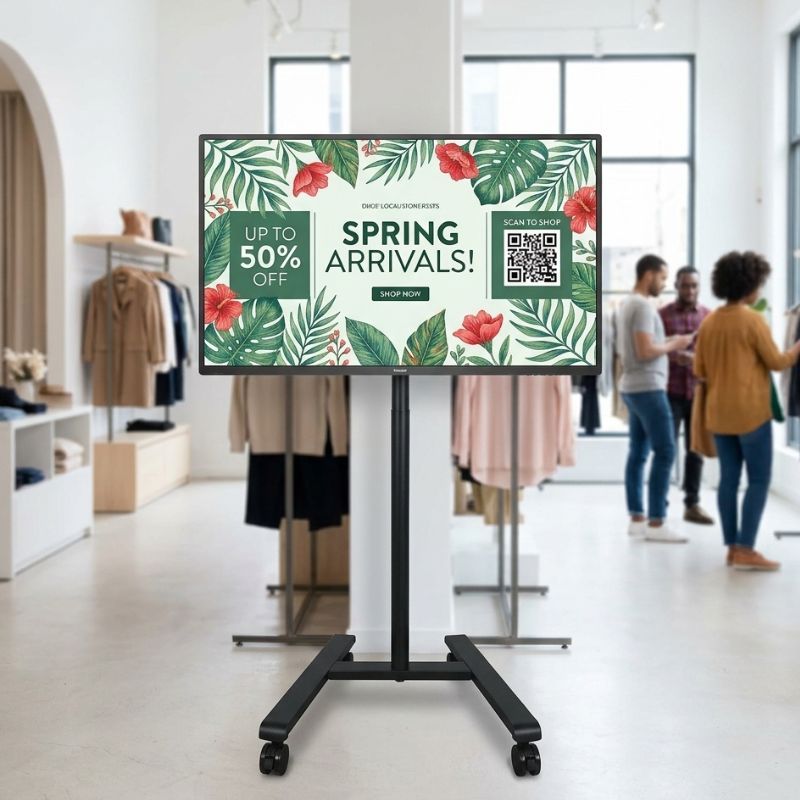

A compact digital signage solution featuring a 32-inch Philips screen and a B-Tech mobile stand – ideal for shops and public reception areas.
Key features
Philips 32BDL4511D/00 D Line 32-inch FHD display
- 32-inch Full HD digital signage display with 1920 x 1080 resolution
- 24/7 operation for continuous professional use
- 400 cd/m² brightness for clear, high-contrast content
B-Tech BT7504/B V2 Display Stand (up to 55 inches)
- Mobile display trolley for screens up to 55 inches
- Maximum load capacity of 25 kg for small to medium-sized displays
- VESA compatibility up to 400 x 400 mm
In the box
- 1 x Philips logo
- 1 x Mains cable
- 1 x Power switch cover
- 1 x IR sensor cable
- 1 x Quick start guide
- 1 x Remote control with AAA batteries
- 1 x RS232 cable
- 1 x RS232 daisy-chain cable
- 1 x USB cover with screw
- 1 x Cable tie
- 1 x BT7504/B V2 Display trolley
- 1 x Display mount
- 1 x Mounting hardware
Product description
Philips 32BDL4511D/00 D-Line for professional digital signage applications
The Philips 32BDL4511D/00 is a professional 32-inch digital signage display from the D-Line series. With its Full HD resolution, a brightness of 400 cd/m² and support for 24/7 continuous operation, it is suitable for businesses, retail, educational institutions and public spaces.
Clear image quality with ADS technology
The display features an ADS panel with a resolution of 1920 x 1080 pixels. The technology offers precise colour reproduction, smooth image transitions and a viewing angle of 178° horizontally and vertically, ensuring that content remains visible from almost any position.
Centralised control and content management
With CMND & Control, displays can be managed via the local network, inputs controlled and device status monitored. The integrated SmartPlayer enables the playback of videos, images and audio files directly from a USB storage device, as well as the scheduling of playlists via the on-screen menu.
Reliability for professional use
The integrated FailOver function ensures that content continues to be displayed even if the primary signal source fails. In addition, SmartPower reduces energy consumption through intelligent control of the backlight.
Applications and connectivity
The display supports installation in portrait and landscape formats and offers versatile connection options with HDMI, DisplayPort, DVI-I, USB, RS232, RJ45 and IR control. This makes it suitable for digital signage, information displays, retail, corporate communications and public information systems.
Technical specifications:
| Display size | 32 inches (81.28 cm) |
| Resolution | 1920 x 1080 pixels (Full HD) |
| Panel technology | ADS |
| Brightness | 400 cd/m² |
| Contrast ratio | 1200:1 |
| Dynamic contrast ratio | 500,000:1 |
| Response time | 8 ms |
| Viewing angle | 178° horizontal / 178° vertical |
| Colour reproduction | 16.7 million colours |
| Aspect ratio | 16:9 |
| Pixel pitch | 0.36375 x 0.36375 mm |
| Operating mode | 24/7 |
| Display orientation | Portrait and landscape |
| Video inputs | 2x HDMI 2.0, 1x DisplayPort 1.2, 1x DVI-I, 2x USB 2.0 |
| Video outputs | 1x HDMI 2.0, 1x DisplayPort 1.2 |
| Audio input | 3.5 mm jack |
| Audio output | 3.5 mm jack |
| Controls | RJ45, RS232C, IR |
| Built-in speakers | 2 x 10 W RMS |
| Typical power consumption | 36 W |
| Maximum power consumption | 60 W |
| Standby power consumption | 0.5 W |
| VESA mounting | 100 x 100 mm / 200 x 200 mm |
| Dimensions (W x H x D) | 726.5 x 425.4 x 65.1 mm |
| Weight | 5.7 kg |
| Colour | Black |
B-Tech BT7504/B V2 display trolley for flexible mobile presentations
The B-Tech BT7504/B V2 is a mobile display trolley for small to medium-sized screens up to 55 inches. The compact single-mast design allows for easy installation and is suitable for meeting rooms, reception areas, training rooms and flexible digital signage applications.
Flexible display mounting
The stand supports the mounting of screens in portrait or landscape format. Thanks to the three available mounting heights, the screen position can be adapted to different environments and requirements.
Easy mobility and neat installation
The lockable castors allow for easy transport between different rooms whilst ensuring stability during use. The integrated cable management contributes to a tidy and professional installation.
Expandable with accessories
The pole is compatible with B-Tech Ø50 mm accessory clamps. This allows optional shelves or other accessories to be added to adapt the solution to individual requirements.
Applications and compatibility
Suitable for displays up to 55 inches and 25 kg with VESA mounts up to 400 x 400 mm. Ideal for businesses, educational institutions, conference rooms and digital signage installations where mobility and flexibility are required.
Technical specifications:
| Product type | Mobile display trolley |
| Recommended screen size | Up to 55 inches |
| Maximum load capacity | 25 kg |
| VESA compatibility | Up to 400 x 400 mm |
| Display orientation | Portrait or landscape |
| Mounting heights | 3 positions |
| Cable management | Integrated |
| Castors | Lockable / braked |
| Accessory compatibility | B-Tech Ø50 mm accessory clamps |
| Product dimensions (W x H x D) | 779 x 1634 x 624 mm |
| Packaging dimensions (W x H x D) | 845 x 805 x 90 mm |
| Colour | Black |
Files
Philips 32BDL4511D_00 - Datasheet
BT7504 - Datasheet
Product Specs.
| Manufacturer part # | 32BDL4511D/00 |
|---|---|
| EAN | 8712581778637 |
| Warranty | 2 years |
| By Sector | Hotels and restaurants, Public administrations, Corporate and Office |
| Use type | Digital signage |
| Intended use | Indoor screen |
| Screen type | Flat Screen |
| Screen Technology | LED - LCD |
| Screen Orientation | Horizontal, Vertical |
| Screen Size | Between 27 and 40 inches |
| Screen Size | 32'' |
| Resolution | Full HD (1080p) |
| Operating hours | 24h per day |
| Brightness | 350 - 700 cd/m² |
| VESA standard | 100 × 100 mm, 200 × 200 mm |
| Manufacturer part # | BT7504/B V2 |
|---|---|
| EAN | 5019318308819 |
| Warranty | 2 years |
| Accessory Type | Support |
| Is Accessory of | Screen |
| Lone worker protection | No |
