Newline STV+ 98'' Commercial Display

Product description

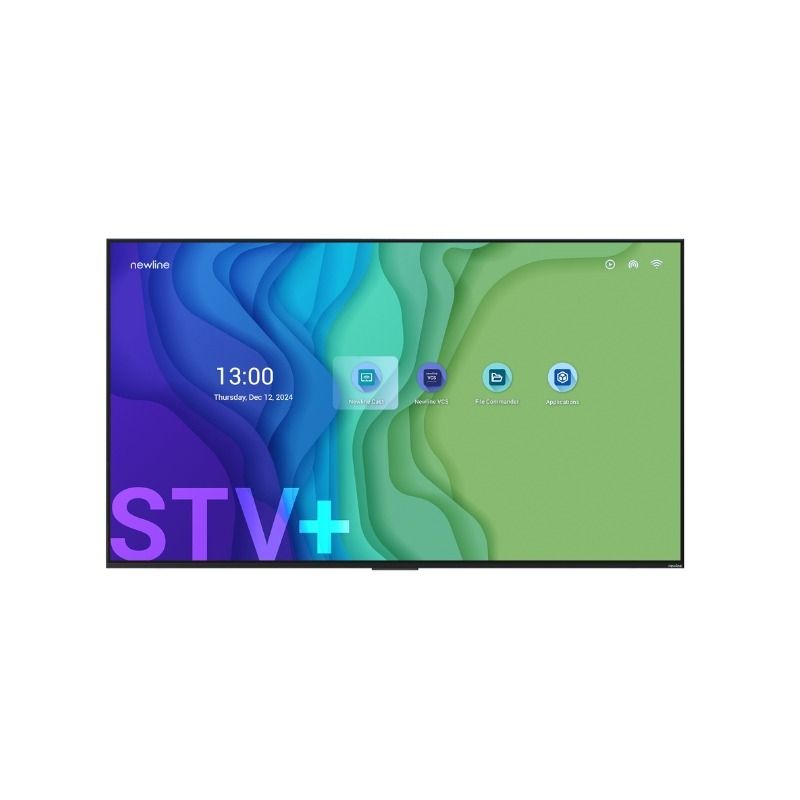

Newline STV+ 98'' Commercial Display

The Newline STV-9824-Plus is a premium 98” 4K UHD display designed for professional environments. With ultra-slim design, high brightness, 24/7 operation and Android 14, it’s ideal for signage, classrooms, and corporate communication.

Overview of the display

• 98" Direct LED display with ultra-slim edge-to-edge design
• Android 14 operating system
• 1.07 billion colours for rich visuals
• Cast+ for instant content sharing
• Display Management Plus for centralised control
• Wake-on-LAN and Wake-on-WiFi features
• Compatible with Signage Pro for digital signage
• OTA firmware updates enabled

Video specifications and performance

The STV-9824-Plus features a 3840 x 2160 4K UHD resolution Direct LED panel, 600 cd/m² brightness, 5000:1 contrast ratio, and 178º viewing angles. It supports 24/7 operation and has a 60 Hz refresh rate with 6.5 ms response time, ideal for dynamic professional environments.

Compatibility of devices and software

The STV-9824-Plus supports Cast, Cast+, Broadcast, App Store, Signage Pro, and Display Management Plus. It is compatible with the Click2Cast dongle for one-click wireless casting.

Collaborative features: how it stands out

Cast+ enables fast and easy sharing from any device, while the optional Click2Cast dongle adds one-button casting. Signage Pro manages content, and Display Management Plus handles remote settings and updates.

Technical specifications

• Model: STV-9824-Plus
• Screen Size: 98"
• Display Type: Direct LED
• Resolution: 3840 x 2160 (4K UHD)
• Brightness: 600 cd/m²
• Contrast Ratio: 5000:1
• Colours: 1.07 billion
• Viewing Angle: 178º
• Response Time: 6.5 ms
• Refresh Rate: 60 Hz
• Operating Time: 24 hrs / 7 days
• Display Lifetime: 50,000 hours
• Android 14 operating system
• CPU: 4 x A73 + 4 x A53 at 2.20 GHz
• GPU: Arm Mali-G52
• RAM: 4 GB
• Storage: 16 GB
• Wi-Fi 5 / Bluetooth 5.0
• Power Consumption: 140 W (standard), 0.5 W (standby)
• Audio: 2 x 15 W speakers (back)
• Sound System: 2.0
• Ports:
  • 1 x USB Type A 3.0
  • 1 x USB Type A 2.0
  • 3 x HDMI in 2.1 (HDCP 2.2, 4K@30 Hz)
  • 1 x Audio Line Out
  • 1 x SPDIF Out
  • 1 x LAN In (RJ45)
  • 1 x RS232
  • 1 x AV In
• HDMI EDID 1.4 and 2.0
• HDMI ARC / eARC support
• Wake-on-LAN and Wake-on-WiFi
• Hotspot: 2.4 GHz and 5.0 GHz
• VESA: 800 x 400 mm
• Outline Dimensions: 2182 x 1247 x 111 mm
• Net Weight: 59 kg
• Operating Temp: 0°C to 40°C
• Storage Temp: -20°C to 60°C
• Humidity: 10% – 90% operating, 20% – 80% storage (non-condensing)
