Newline STV+ 85'' Commercial Display

Product description

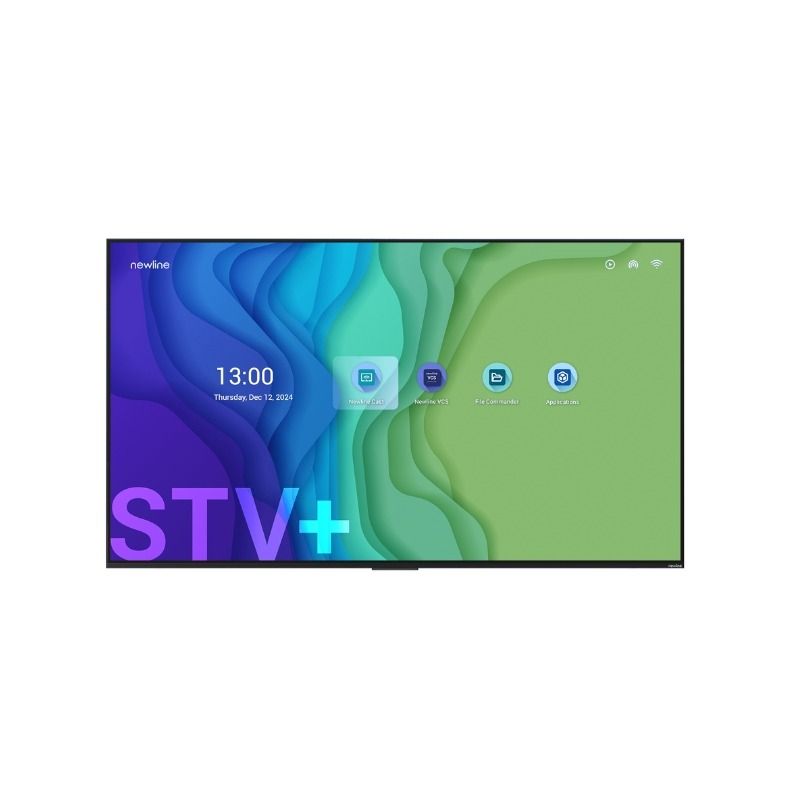

Newline STV+ 85'' Commercial Display

The STV-8524-Plus from Newline is an 85-inch UHD display engineered for demanding commercial environments. With long-hour usage support, Android 14 integration, and flexible content sharing options, it delivers dependable performance for signage, collaboration, or broadcast.

Overview of the display

• 85" Direct LED panel with ultra-slim bezel
• Android 14 preloaded for smart control
• Cast+ allows device-to-screen sharing
• Works with Signage Pro for visual content scheduling
• Remote setup management via Display Management Plus
• Supports both Wake-on-LAN and Wake-on-WiFi
• Designed to operate around the clock
• Ideal for high-traffic or multi-user settings

Video specifications and performance

This display features a 3840 x 2160 resolution with 400 cd/m² brightness, offering sharp clarity and brightness suitable for public-facing or indoor professional use. A 5000:1 contrast ratio, 178° viewing angle, and 6.5 ms response ensure clear, fluid visuals. It’s designed for 24/7 continuous use and has a 60 Hz refresh rate for stable display output.

Compatibility of devices and software

Easily connect and mirror content using the Click2Cast dongle. The STV-8524-Plus also integrates with Newline’s complete software suite: Cast, Broadcast, Cast+, Signage Pro, and Display Management Plus, accessible via the built-in app ecosystem.

Collaborative features: how it stands out

Share screens instantly through Cast+, or use Click2Cast for wireless connection in one click. Designed for teams and public displays alike, this model supports coordinated content sharing and control through Newline’s remote management tools.

Technical specifications

• Screen type: Direct LED
• Viewing area: 1872 x 1053 mm
• Aspect ratio: 16:9
• Brightness: 400 cd/m²
• Contrast ratio: 5000:1
• Colour support: 1.07 billion
• Viewing angle: 178°
• Response time: 6.5 ms
• Refresh rate: 60 Hz
• Lifetime: 50,000 hours
• Haze level: 2%
• Power usage: 138 W
• Standby power: 0.5 W
• CPU: 4 x Cortex-A73 + 4 x Cortex-A53 @ 2.20 GHz
• GPU: Arm Mali-G52
• RAM: 4 GB
• Internal storage: 16 GB
• OS: Android 14
• Connectivity: Wi-Fi 5, Bluetooth 5.0
• Mounting: VESA 500 x 400 mm
• Ports: 3 x HDMI 2.1, 1 x USB-A 3.0, 1 x USB-A 2.0, LAN (RJ45), RS232, AV In, SPDIF Out, Audio Line Out
• Audio output: 2 x 15 W rear-positioned speakers
• Operating temperature: 0°C to 40°C
• Storage temperature: -20°C to 60°C
• Humidity: 10–90% (operating), 20–80% (storage, non-condensing)
