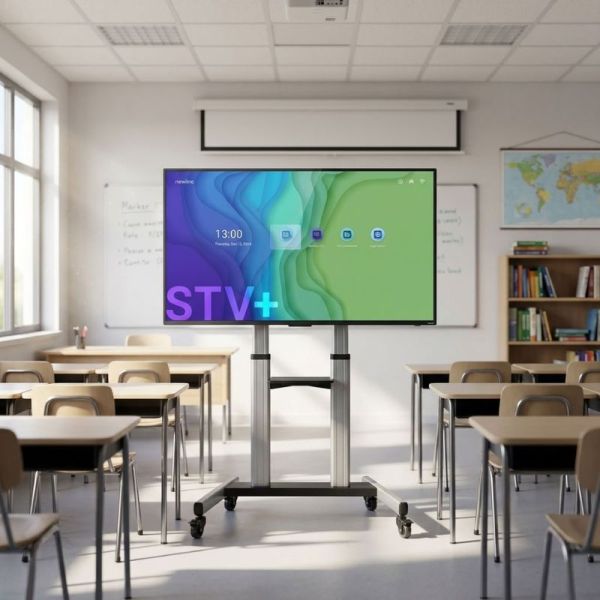

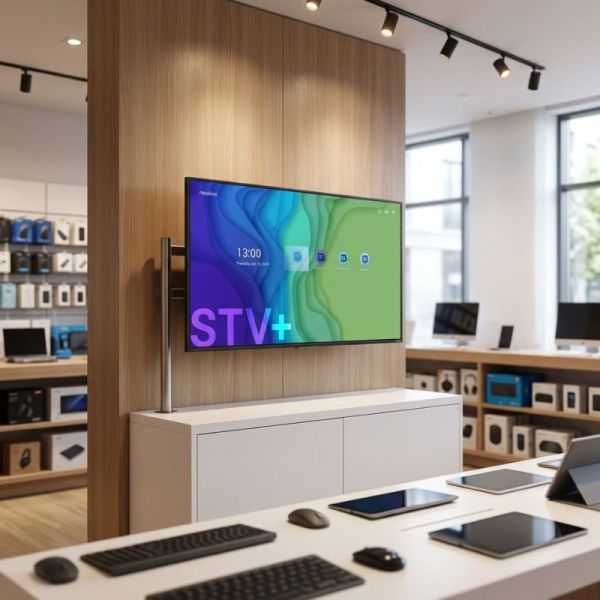

Newline STV+ 65'' Commercial Display

Product description

Newline STV+ 65'' Commercial Display

The Newline STV-6524-Plus is a 65" UHD commercial display designed for uninterrupted performance in modern workspaces. With Android 14, Cast+ for instant screen sharing, and support for digital signage tools, it’s ideal for high-traffic, high-impact environments.

Overview of the display

• Generous 65-inch viewing area
• Slim-profile, edge-to-edge glass
• Embedded Android 14 platform
• Simple content casting via Cast+
• HDMI 2.1 support with EDID
• Display Management Plus enabled
• Compatible with Signage Pro
• Made for all-day, everyday operation

Video specifications and performance

With a 3840 x 2160 4K UHD resolution and 300 cd/m² brightness, the STV-6524-Plus delivers clear and detailed visuals. It offers a 5000:1 contrast ratio, 178° viewing angle, and 6.5 ms response time, ideal for long-duration digital playback and signage. A 60 Hz refresh rate ensures smooth visuals, even in extended use cases.

Compatibility of devices and software

This model is compatible with the Click2Cast dongle for one-touch wireless projection. It supports the Newline ecosystem including Cast, Broadcast, Cast+, Signage Pro, and Display Management Plus, accessible via the integrated app store.

Collaborative features: how it stands out

Designed for frictionless collaboration, the STV-6524-Plus enables cable-free content display using Cast+. With the Click2Cast accessory, users can initiate wireless screen sharing instantly. Manage digital communications with intuitive software tools built for simplicity.

Technical specifications

• Panel type: Direct LED
• Active area: 1428 x 804 mm
• Image format: 16:9
• Brightness level: 300 cd/m²
• Contrast: 5000:1
• Colour range: 1.07 billion
• Viewing angle: 178°
• Response speed: 6.5 ms
• Refresh rate: 60 Hz
• Panel life expectancy: 50,000 hours
• Surface haze level: 2%
• Normal power: 94 W
• Standby power: 0.5 W
• CPU: 4 x A73 + 4 x A53 @ 2.20 GHz
• GPU: Arm Mali-G52
• RAM: 4 GB
• Flash storage: 16 GB
• Operating system: Android 14
• Wireless: Wi-Fi 5, Bluetooth 5.0
• VESA mount size: 400 x 300 mm
• I/O: 3 x HDMI 2.1, 1 x USB-A 3.0, 1 x USB-A 2.0, LAN (RJ45), RS232, AV In, SPDIF Out, Audio Line Out
• Integrated audio: 2 x 15 W rear-facing speakers
• Temperature: 0°C to 40°C (operating), -20°C to 60°C (storage)
• Humidity: 10–90% operating / 20–80% storage (non-condensing)
