Newline STV+ 55'' Commercial Display
Internal ref: NEWSTV5524UK // Manufacturer part #: STV-5524PLUS
Modern 55" 4K UHD commercial display with Android 14 and wireless Cast+ sharing.
£849.99
£1,019.99 Incl. VAT
Bulk orders, request a quote now!
2 years of manufacturer warranty Subject to manufacturer conditions
Pay in 3 interest-free payments of Show more
Key features
- True 4K UHD resolution
- Sleek edge-to-edge form
- Android 14 operating system
- Cast+ for fast screen sharing
- Signage Pro integration
- 24/7 display usage
- Long 50,000-hour lifespan
- Wake-on-LAN & Wake-on-WiFi
In the box
- 1 x Newline STV+ 55'' Commercial Display
- 1 x Power Cord (5ft)
- 1 x RCA Cable
- 1 x Remote Control
- 2 x AAA Battery
Product description

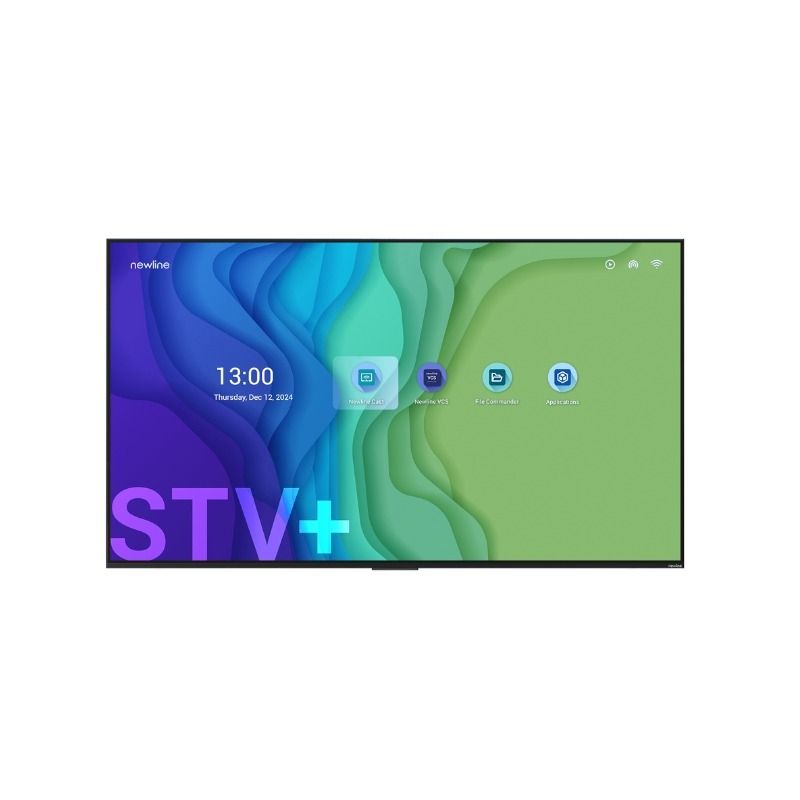

Newline STV+ 55'' Commercial Display
The Newline STV-5524-Plus is a 55" 4K UHD commercial display designed for continuous, high-demand environments. With Android 14, built-in Cast+ wireless sharing, and support for digital signage tools, it delivers reliable performance and modern versatility.
Overview of the display
- 55-inch commercial display panel
- Slim bezel and contemporary look
- Preloaded with Android 14
- Cast+ sharing from connected devices
- Wake-on-network support
- Remote display control via Display Management Plus
- Signage Pro for digital content scheduling
- Designed for high usage environments
Video specifications and performance
The STV-5524-Plus features a 55" Direct LED display with Ultra HD 3840 x 2160 resolution, providing sharp visuals and vibrant colour depth with 1.07 billion colours. It offers 300 cd/m² brightness and a 5000:1 contrast ratio. With 178º viewing angles, 6.5 ms response, and 60 Hz refresh, it's optimised for clarity and dependability during continuous operation.
Compatibility of devices and software
The STV-5524-Plus works with Newline's Click2Cast dongle for quick, wireless projection. Software support includes Cast, Broadcast, Cast+, Signage Pro, and Display Management Plus, all accessible through the integrated App Store.
Collaborative features: how it stands out
With Cast+ enabled, users can share content instantly without cables. Click2Cast offers a single-button solution for wireless display. Integration with Newline's ecosystem simplifies collaboration, digital signage, and screen control across departments.
Technical specifications
- Display technology: Direct LED
- Viewable area: 1210 x 680 mm
- Aspect ratio: 16:9
- Brightness: 300 cd/m²
- Static contrast: 5000:1
- Colour support: 1.07 billion
- Viewing angle: 178º
- Response time: 6.5 ms
- Refresh rate: 60 Hz
- Screen life: 50,000 hours
- Surface haze: 2%
- Power usage (normal): 84 W
- Power (standby): 0.5 W
- Processor: 4 x A73 2.20 GHz + 4 x A53 2.20 GHz
- GPU: Arm Mali-G52
- RAM: 4 GB
- Internal storage: 16 GB
- OS: Android 14
- Connectivity: Wi-Fi 5, Bluetooth 5.0
- VESA mount: 400 x 300 mm
- Connections: 3 x HDMI 2.1, 1 x USB-A 3.0, 1 x USB-A 2.0, LAN (RJ45), AV In, RS232, SPDIF Out, Audio Line Out
- Integrated speakers: 2 x 15 W rear
- Operating temp: 0°C to 40°C
- Storage temp: -20°C to 60°C
- Humidity (op/storage): 10–90% / 20–80% non-condensing
Files
Newline STV+ 55'' Commercial Display - Datasheet (EN)
Product Specs.
| Manufacturer part # | STV-5524PLUS |
|---|---|
| Warranty | 2 years |
| Use type | Meeting Room |
| Screen Size | 55" |
| Screen Resolution | 4K |
| Brightness | 300 - 350 cd/m² |
| Other Features | With Android, Remote Control Included, Screen |
