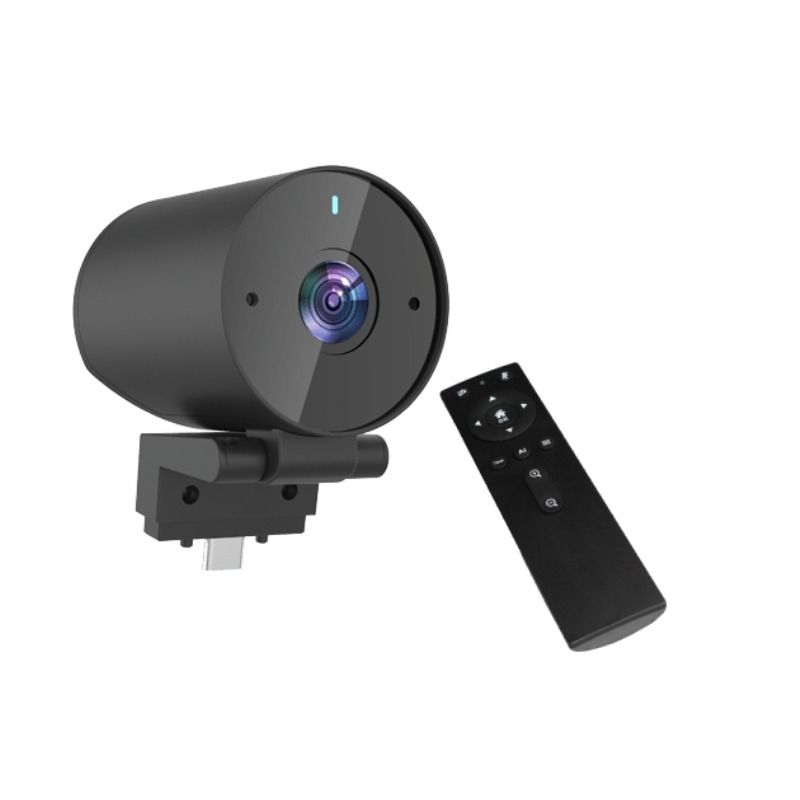

Newline MODCAM+ all-in-one 4K AI Camera and Mic Solution

Product description

Newline MODCAM+ all-in-one 4K AI Camera and Mic Solution

Compact 4K AI camera with built-in dual microphones, ideal for enhancing virtual meetings and distance learning through advanced framing and wide-angle coverage.

Recommended Usage Environments

• Remote teaching and e-learning setups
• Virtual business meetings and conferences
• Integration with Newline interactive displays
• Office meeting rooms using Zoom, Teams, or Google Meet

Key Functional Specifications

This camera features a Sony 4K CMOS sensor with 3840 × 2160 resolution at 30 fps, a 120° wide field of view, and tilt from -10° to +90°. USB-powered (5V/500 mA) via Type-C, it includes anti-flicker, white balance, exposure, denoise, and ePTZ for flexible digital control.

Platform and Device Compatibility

Compatible with UVC/UVC1 devices on Windows and macOS. Works seamlessly with Zoom, Microsoft Teams, and Google Meet. Designed for Newline displays including Flex, 21Q, 22Q, 22Z, 23QA, 23QAS, 23QCA, and 23QCA+. Connectivity via USB Type-C.

User Experience & Features

AI-powered auto-framing and face tracking ensure clear focus on speakers. Dual mic array with 2D/3D noise reduction enhances audio clarity. ePTZ allows digital pan/tilt/zoom for precise framing during calls. Settings include brightness, contrast, and gamma control.

Technical specifications

• Iris Diaphragm: F2.2 ± 5%
• Depth of Field: 0.8 m ~ Infinity
• Operating Temperature: 0–50ºC
• Dimensions: 73 × 61 × 35 mm
• Net Weight: 0.3 kg
• Signal-to-Noise Ratio: 74 dB
• Sensitivity: -30 ± 2 dB
• Duplex: Yes
• Automatic Gain Control (AGC): Yes
• Certifications: FCC, CE, KCM, UKCA, RoHS, EAC
