Newline 86'' Vega Pro Touch Panel

Product description

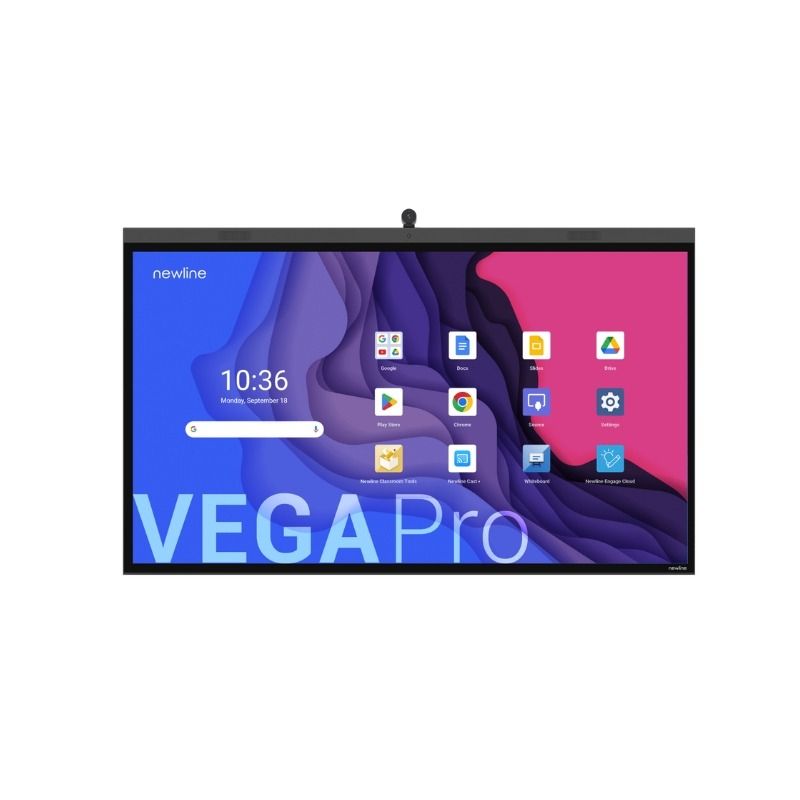

Newline 86'' Vega Pro Touch Panel

The Vega Pro 86" is a Google EDLA-certified interactive display designed for premium corporate collaboration. Featuring AI-powered 4K video, 8-mic array, and Android 13, it delivers an immersive and reliable all-in-one experience for large meeting spaces.

Overview of the display

• Edge-to-edge antimicrobial tempered glass
• Ultra-responsive PCAP touch with certified optical bonding
• Anti-glare and anti-fingerprint surface
• Supports finger, fist, and passive pen writing
• Android 13 certified operating system
• Includes 2 x passive pens
• Multiuser profile support
• Integrated proximity sensor
• Wake-on-LAN and embedded Google apps

Video specifications and performance

The 86" Vega Pro display features a 4K UHD resolution (3840 × 2160), wide colour gamut, and direct LED backlighting. It delivers 450 cd/m² brightness, 5000:1 contrast ratio, 178° viewing angle, and a 5 ms response time. Audio comes from two 20W front-facing speakers and a 15W rear subwoofer. The integrated 4K AI camera supports 30 fps, 120° field of view, and 15° tilt. Certified optical bonding improves clarity and precision, while PCAP ensures accurate multi-touch control.

Compatibility of devices and software

Vega Pro includes USB-C (100W), HDMI IN 2.1 (4K @ 60Hz), DisplayPort 1.2, OPS and SDM-S slots, and Gigabit RJ45. Integrated Wi-Fi 6 and Bluetooth 5.2 modules ensure fast wireless performance. DATA NOT FOUND on specific conferencing platforms.

Collaborative features: how it stands out

With the Newline Interactive Ecosystem, the Vega Pro 86" enables wireless screen sharing, smart collaboration tools, and fast setup across devices. Its modular design supports tailored configurations through compatible accessories. DATA NOT FOUND on app names or control methods.

Technical specifications

• Model: TT-8624Z
• Display area: 1895 × 1066 mm
• Outline dimensions: 1965 × 1184 × 95 mm
• Net weight: 59 kg
• VESA: 800 × 400 mm
• Resolution: 3840 × 2160 (4K)
• Brightness: 450 cd/m²
• Contrast ratio: 5000:1
• Viewing angle: 178°
• Response time: 5 ms
• Touch accuracy: ±1 mm
• Touch surface hardness: 7 MoHs / Pencil 9H
• Transparency: >88%, Haze: 2–5%
• Display lifetime: ≥50,000 hours
• Touch points: 40 (Windows), 20 (Android/Mac/Linux)
• Speakers: 20W ×2 front, 15W ×1 subwoofer (rear)
• Microphones: 8-mic array, 8 m pickup, echo cancellation, beamforming, noise reduction
• Camera: 4K AI camera, 3840 × 2160 @ 30 fps, 120° FOV, 15° tilt
• SoC: Cortex-A73 ×4 + Cortex-A53 ×4
• GPU: Mali Odin G52 ×8
• RAM: 8 GB DDR4
• Storage: 128 GB (expandable)
• Operating system: Android 13 Certified
• Power consumption: 146 W (standard), <0.5 W (standby)

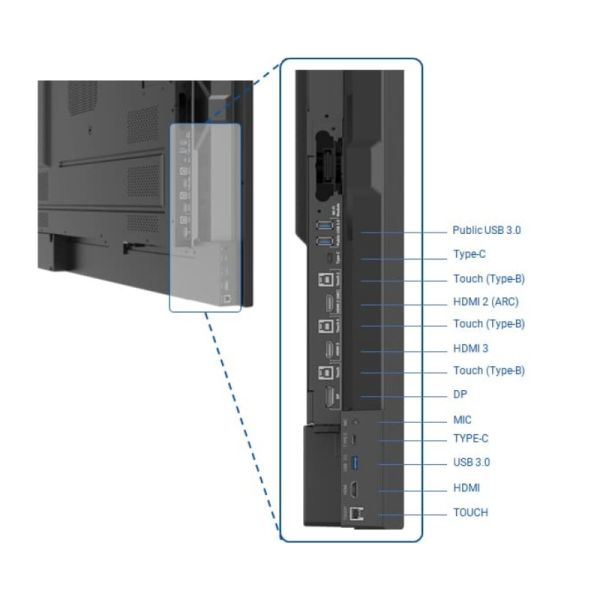

• Rear I/O: HDMI IN/OUT, DisplayPort, USB-A/C, USB-B (Touch), RS232, RJ45, SPDIF, Audio Line Out, OPS and SDM-S slots
