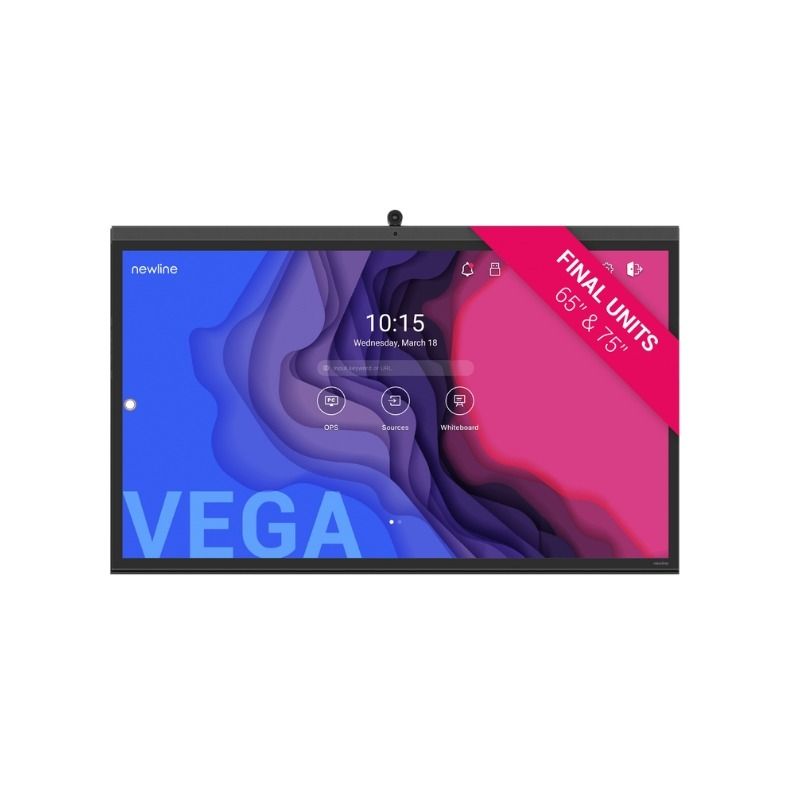

Newline 65'' Vega Touch Panel

Product description

Newline 65'' Vega Interactive Display

The Vega 65" interactive display is Newline’s flagship model designed to deliver a premium, all-in-one AV experience for professional meeting environments. With its sleek 3mm ultra-slim bezel and edge-to-edge glass, it offers an elegant and immersive interface. This display features PCAP touch with certified optical bonding, built-in 4K camera, 8-microphone array, powerful front-facing speakers, and subwoofer, making it ideal for high-level corporate collaboration.

Overview of the display

• Display area: 1428 × 804 mm
• 3mm ultra-slim bezel with edge-to-edge glass
• Anti-glare + anti-fingerprint + antimicrobial tempered glass
• Certified optical bonding with PCAP (Projected Capacitive) touch
• Supports touch via passive pen, finger, or fist
• Includes 2 x PCAP passive pens (no battery)
• Android 11 (upgradable via OTA to Android 13)
• Multi-user profiles: 1 admin + 5 users
• Proximity sensor included

Video specifications and performance

The 65" Vega uses direct LED backlighting and has a 4K UHD resolution of 3840 x 2160 with a 16:9 aspect ratio. It offers 400 cd/m² brightness, a 5000:1 contrast ratio, a 178° viewing angle, and a 6 ms response time. The screen supports 40 touch points on Windows and 20 on Android. A front-facing 20W x2 speaker system and a 15W subwoofer provide sound. It also includes a 4K camera with a 120° field of view and 15° tilt. PCAP touch ensures precise and smooth interaction using finger, pen, or fist.

Compatibility of devices and software

Includes USB Type-C (100W), HDMI IN 2.0, USB-A 3.0, USB-B for touch, and microphone input on the side. Rear I/O includes DisplayPort 1.2, HDMI OUT, RS232, Gigabit RJ45, USB-A and USB-C (15W), OPS and SDM-S slots. DATA NOT FOUND on supported video conferencing platforms or specific software.

Collaborative features: how it stands out

The built-in Interactive Ecosystem enables screen sharing, concept mapping, broadcasting, and fast video conferencing without cables. DATA NOT FOUND on exact software names or sharing mechanisms.

Technical specifications

• Model: TT-6522Z
• Display area: 1428 × 804 mm
• Outline dimensions: 1497.1 × 919.6 × 83.8 mm
• Net weight: 36 kg
• Resolution: 3840 x 2160 (4K)
• Brightness: 400 cd/m²
• Contrast ratio: 5000:1
• Viewing angle: 178°
• Response time: 6 ms
• Display lifetime: ≥50,000 hours
• Touch surface hardness: 7H
• Touch accuracy: ±1 mm
• Transparency: >88%, Haze: 2–5%
• Speakers: 20W x2 (front), Subwoofer 15W (rear)
• Microphones: 8-array, pickup distance 8 m, echo cancellation, beamforming, noise reduction
• SoC: Amlogic A311D2 octa-core
• RAM: 8 GB DDR4
• Storage: 128 GB
• Power consumption (standard): 133 W
• Power consumption (standby): <0.5 W
• VESA: 600 × 400 mm
