iiyama ProLite LH5075UHS 50 inch 4K Signage

Product description

iiyama ProLite LH5075UHS – reliable 4K digital signage for 24/7 operation

The iiyama ProLite LH5075UHS-B2AG is a professional 50-inch digital signage display designed for continuous operation in information, advertising and communication solutions. The display combines 4K UHD resolution, 500 cd/m² brightness and is designed for 24/7 operation.

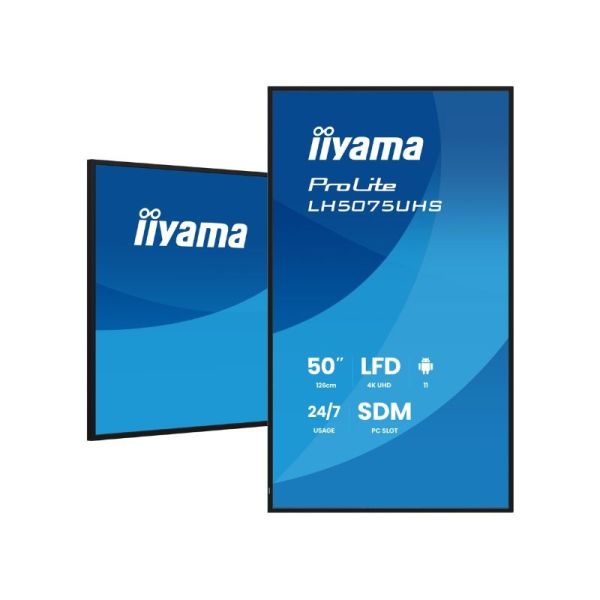

It can be installed in both landscape and portrait orientation. This allows the display to be flexibly adapted to different content, spatial conditions and industry requirements.

High-detail display with 4K UHD

The VA panel displays content at 3840 × 2160 pixels at 60 Hz. The contrast ratio of 5000:1 ensures clear differentiation between light and dark areas of the image, whilst the brightness of 500 cd/m² ensures highly visible playback.

The matt, anti-glare glass surface has a haze value of 25 per cent. Viewing angles of 178° horizontally and vertically make it easier to view content from different positions.

Android 11 and integrated content management

With the integrated Android 11 operating system, compatible apps can be installed directly onto the display. The hardware platform comprises an A311D2 SoC, eight CPU cores, a G52-MP8 GPU, 4 GB of RAM and 32 GB of internal storage.

The integrated iiSignage² content management system enables the secure remote management and display of information and advertising content. iiControl allows displays to be managed and monitored, whilst iiShare and EShare support the wireless transmission of screen content.

Automatic signal switching with FailOver

The Signal FailOver function automatically detects available input sources. If the signal from the prioritised input fails, the display switches to the next available input.

In addition to physical connections, the browser, media player and user-defined inputs can also be included in the prioritisation. This supports continuous content playback in business-critical digital signage environments.

Flexible expansion via Intel® SDM-L

The integrated Intel® SDM-L slot enables expansion with a separately available Smart Display Module. This allows additional PC performance to be integrated directly into the display without the need to visibly mount an external computer.

A microSD card slot and integrated media playback offer further options for content delivery. The removable Wi-Fi module supports transmission and management via compatible wireless networks.

Versatile connectivity and daisy-chain operation

Three HDMI 2.0 inputs and one DisplayPort 1.2 input support resolutions of up to 3840 × 2160 pixels at 60 Hz. ARC is available on the third HDMI port.

The DisplayPort output supports MST daisy-chaining and can output signals from all inputs. This makes the display suitable for installations with multiple screens connected in series and for video wall applications.

RS-232C inputs and outputs, an RJ45 socket and IR loop-through are available for control and network integration. Two USB 2.0 ports allow the connection of suitable peripheral devices or storage media.

Built-in audio and controlled continuous operation

Two built-in 10 W speakers enable direct audio playback for multimedia and information content. Headphones or compatible audio devices can also be connected via the 3.5 mm audio output.

The fanless metal housing is designed for continuous operation. Features such as anti-image retention, scheduling, automatic shutdown, energy-saving options and a switch-off timer support controlled operation.

Flexible mounting and professional integration

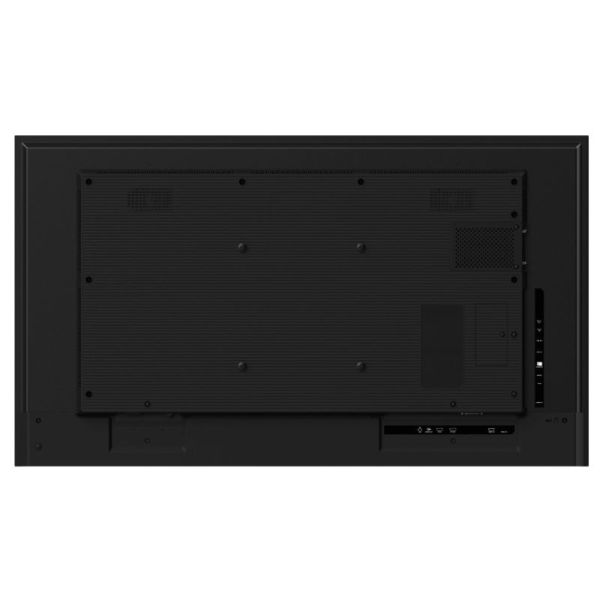

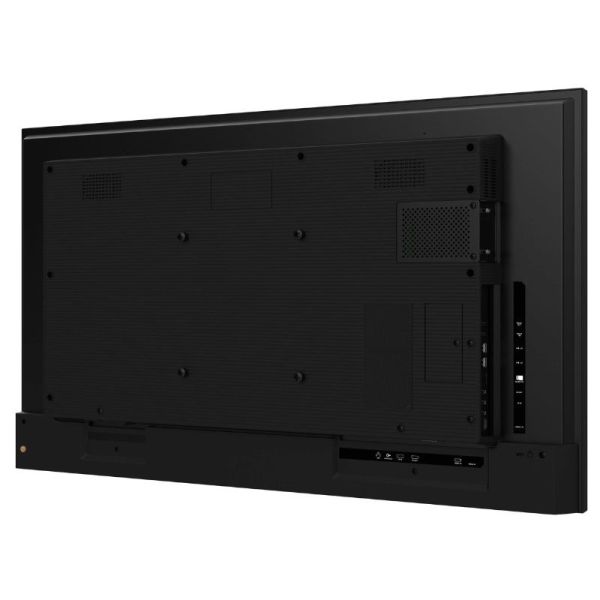

The display supports the VESA 400 × 400 mm standard and also features a VESA 100 ×-100-mm mount for a mini PC. Special cable clamps facilitate neat cable management behind the display.

With a housing depth of 55 mm and a narrow bezel, the display can be integrated in a space-saving manner into retail spaces, businesses, educational institutions and other professional digital signage environments.

Technical specifications:
