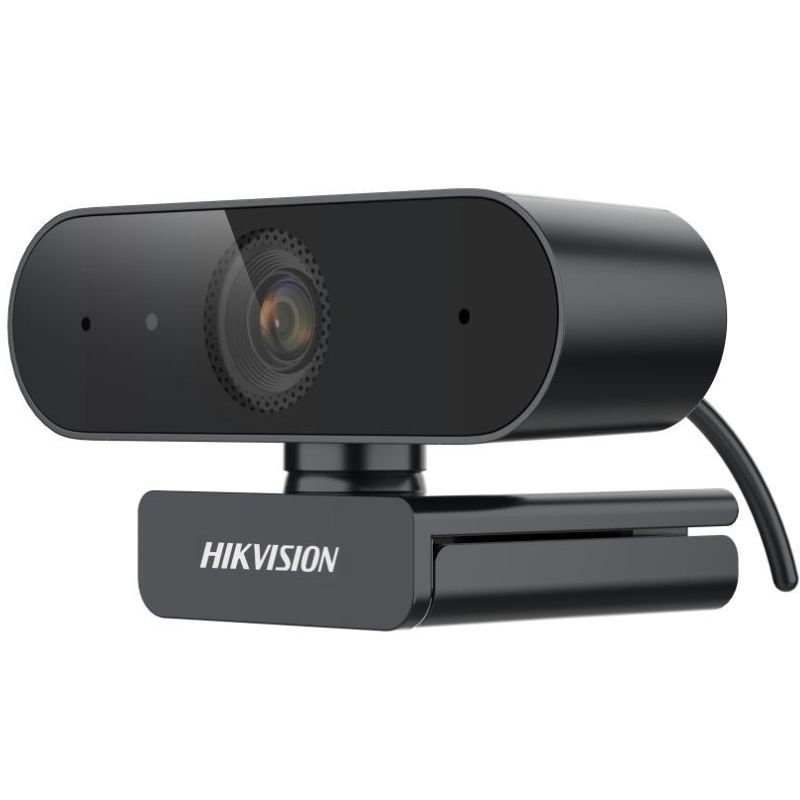

Hikvision DS-U02P — 2 MP Full HD USB Webcam with Built-in Microphone

Product description

Hikvision DS-U02P: Full HD USB webcam with integrated microphone for professional video calls

The Hikvision DS-U02P is a 2 MP Full HD USB webcam designed for everyday video communication at a computer workstation. Combining 1080p video, an integrated microphone and USB 2.0 connectivity, it offers a compact solution for individual video meetings, remote communication and online training.

Its 80° horizontal field of view, adjustable camera angle and 1.5 m USB cable make it suitable for desktop setups where straightforward camera positioning and wired connectivity are required.

Full HD 1080p video for clearer communication

Present yourself clearly during online meetings with a 2 MP CMOS image sensor and 1920 x 1080 Full HD resolution. The camera captures detailed video suitable for everyday professional conversations and remote collaboration.

In MJPG format, it supports Full HD video at up to 30 frames per second, helping maintain natural-looking movement during video calls. Lower resolutions are also supported for applications requiring different video formats.

The camera uses a 3.6 mm fixed focal lens with a specified object distance range from 10 cm to infinity, accommodating different distances between the webcam and the subject.

Wide-angle viewing for desktop and small-group meetings

The lens provides an 80° horizontal, 50° vertical and 88° diagonal field of view, offering a practical balance between individual framing and wider views of a workspace.

For positioning flexibility, the camera supports 360° pan adjustment and tilt adjustment from -15° to +15°. Users can adjust the direction of the camera to suit their seating position or meeting setup.

These characteristics make the webcam suitable for individual desks, home offices and smaller collaborative environments where a wide-angle image is useful.

Built-in microphone for voice communication

Communicate during video calls using the webcam's integrated microphone, reducing the need for a separate microphone in basic desktop meeting setups.

The microphone operates with a 16 kHz audio sampling rate, providing audio input alongside the webcam's video connection.

The integrated audio design is useful for online meetings, remote training and everyday workplace communication where a compact camera and microphone combination is preferred.

USB 2.0 connection with low power consumption

Connect the webcam to a compatible USB-equipped device through its USB 2.0 interface. The supplied 1.5 m connection cable provides flexibility when positioning the camera around a desktop computer or monitor.

The webcam receives power through its USB connection at 5 V DC ±5%, with a maximum specified power consumption of just 1.6 W.

This wired configuration combines video output, microphone input and power through the USB connection, helping reduce the number of separate connections needed at a workstation.

Colour imaging and flexible video formats

The DS-U02P supports 24/7 colour imaging and has a minimum illumination specification of 0.1 lux at F1.2 with automatic gain control enabled.

Its MJPG video output supports several resolutions, including 1920 x 1080, 1280 x 960, 1280 x 720 and 640 x 480. YUV output is also available, with frame rates varying according to the selected resolution.

This range of video formats gives compatible host applications flexibility when selecting an appropriate resolution and frame rate for the available connection and processing requirements.

Compact webcam for everyday workstation use

With dimensions of 80.16 x 48.6 x 42.18 mm and a weight of approximately 93 g, the webcam has a compact design suited to desktop video communication.

Its plastic housing includes a white operating indicator, which illuminates during normal operation and switches off when the camera is in standby.

The camera is specified for operating temperatures from -10°C to 45°C and humidity levels up to 90%, provided condensation does not occur.

Applications and compatibility for professional video communication

The Hikvision DS-U02P is suitable for individual office workstations, home offices, remote meetings, online training and everyday video communication. Its Full HD camera and integrated microphone provide the essential video and audio functions required for desktop conferencing.

The USB 2.0 connection allows integration with compatible computers and host devices. However, the manufacturer does not specify individual operating systems or certify particular video conferencing platforms in this datasheet.

Before deployment, organisations should confirm compatibility with their chosen operating system, conferencing software and USB hardware configuration.

Technical specifications:
