Hikvision DS-D6022FN-B 22 Inch Signage
Internal ref: HKDSD6022FNB // Manufacturer part #: DS-D6022FN-B
22-inch Full HD indoor digital signage display with Android system, flexible content scheduling and remote management capabilities.
£249.99
£299.99 Incl. VAT
3 years of manufacturer warranty Subject to manufacturer conditions
Pay in 3 interest-free payments of Show more
Key features
- 21.5-inch Full HD display with 1920 x 1080 resolution for clear digital signage content
- Android operating system with Cortex-A17 quad-core processor and 2 GB RAM
- Flexible media playback supporting images, videos, audio, PDF files, webpages and live video
- Remote management for centralised control of one or multiple displays
- Programmable scheduling with loop, weekly, daily and customised playback modes
- Wi-Fi and LAN connectivity for easy content distribution and management
- Slim all-in-one design suitable for indoor wall-mounted installations
In the box
- Hikvision DS-D6022FN-B digital signage display
- Wall-mounted backboard
- Power cord
- Remote control
- 2 batteries
- Screw package
- M3 screws
Product description
Hikvision DS-D6022FN-B for Flexible Indoor Digital Signage
The Hikvision DS-D6022FN-B is a 21.5-inch indoor digital signage display designed for professional information broadcasting and advertising applications. With a Full HD resolution, integrated Android platform and remote management features, it supports efficient content delivery in retail, hospitality, finance and public environments.
Clear Full HD Display for Professional Content
The display features a 1920 x 1080 Full HD resolution and a 21.5-inch industrial panel for clear and detailed image reproduction. With a brightness of 250 cd/m², 178° viewing angles and 16.7 million colours, it delivers consistent visibility for videos, images and informational content.
Integrated Android System with Flexible Media Support
The integrated Android 8.1 operating system is powered by a Cortex-A17 quad-core processor with 2 GB RAM and 16 GB internal storage. The display supports a wide range of media formats including video, audio, images, PDF files, webpages, scrolling subtitles and live video streams.
Centralised Management and Scheduling
The DS-D6022FN-B supports remote management and content distribution across one or multiple displays. Flexible scheduling modes include daily, weekly, loop and custom playback configurations. The system also supports local USB updates and timed brightness or volume adjustments.
Designed for Indoor Commercial Environments

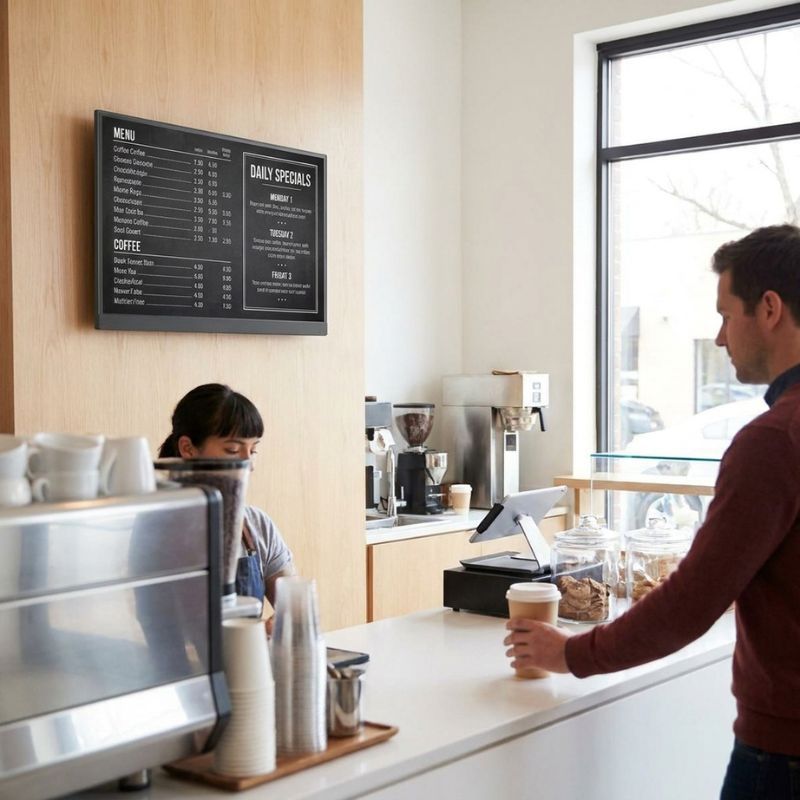

Its slim all-in-one design and wall-mounted installation make it suitable for professional indoor environments such as retail stores, reception areas, transport facilities, financial institutions and entertainment venues. Integrated Wi-Fi and LAN connectivity simplify deployment and network integration.
Use Cases and Compatibility
The Hikvision DS-D6022FN-B is suitable for digital advertising, public information display and promotional communication. It supports remote content management systems and can operate as part of a centrally managed digital signage network.
Technical specifications:
| Screen size | 21.5 inch |
| Resolution | 1920 × 1080 |
| Brightness | 250 cd/m² |
| Contrast ratio | 3000:1 |
| Viewing angle | 178° horizontal / 178° vertical |
| Backlight type | ELED |
| Operating system | Android 8.1 |
| Processor | Cortex-A17 quad-core |
| Memory | 2 GB RAM |
| Internal storage | 16 GB |
| Network connectivity | LAN, Wi-Fi |
| USB ports | 2 × USB 2.0 |
| Audio input | 1 × Audio In |
| Audio output | 1 × Audio Out |
| Card slot | TF card |
| Bluetooth | Bluetooth 4.0 |
| Integrated speakers | 2 × 5 W |
| Power consumption | ≤ 40 W |
| Standby consumption | ≤ 10 W |
| Operating temperature | 0 °C to 40 °C |

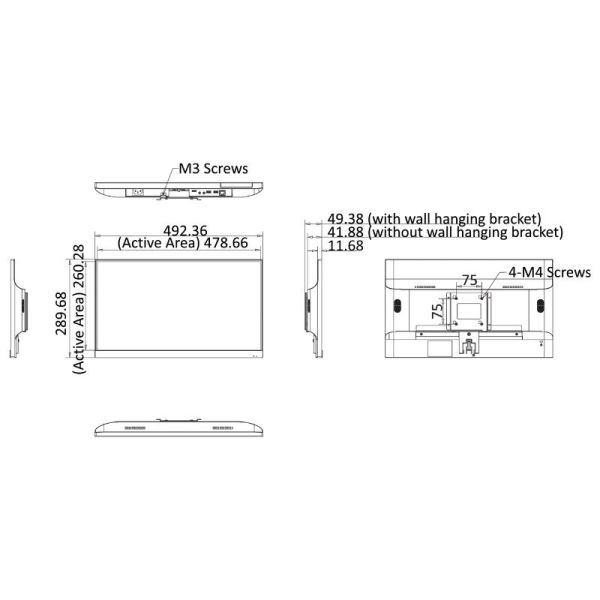

| Dimensions | 492.36 × 289.68 × 41.88 mm |
| Net weight | 3.03 kg |
| Installation type | Wall-mounted |
Files
DS-D6022FN-B - Datasheet
Product Specs.
| Manufacturer part # | DS-D6022FN-B |
|---|---|
| EAN | 6936420000000 |
| Warranty | 3 years |
| By Sector | Retail, Hotels and restaurants, Corporate and Office |
| Use type | Digital signage |
| Intended use | Indoor screen |
| Screen type | Flat Screen |
| Screen Technology | LED - LCD |
| Screen Orientation | Horizontal |
| Screen Size | Less than 25 inches |
| Screen Size | 22'' |
| Resolution | Full HD (1080p) |
| Brightness | 200 - 300 cd/m² |
| Other Features | Screen |
| VESA standard | 75 × 75 mm |
