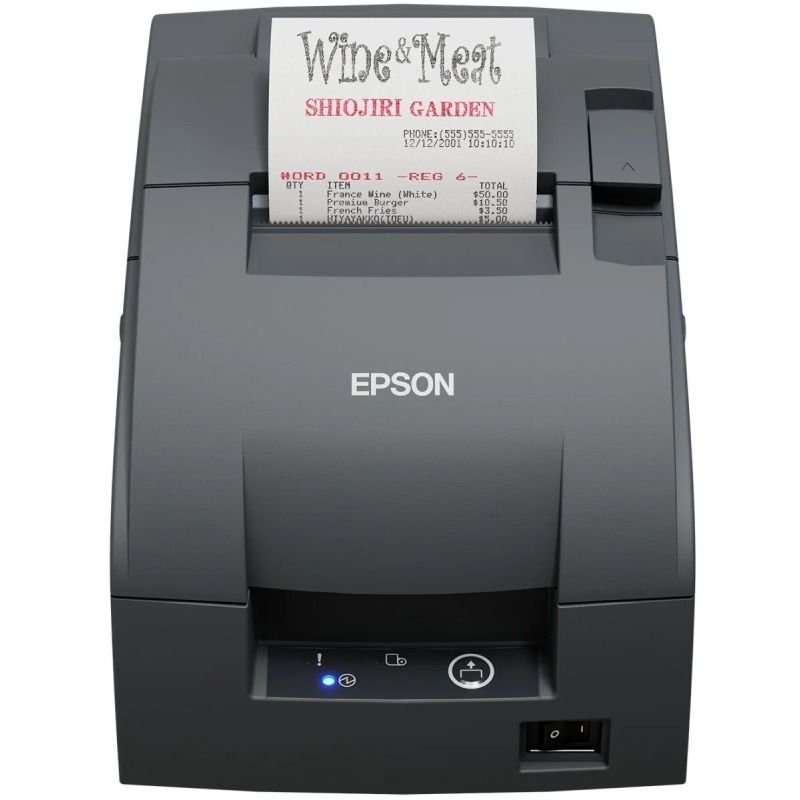

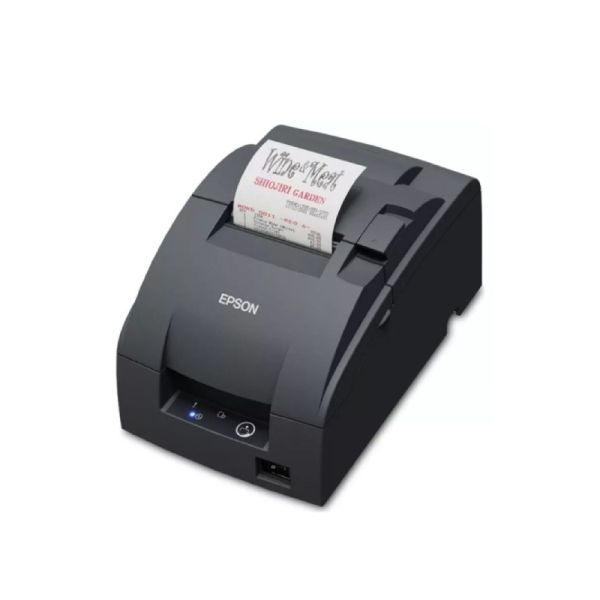

Epson TM-U220IIB RS232 Dot Matrix Printer
Internal ref: EPTM2202B // Manufacturer part #: C31CL27102
POS dot matrix printer with RS-232 serial connection, three roll widths, automatic cutter and end-of-paper sensor.
NEW
£288.99
£346.79 Incl. VAT
1 year of manufacturer warranty Subject to manufacturer conditions
Pay in 3 interest-free payments of Show more
Key features
- Dot matrix printing: needle-based technology for printing receipts in a POS environment
- RS-232 serial connection: wired interface
- Three paper sizes: accepts rolls 76, 69.5 and 57.5 mm wide
- Automatic cutting: built-in cutter with partial cut to facilitate receipt separation
- Print head rated for 150 million characters and paper cutter rated for up to 800,000 cuts
- Paper management: end-of-roll sensor for easy monitoring of consumables
- Connection to cash drawer: integration into a point-of-sale system
In the box
- 1 x Epson TM-U220IIB printer
- Documentation
Product description
Epson TM-U220IIB – Reliable dot matrix printing for your point of sale
The Epson TM-U220IIB is a impact dot matrix printer designed for printing receipts in POS environments. Its dot-matrix technology, serial connection and support for multiple paper widths make it a suitable solution for compatible professional checkout systems.
Dot-matrix technology for POS applications
Unlike thermal printers, the TM-U220IIB uses impact dot matrix printing technology. It achieves a speed of 4.70 lines per second in a 40-column configuration at 16 characters per inch.
Its extended character set allows it to cater for various international operating environments, and the ePOS protocol is also supported.
Three roll widths for greater flexibility
The printer accepts three paper formats to suit the requirements of the point of sale. You can use rolls with a width of 76 mm, 69.5 mm or 57.5 mm, each with a maximum diameter of 83 mm.
This flexibility allows you to select a receipt format suited to the available space and the information your business needs to print.
Serial connection for existing infrastructure
This configuration features an RS-232 interface for connection to the POS system. It is therefore suitable for checkout terminals and professional equipment using a serial connection.
A dedicated interface for opening the cash drawer also allows the printer to be integrated into a complete point-of-sale system.
Automatic cutting and convenient paper management
The built-in automatic cutter performs a partial cut on receipts to make them easier to retrieve after printing. Its stated service life is 800,000 cuts.
The model also features a end-of-roll sensor, which is useful for identifying when the consumable needs replacing.
Reliability suited to professional use
The print head is designed to achieve a service life of 150 million characters. Epson also specifies an average print volume of 18 million lines and an average uptime of 180,000 hours.
The printer measures 160 x 248 x 139 mm and weighs 2.5 kg. It is powered by 24 V via a mains adapter.
Use cases and compatibility
The Epson TM-U220IIB is suitable for cash registers and POS systems using an RS-232 serial connection. Its dot-matrix technology, three roll widths and cash drawer interface make it easy to integrate into compatible professional set-ups requiring regular receipt printing.
Technical specifications:
| Feature | Value |
|---|---|
| Printing technology | Impact dot matrix |
| Print head technology | Dot matrix |
| Print speed | 4.70 lines/s |
| Speed configuration | 40 columns at 16 cpp |
| Printing protocol | ePOS |
| Paper type | Roll |
| Roll width | 76 ± 0.5 mm |
| Roll width | 69.5 ± 0.5 mm |
| Roll width | 57.5 ± 0.5 mm |
| Maximum roll diameter | 83 mm |
| Interface | RS-232 |
| Cash drawer connection | Yes |
| Buffer memory | 20 KB or 40 bytes |
| Automatic paper cutter | Yes |
| Cut type | Partial cut |
| Paper cutter lifespan | 800,000 cuts |
| End-of-roll sensor | Yes |
| Print head service life | 150 million characters |
| Average print volume | 18,000,000 lines |
| Mean time between failures | 180,000 hours |
| Operating voltage | 24 V |
| Power consumption during printing | Approx. 31 W |
| Standby power consumption | Approximately 2 W |
| Operating noise level | 64 dB(A) |
| Operating humidity | 10% to 90% |
| Dimensions | 160 x 248 x 139 mm |
| Weight | 2.5 kg |
Product Specs.
| Manufacturer part # | C31CL27102 |
|---|---|
| EAN | 8715946732602 |
| Warranty | 1 year |
| Corded or cordless | Corded |
