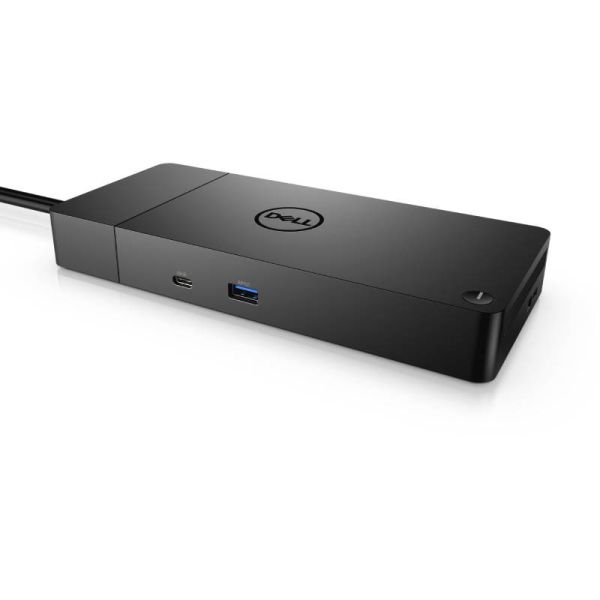

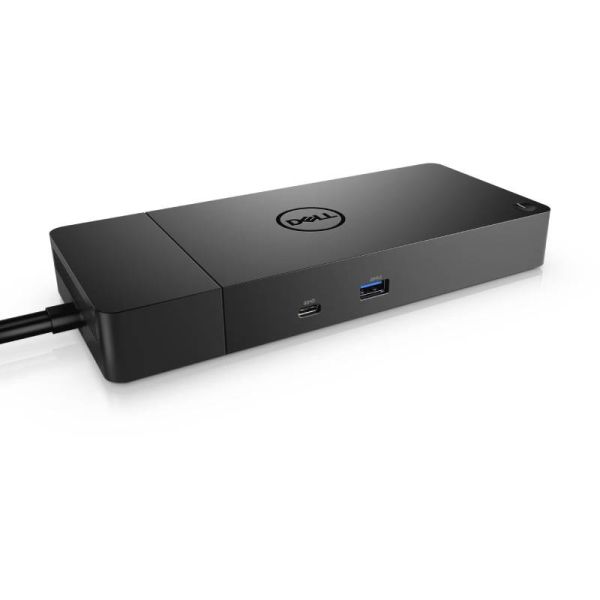

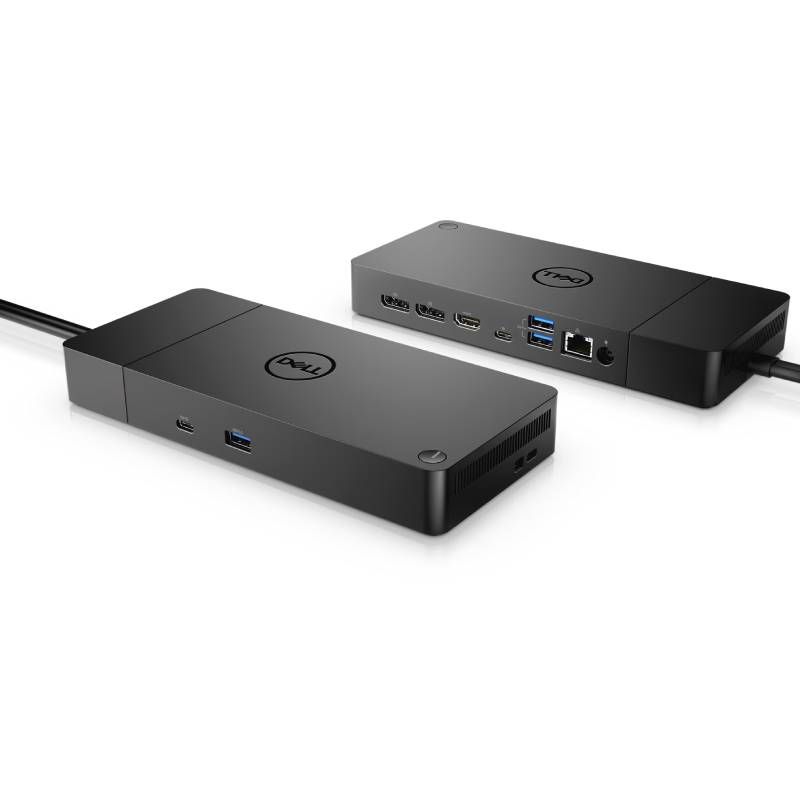

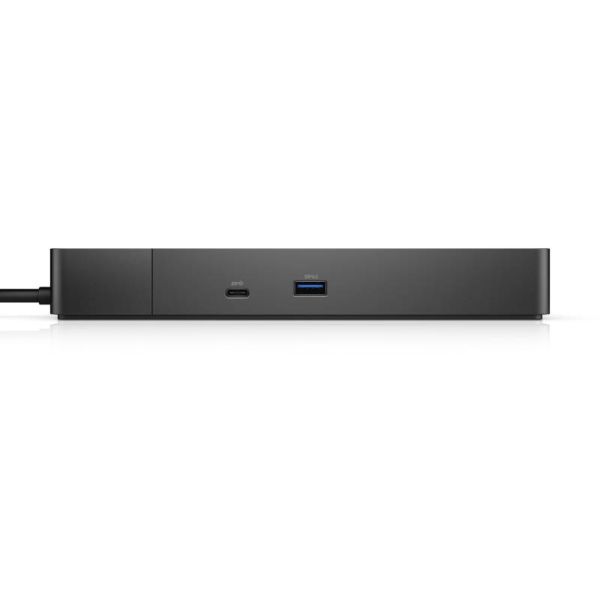

Dell Performance Dock – WD19DCS
Internal ref: DELLWD19DCS // Manufacturer part #: WD19DCS
High-performance, modular dual USB-C docking station designed to maximise productivity in professional environments.
This product is no longer manufactured
To better meet your needs we offer a list of similar products
Product description
Dell Docking Station WD19DCS
The Dell WD19DCS Docking Station is designed to meet the demands of modern workplaces by providing enhanced connectivity and powerful power delivery. With up to 210 W of power, compatible Dell systems can be efficiently powered and charged, while non-Dell systems can receive up to 90 W.
Versatile connectivity:
Two DisplayPort 1.4 ports and one HDMI 2.0 port enable the connection of up to three external displays. A maximum resolution of 5120 x 2880 at 60 Hz is supported for a single display. Three USB-A 3.1 Gen 1 ports and two USB-C 3.1 Gen 2 ports allow fast data transfer and connection of various peripherals. In addition, a Gigabit Ethernet port (RJ-45) ensures stable and high-speed network connections.
Compact and space-saving
With dimensions of 205 x 90 x 29 mm and a weight of 685 g, the WD19DCS is compact and space-efficient. The docking station supports various operating systems, including Windows 10/11, Ubuntu 18.04, and Red Hat Enterprise Linux, making it highly versatile.
Security
For added security, the docking station features slots for Kensington and Noble Wedge locks to protect against theft. Support for features such as Wake-on-LAN, PXE Boot and MAC address passthrough also simplifies network management in enterprise environments.
Technical specifications:
- Power delivery: Up to 210 W for compatible Dell systems, up to 90 W for non-Dell systems

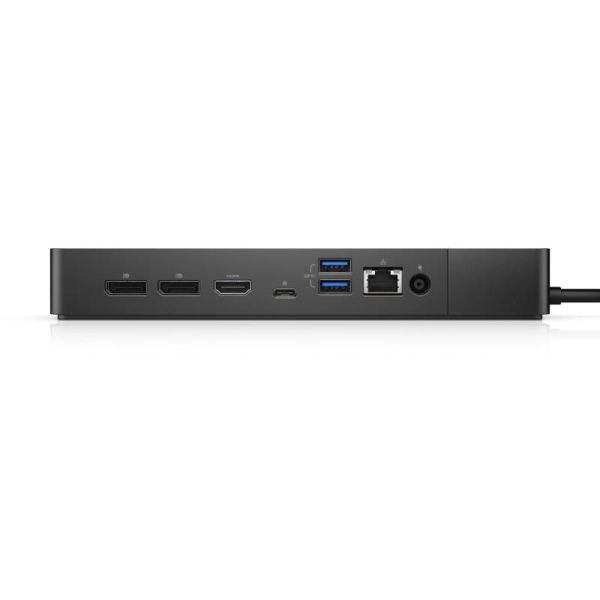

- Ports:
- 2x DisplayPort 1.4
- 1x HDMI 2.0
- 2x USB-C 3.1 Gen 2
- 3x USB-A 3.1 Gen 1
- 1x RJ-45 Gigabit Ethernet
- 1x 3.5 mm combo jack (audio/microphone)
- Maximum resolution: 5120 x 2880 (5K) @ 60 Hz for a single display
- Supported displays:
- 1x 5K @ 60 Hz
- 2x 4K @ 60 Hz
- 3x Full HD or 3x 4K @ 30 Hz
- Network management: Wake-on-LAN, PXE Boot, MAC address passthrough
- Security: Kensington and Noble Wedge lock slots
- Operating system compatibility: Windows 10/11, Ubuntu 18.04, Red Hat Enterprise Linux
- Dimensions: 205 x 90 x 29 mm
- Weight: 685 g
Product Specs.
| Manufacturer part # | WD19DCS |
|---|---|
| EAN | 5397184514009 |
| Warranty | 3 years |
| Type of networking product | Dock / Hub |
