Dell Dock – WD19S 180W

Product description

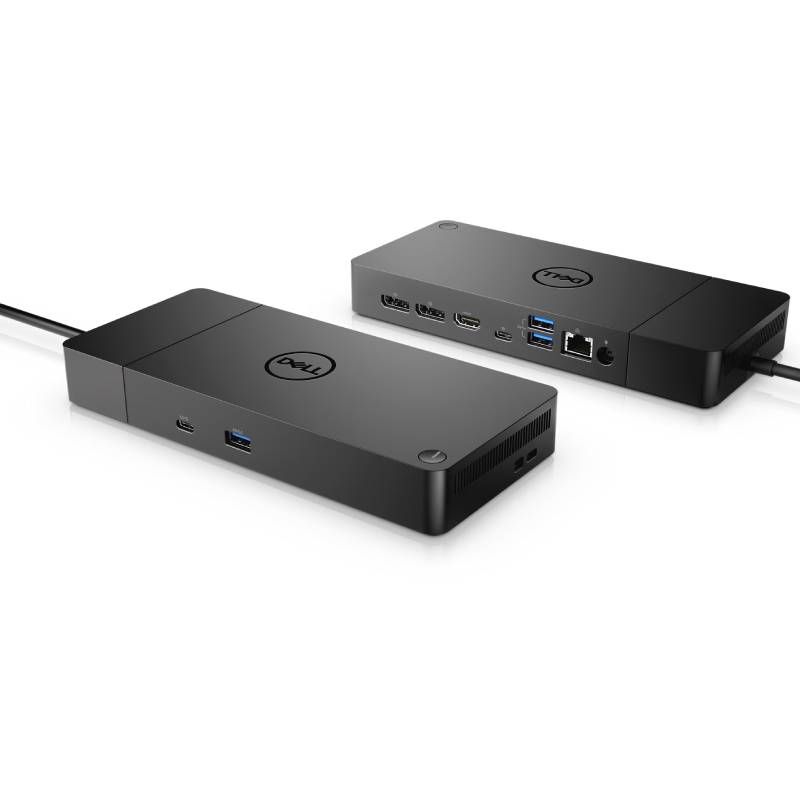

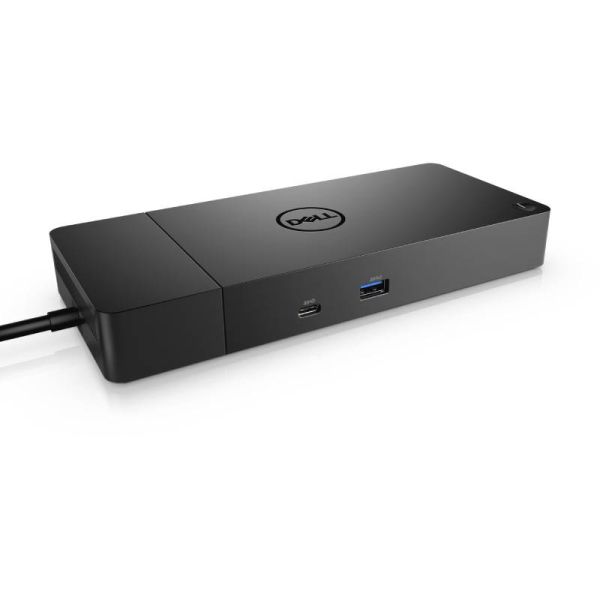

Dell Docking Station WD19S 180W

Advanced docking solution designed to meet the demands of modern workplaces.

Versatile connectivity

The docking station features two DisplayPort 1.4 and one HDMI 2.0b port, allowing the simultaneous use of up to two external displays with 4K resolution. This enhances productivity by providing an extended workspace. Additionally, three USB-A 3.1 Gen 1 ports, two USB-C 3.1 Gen 2 ports, and one USB-C multi-function DisplayPort port are available, making it easy to connect peripherals such as external hard drives, printers, or smartphones. A Gigabit Ethernet port ensures a stable and fast network connection, while a 3.5 mm combo audio jack allows for the connection of headphones or speakers.

Notebook charging function

A standout feature of the dock is its notebook charging capability. With the included 180 W power adapter, the connected notebook can be charged with up to 130 W, ensuring efficient power delivery. This flexibility ensures that various notebook models can be charged effectively.

Support for essential network features

The docking station also supports essential network features such as Wake-on-LAN, PXE Boot, and MAC address passthrough, making it particularly appealing for IT departments in enterprise environments. With dimensions of 205 x 90 x 29 mm and a weight of 585 g, the dock is compact and lightweight, allowing it to be placed on a desk without taking up much space. VESA mounting options offer additional placement flexibility.

Easy installation

The dock is user-friendly and requires no additional drivers. It is compatible with a wide range of Dell notebooks as well as other laptops that support the USB-C standard. For physical security, the dock supports VESA mounting options to help prevent theft.

Technical specifications:

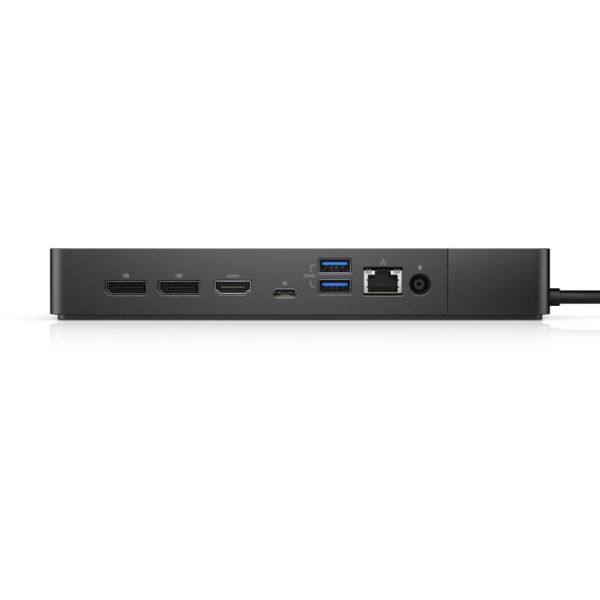

• Ports:

  • 2x DisplayPort 1.4
  • 1x HDMI 2.0b
  • 1x USB-C 3.1 Gen 2 (data & DisplayPort)
  • 1x USB-C 3.1 Gen 2 (data only)
  • 3x USB-A 3.1 Gen 1
  • 2x USB-A 2.0
  • 1x Gigabit Ethernet (RJ-45)
  • 1x 3.5 mm combo audio jack

• Supported displays:

  • Up to two external monitors
  • Maximum resolution:
    • Single display: 5K at 60 Hz
    • Dual displays: 4K at 60 Hz

• Charging:

  • USB-C Power Delivery (PD)
  • Notebook charging up to 130 W (Dell notebooks only)
  • Notebook charging up to 90 W (other USB-C devices)

• Network & management:

  • Gigabit Ethernet for stable wired connections
  • Wake-on-LAN (WoL)
  • PXE Boot support
  • MAC address passthrough

• Security & mounting:

  • Supports VESA mounting options
  • Kensington lock slot for theft protection

• Dimensions and weight:

  • Dimensions: 205 x 90 x 29 mm
  • Weight: approx. 585 g

• Compatibility:

  • Dell notebooks with USB-C and Thunderbolt 3/4
  • Other USB-C-enabled laptops (with limited functionality)
  • Operating systems: Windows 10/11, partially compatible with macOS
