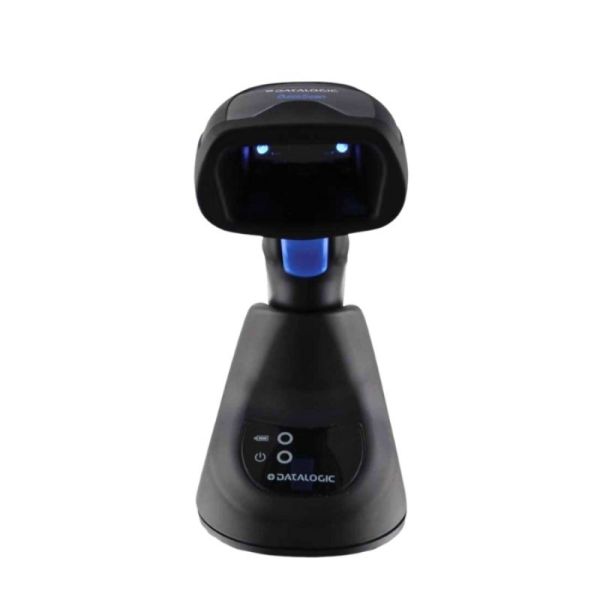

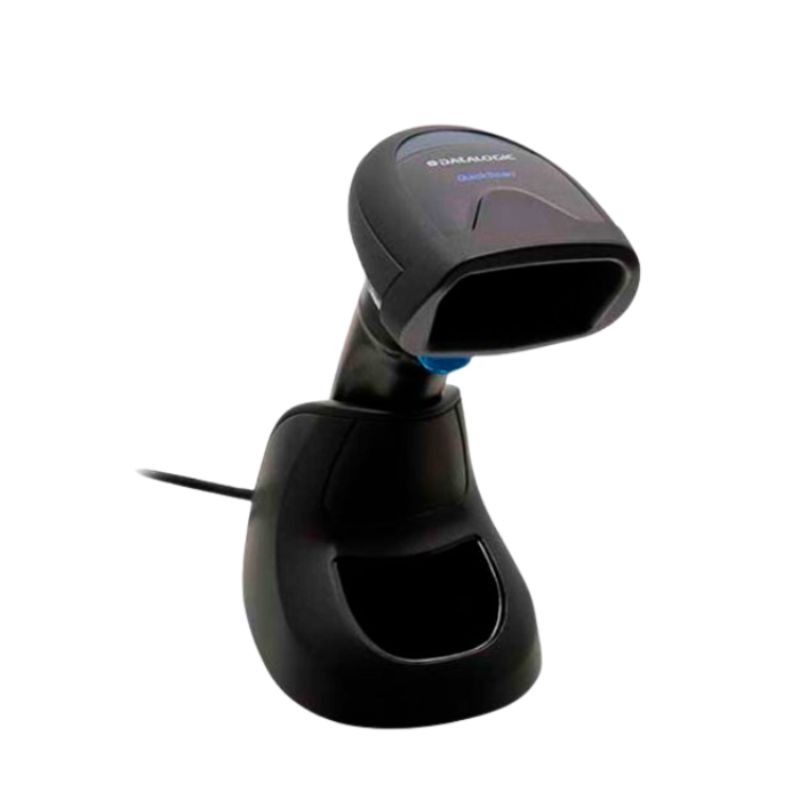

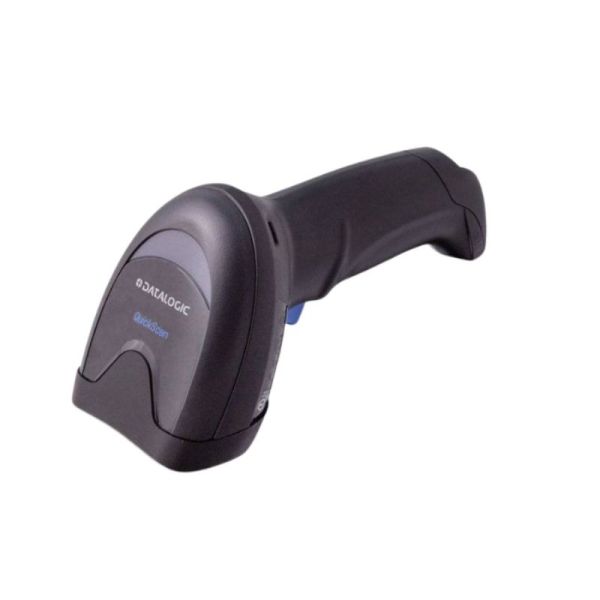

Datalogic QuickScan QBT2500 Bluetooth 1D/2D Scanner
Internal ref: DATAQBT2500 // Manufacturer part #: QBT2500-BK-BTK1
Wireless 1D and 2D scanner with Bluetooth, omnidirectional scanning and Green Spot to streamline payments, stock-taking and professional data capture.
Key features
- 1D/2D scanning: captures linear barcodes, QR codes, Data Matrix, PDF417, etc.
- Bluetooth wireless connectivity: greater freedom of movement
- Omnidirectional scanning: makes data capture easier without having to position the code precisely
- Datalogic Green Spot: immediate visual confirmation of successful scans
- Screen scanning: suitable for codes displayed on smartphones
- IP52 protection rating
In the box
- 1x Datalogic QuickScan QBT2500 scanner
- 1x Base station/charger
- 1x USB cable
Product description
Datalogic QuickScan QBT2500 - Wireless scanning of 1D and 2D codes
The Datalogic QuickScan QBT2500 is a wireless 1D and 2D barcode scanner designed for professional operations requiring speed, mobility and ease of use. Its imaging technology enables it to capture a wide variety of symbologies and work with codes that are either printed or displayed on screens.
1D and 2D scanning for various applications
The QuickScan 2500 can scan 1D, 2D, postal, composite and stacked codes. Compatible symbologies include QR Code, Micro QR, Data Matrix, Aztec, MaxiCode, PDF417 and GS1 DataBar, amongst others.
Omnidirectional scanning reduces the need to position the code in a specific orientation in front of the scanner. This facilitates repetitive operations at point-of-sale tills and other data capture stations.
Ready for on-screen codes
The scanner is designed to work with both printed codes and codes displayed on mobile devices. It is particularly useful for operations involving digital loyalty cards, electronic vouchers and tickets stored on smartphones.
Visual confirmation with Datalogic Green Spot
Datalogic’s Green Spot technology provides visual confirmation of the code when a scan is successfully completed. This is complemented by an LED indicator and a configurable beeper to provide immediate feedback to the operator.
Comfortable scanning during repetitive tasks
The soft red lighting helps maintain a comfortable scanning experience during shifts involving numerous transactions. The QuickScan 2500 family also incorporates Datalogic’s Motionix technology, designed to facilitate transitions between compatible scanning modes.
Protection for day-to-day use
The QuickScan 2500 features IP52 protection against dust and water. The range is designed to withstand repeated drops from a height of 1.5 m onto concrete and offers ESD protection of up to 16 kV for air discharge.
It can be used at temperatures between 0 and 50 °C and withstands ambient light levels of up to 110,000 lux, making it suitable for a range of commercial and professional environments.
Use cases and compatibility
The Datalogic QuickScan QBT2500 is aimed at retail, points of sale, loyalty schemes, commercial services, hospitality, administration, healthcare and light industry. Its ability to read 1D and 2D barcodes means it can be used in settings where traditional labels and digital codes coexist.
Technical specifications:
| Feature | Value |
|---|---|
| Scanner type | Wireless |
| Supported barcodes | 1D and 2D |
| Scanning type | Omnidirectional |
| 2D codes | Aztec, China Han Xin, Data Matrix, MaxiCode, Micro QR, QR and DotCode |
| Stacked codes | Stacked PDF417, MicroPDF417 and GS1 DataBar |
| Scan confirmation | Datalogic Green Spot, LED and beeper |
| Motion tolerance | 30 IPS |
| Minimum print contrast | 15% |
| Maximum 1D resolution | 0.077 mm / 3 mils |
| Maximum Data Matrix resolution | 0.127 mm / 5 mils |
| Maximum QR resolution | 0.17 mm / 6.7 mils |
| Ambient light | 0 to 110,000 lux |
| Protection | IP52 |
| Drop resistance | Repeated drops from 1.5 m onto concrete |
| ESD protection | 16 kV air discharge |
| Non-condensing humidity | 0 to 95 per cent |
| Operating temperature | 0 to 50 °C |
| Storage temperature | -40 to 70 °C |
| Colour | Black |
Files
Datalogic QuickScan QBT2500 - Datasheet
Product Specs.
| Manufacturer part # | QBT2500-BK-BTK1 |
|---|---|
| EAN | 5704174989875 |
| Type of barcode scanner | Wireless |
| Reader | 1D & 2D |
| IP Rating | IP52 |
| Rugged | Not Sturdy |
