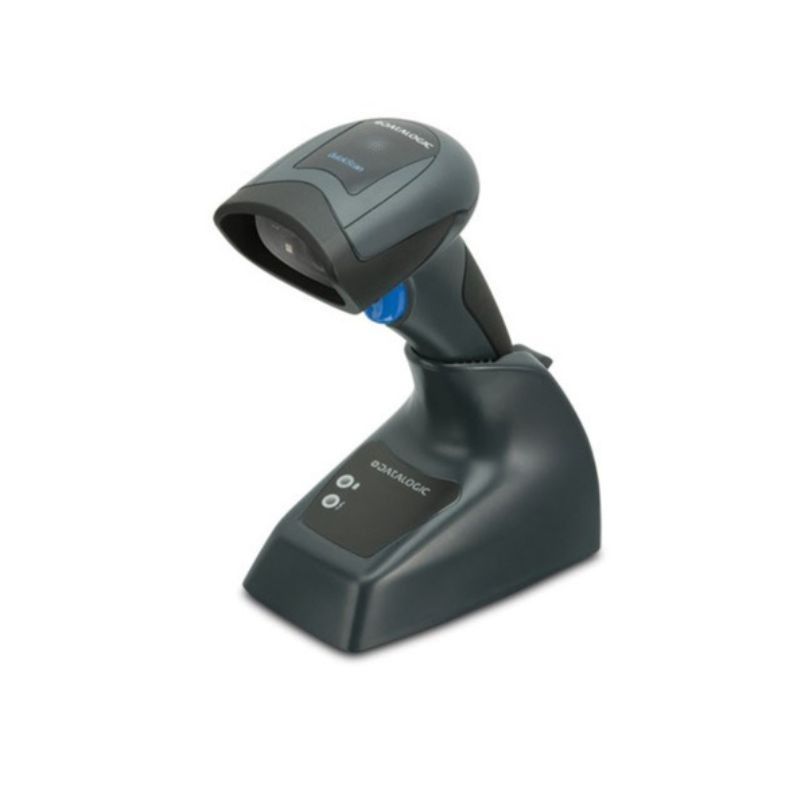

Datalogic QuickScan QBT2131 Bluetooth 1D Scanner
Internal ref: DATAQBT2131 // Manufacturer part #: QBT2131-BK-BTK1
Wireless 1D scanner with Bluetooth 3.0, a range of up to 25 m and a long-lasting battery, for retail, stock management and goods receipt.
Key features
- Fast 1D scanning: up to 400 scans per second
- Bluetooth 3.0 connectivity: wireless communication at 2.4 GHz
- Range of up to 25 m: greater freedom of movement
- Compatible with iOS and Android: connection via the Bluetooth HID profile
- Up to 30,000 scans per charge: replaceable 1,400 mAh Li-ion battery
- Visual scan confirmation: integrated Datalogic Green Spot technology
- Robust: IP42-certified and resistant to repeated drops from a height of 1.5 m
In the box
- 1x Datalogic QuickScan I QBT2131 scanner
Product description
Datalogic QuickScan I QBT2131 - Wireless 1D scanning via Bluetooth
The Datalogic QuickScan I QBT2131 is a wireless 1D barcode scanner designed to provide mobility and speed in data capture operations. Its linear imager system offers a speed of up to 400 scans per second and a wide, clearly visible scan line.
Bluetooth connectivity for greater freedom of movement
The QBT2131 features Bluetooth 3.0 Class 2 and operates on the 2.4 GHz band. It can communicate with its base station or directly with Bluetooth-compatible devices.
It supports the HID and SPP profiles, facilitating integration with computers, terminals and certain mobile devices. The manufacturer states compatibility with iOS and Android devices via Bluetooth HID.
Wireless range of up to 25 metres
When used with the base station, the scanner offers a radio range of up to 25 m in open space. This allows for greater flexibility when working at points of sale, goods reception areas, warehouses and during stock-taking.
Efficient 1D code reading
The QuickScan I QBT2131 is optimised for reading 1D linear codes, including GS1 DataBar codes and certain stacked and composite codes. Its 56° ± 2° scan angle and extended depth of field help to capture long codes more easily.
The maximum resolution is 0.102 mm / 4 mils, whilst the reading distance can reach up to 70 cm with 20-mil codes, depending on print quality and ambient light conditions.
Scan confirmation with Green Spot
Datalogic Green Spot technology projects a visual confirmation when a scan is successful. The device also features an audible beep, a ‘scan successful’ LED and transmission confirmation.
Replaceable battery for intensive use
The 1,400 mAh lithium-ion battery provides over 30,000 scans per charge. The indicated charging time is approximately 4 hours using an external 12 V DC power supply.
The battery can be replaced and the design allows the charging contacts to be replaced simultaneously, facilitating the maintenance of the scanner throughout its service life.
Protection for professional environments
The device features IP42 protection and withstands repeated drops from a height of 1.5 m onto concrete. Its operating range is 0 to 50 °C and it can handle ambient lighting of up to 120,000 lux.
Use cases and compatibility
The QBT2131 is designed for applications in retail, point of sale, shelf replenishment, goods receiving, stocktaking, banking, public administration and utilities. Its Bluetooth connectivity allows it to be integrated into environments with compatible PCs, terminals and mobile devices.
Technical specifications:
| Feature | Value |
|---|---|
| Scanner type | Wireless |
| Code type | 1D |
| Scanning technology | Linear imager |
| Reading speed | Up to 400 scans/s |
| Maximum resolution | 0.102 mm / 4 mils |
| Reading field | 56° ± 2° |
| Light source | Red LED, 610 to 650 nm |
| Minimum print contrast | 25 per cent |
| Wireless technology | Bluetooth 3.0 Class 2 |
| Frequency | 2.4 GHz |
| Bluetooth profiles | HID and SPP |
| Wireless range | Up to 25 m in open space |
| Batch mode | Over 500 barcodes |
| Interfaces | Keyboard Wedge / IBM OEM / RS-232 / USB |
| Battery technology | Lithium-ion |
| Battery capacity | 1400 mAh |
| Operating time | Over 30,000 scans per charge |
| Charging time | 4 hours at 12 V DC |
| Protection | IP42 |
| Drop resistance | Repeated drops from 1.5 m onto concrete |
| ESD protection | 16 kV air discharge |
| Ambient light | 0 to 120,000 lux |
| Non-condensing humidity | Up to 90 per cent |
| Operating temperature | 0 to 50 °C |
| Storage temperature | –40 to 70 °C |
| Dimensions | 163 x 91 x 41 mm |
| Scanner weight | 190 g |
| Base/charger weight | 221 g |
| Colour | Black |
Files
Datalogic QuickScan QBT2131 - Datasheet
Product Specs.
| Manufacturer part # | QBT2131-BK-BTK1 |
|---|---|
| EAN | 5712505605318 |
| Type of barcode scanner | Wireless |
| Reader | 1D |
| Rugged | Not Sturdy |
