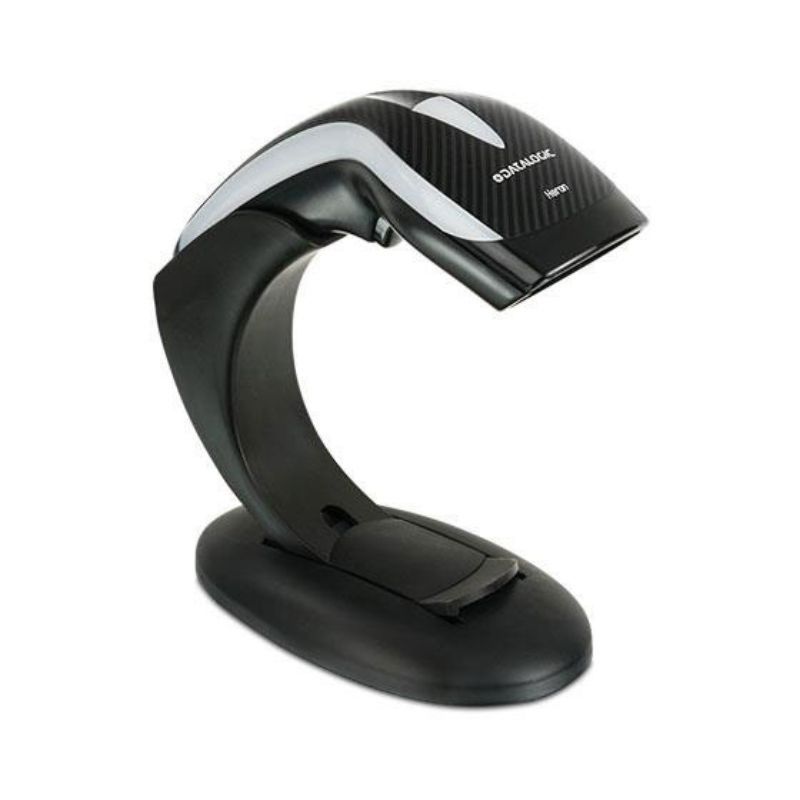

Datalogic Heron HD3130 1D USB Scanner + stand

Product description

Datalogic Heron HD3130 - 1D scanning and distinctive design for POS checkouts

The Datalogic Heron HD3130 is a wired 1D linear imager scanner designed specifically for the retail sector and checkout counters. The Heron range combines professional scanning performance with a design intended to blend into commercial environments, whilst also offering various options for visual and audio customisation.

This configuration is supplied as a black USB kit and includes the scanner, USB cable and stand. The wired connection is suitable for POS terminals requiring a stable connection and a scanner that is always available, without the need for battery management or recharging.

1D Linear Imager with CCD sensor

The Heron HD3100 platform utilises a 2,500-pixel solid-state CCD sensor for barcode capture. It automatically recognises the main standard 1D codes, including GS1 DataBar linear codes.

The scanner also supports China Post and stacked symbologies from the GS1 DataBar family, including GS1 DataBar Expanded Stacked, GS1 DataBar Stacked and GS1 DataBar Stacked Omnidirectional. It is therefore designed for professional applications focused primarily on scanning linear barcodes.

Up to 270 scans per second

The maximum speed reaches 270 scans per second, enabling a rapid scanning flow to be maintained during day-to-day operations at the point of sale. The maximum stated resolution is 0.100 mm, equivalent to 4 mil.

The minimum print contrast ratio is 15 per cent. These features enable the scanner to handle barcodes of different sizes and densities in standard POS applications.

Green Spot for immediate read confirmation

Heron incorporates the patented Datalogic Green Spot technology, used both to provide read confirmation and to aid in code alignment. The visual confirmation allows the operator to quickly verify that the barcode has been scanned.

The Green Spot is complemented by a programmable audible signal and ‘good read’ LEDs on the top and sides of the scanner. The presence of different types of feedback is particularly useful at checkout counters with a continuous flow of transactions.

Multi-coloured LEDs and customisable audio feedback

One of the distinctive features of the Heron range is its focus on the in-store experience. The scanner features colour-changing LEDs on the sides and top and a polyphonic speaker that allows for different audio feedback options.

Datalogic’s documentation also outlines options for customisation with a logo, top cover and visual or audio feedback. These options allow businesses to further adapt the device to their visual identity in installations requiring customised configurations.

Automatic switching from manual to presentation mode

The scanner supports automatic switching from manual to presentation mode. This function allows the scanner’s behaviour to be adapted to the mode of use without complicating the staff member’s normal operations.

In this way, the device can be used as a handheld scanner when it is necessary to get close to the code, or used at a workstation with the stand provided in the kit.

Depth of field up to 60 cm

The depth of field varies depending on the print resolution, contrast, lighting, barcode length and reading angle. With codes of 5 mil, the approximate range is between 5 and 15 cm.

With 10 mil codes, the reading distance extends to 35 cm, whilst with 13 mil codes it reaches 40 cm. With 20 mil barcodes, the stated reading range extends from 2 to 60 cm, offering good flexibility for standard checkout operations.

Operates even in very brightly lit environments

The scanner supports ambient light levels ranging from 0 to 100,000 lux. This range makes it suitable for use in retail outlets with varying lighting conditions.

The LED light source is classified as IEC 62471 Exempt Class, whilst the product complies with the European Union and Chinese RoHS regulations as specified by the manufacturer.

Use cases and compatibility

The Datalogic Heron HD3130 is primarily designed for the retail sector, with a particular focus on clothing shops, specialist chains and POS terminals where design, personalisation and the quality of the checkout experience play an important role.

This configuration is a wired USB kit comprising a black scanner, USB cable and stand. The Heron HD3100 platform supports USB, RS-232 and Keyboard Wedge; for this specific kit, the connection provided is USB.
